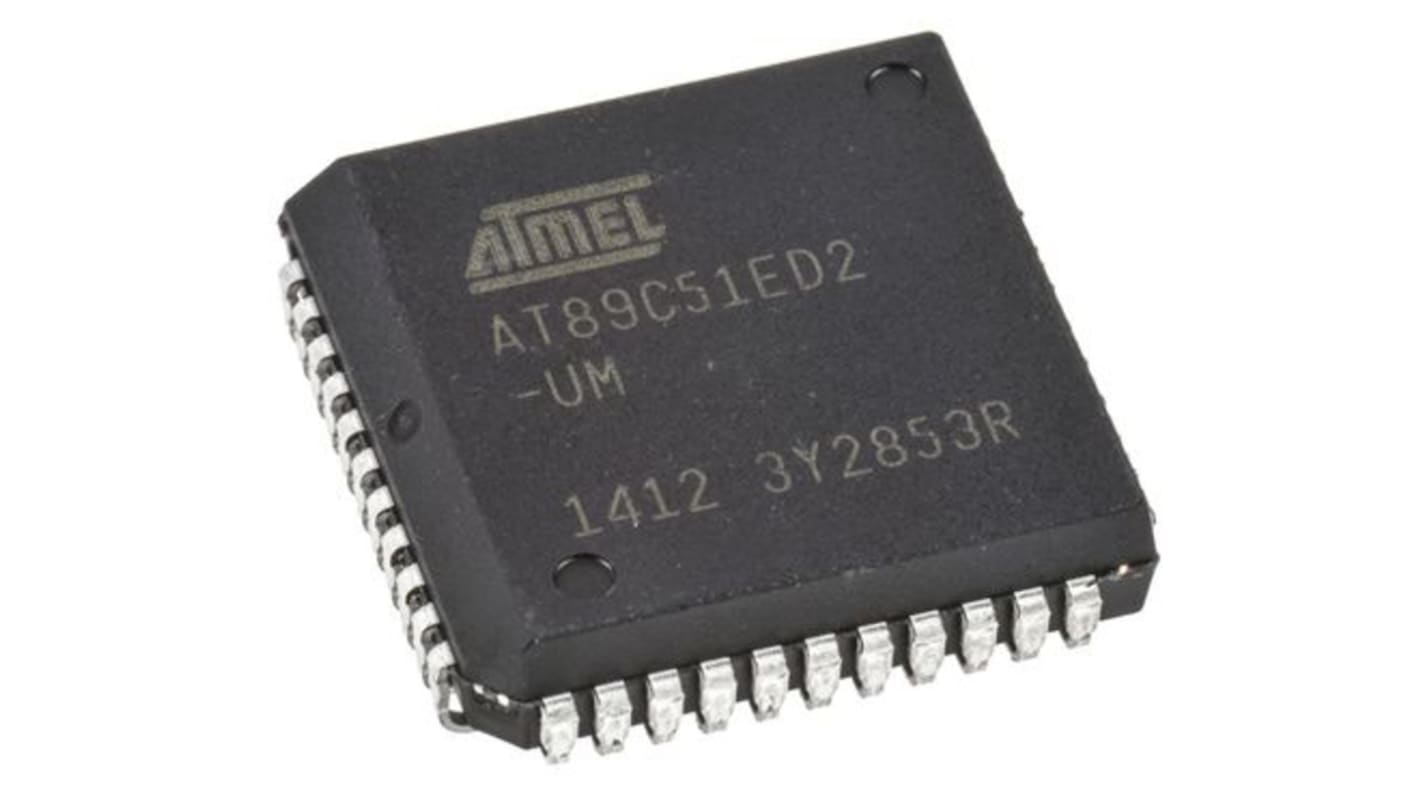

Microchip AT89C51ED2-SLSUM, 8bit 8051 Microcontroller, AT89, 40 MHz, 60 MHz, 64 kB Flash, 44-Pin PLCC
- RS Stock No.:
- 127-6622
- Mfr. Part No.:
- AT89C51ED2-SLSUM
- Brand:
- Microchip
135 In stock - FREE next working day delivery available
Added
Price Each
£8.25
(exc. VAT)
£9.90
(inc. VAT)
Units | Per unit |
1 - 24 | £8.25 |
25 - 99 | £8.00 |
100 + | £7.72 |
- RS Stock No.:
- 127-6622
- Mfr. Part No.:
- AT89C51ED2-SLSUM
- Brand:
- Microchip
Technical Reference
Legislation and Compliance
Product Details
8051 Architecture Flash ISP (In-System Programmable) Microcontrollers, Atmel
Atmel offers Flash 8051 microcontrollers featuring In-System Programming (ISP) that they can be programmed with the appropriate software, either in parallel or in serial mode.
8051 Architecture Microcontrollers
Atmel's 8-bit microcontrollers (MCUs) based on the 8051 instruction set, combine proven technology with the latest features and functionality, with all featuring advanced flash memory.
Device Family
Single Cycle Core
Flash ISP (In-System Programmable)
Flash (Reprogrammable)
CAN Networking MCUs
USB MCUs
ROMless
Flash ISP (In-System Programmable)
Flash (Reprogrammable)
CAN Networking MCUs
USB MCUs
ROMless
Specifications
Attribute | Value |
---|---|
Family Name | AT89 |
Package Type | PLCC |
Mounting Type | Surface Mount |
Pin Count | 44 |
Device Core | 8051 |
Data Bus Width | 8bit |
Program Memory Size | 64 kB |
Maximum Frequency | 40 MHz, 60 MHz |
RAM Size | 2.048 kB |
USB Channels | 0 |
Number of PWM Units | 1 x 8 bit |
Number of SPI Channels | 1 |
Number of UART Channels | 1 |
Typical Operating Supply Voltage | 2.7 → 5.5 V |
Number of CAN Channels | 0 |
Maximum Number of Ethernet Channels | 0 |
Number of Ethernet Channels | 0 |
Minimum Operating Temperature | -40 °C |
Instruction Set Architecture | CISC |
Number of ADC Units | 0 |
Maximum Operating Temperature | +85 °C |
Length | 16.66mm |
ADCs | 0 |
Height | 4.06mm |
Width | 16.66mm |
Dimensions | 16.66 x 16.66 x 4.06mm |
Pulse Width Modulation | 1 (5 x 8 bit) |
Program Memory Type | Flash |
