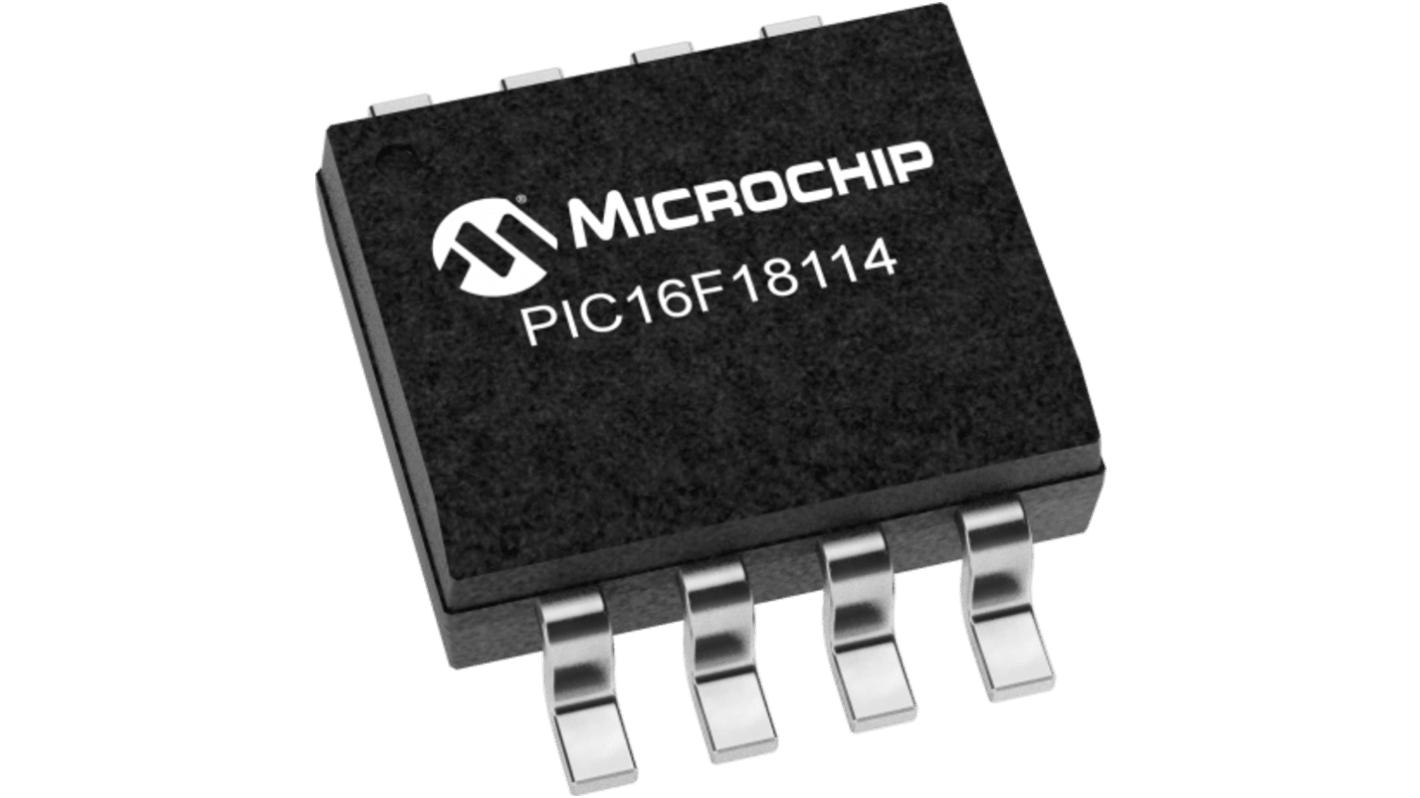

Microchip PIC16F18114-I/SN, 8 bit PIC16F, PIC16F181 8 Bit Microcontroller, 32 MHz, 7kB FLASH, 8-Pin SOIC

View all Microcontrollers

Subtotal (1 box of 1200 units)*

£588.00

(exc. VAT)

£708.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 03 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Box*
1200 +£0.49£588.00

*price indicative

RS Stock No.:
585-209
Mfr. Part No.:
PIC16F18114-I/SN
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Series

PIC16F181

Product Type

8 Bit Microcontroller

Package Type

SOIC

Mount Type

Surface

Pin Count

8

Device Core

PIC16F

Data Bus Width

8bit

Program Memory Size

7kB

Interface Type

CWG, EUSART, I2C/SPI, NCO

Maximum Clock Frequency

32MHz

RAM Size

2048bit

Maximum Supply Voltage

5.5V

Analogue Comparators

2

Minimum Operating Temperature

-40°C

DACs

8 bit

Maximum Expanded Memory Size

7kB

Number of Programmable I/Os

35

Maximum Power Dissipation Pd

800mW

Maximum Operating Temperature

125°C

Width

6 mm

Height

1.75mm

Standards/Approvals

RoHS

Length

4.9mm

Minimum Supply Voltage

1.8V

Number of Timers

3

Automotive Standard

No

ADCs

12 bit

Program Memory Type

FLASH

Instruction Set Architecture

C Compiler Optimised RISC

COO (Country of Origin):
TH
The Microchip Microcontroller has a suite of analog peripherals that enables precision sensor applications. It includes a 12-bit differential Analog-to-Digital Converter with Computation (ADCC), two 8-bit Digital-to-Analog Converters (DAC), up to four 16-bit Pulse-Width Modulation (PWM) peripherals, and many more waveform control and communication peripherals. This small form factor, feature-rich device is well suited for low-cost, energy-efficient analog sensor applications with higher resolution requirements.

Flash Program Memory with Self Read and Write Capability

extreme Low Power

IDLE and DOZE low power modes

Peripheral Module Disable

Peripheral Pin Select

Flash CRC

7Kb Program Flash memory

512 Data SRAM
