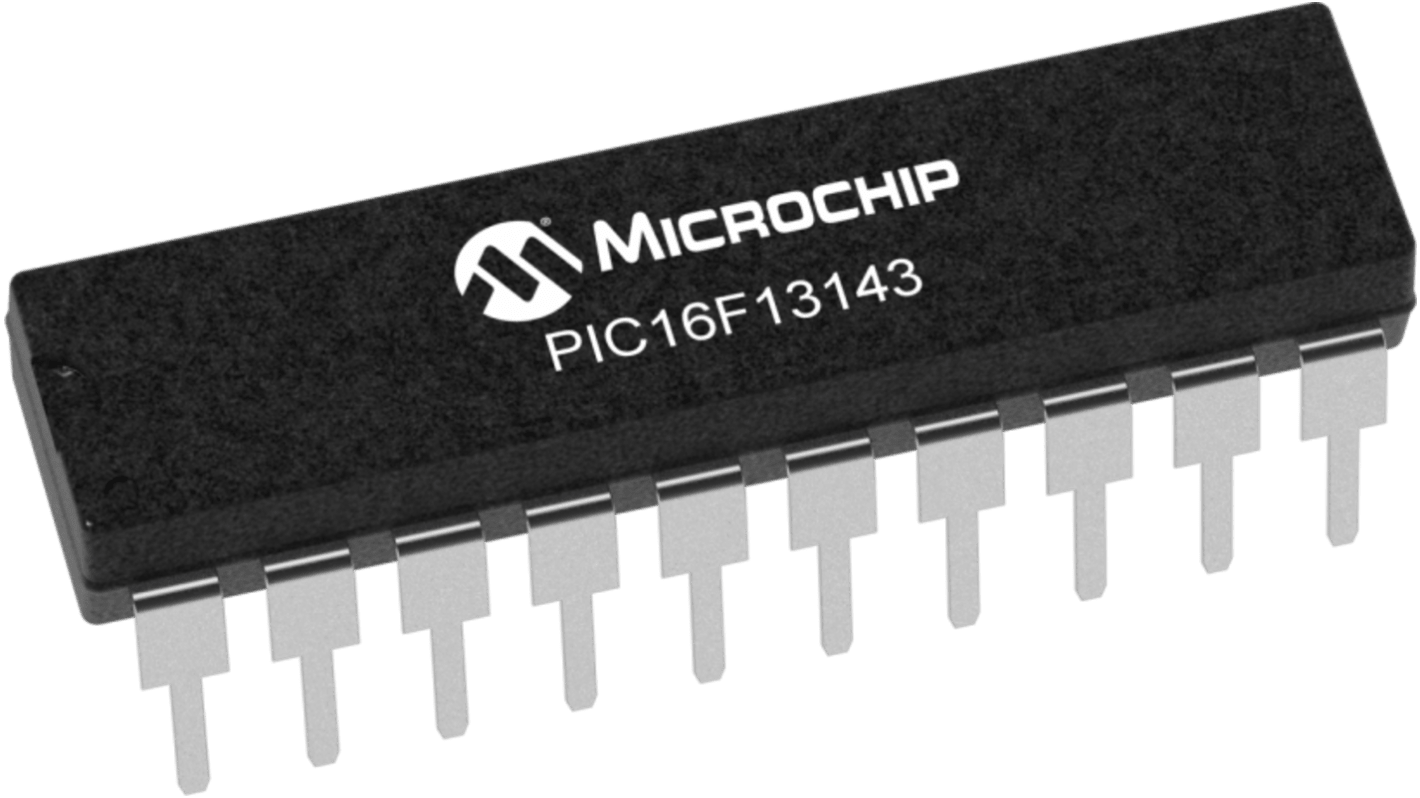

Microchip PIC16F13143-E/P PIC16F, PIC16F13143 8 Bit Microcontroller, 32 MHz, 3.5kB FLASH, 20-Pin PDIP

View all Microcontrollers

Subtotal (1 box of 440 units)*

£583.44

(exc. VAT)

£700.04

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 16 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Box*
440 +£1.326£583.44

*price indicative

RS Stock No.:
584-971
Mfr. Part No.:
PIC16F13143-E/P
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Product Type

8 Bit Microcontroller

Series

PIC16F13143

Package Type

PDIP

Mount Type

Through Hole

Pin Count

20

Device Core

PIC16F

Interface Type

SPI

Program Memory Size

3.5kB

Maximum Clock Frequency

32MHz

Maximum Supply Voltage

5.5V

Maximum Power Dissipation Pd

800mW

Number of Programmable I/Os

18

DACs

1

Minimum Operating Temperature

-40°C

Maximum Expanded Memory Size

3.5kB

Maximum Operating Temperature

125°C

Length

0.4in

Width

0.28 in

Standards/Approvals

RoHS

Height

0.21in

Minimum Supply Voltage

1.8V

Automotive Standard

No

ADCs

10 Bit

Program Memory Type

FLASH

Number of Timers

1/1

COO (Country of Origin):
TH
The Microchip Microcontroller introduces the Configurable Logic Block (CLB) peripheral, enabling users to incorporate hardware-based custom logic into their applications. The CLB is comprised of 32 individual logic elements. Each logic element’s Look Up Table (LUT) based design offers vast customization options, while CPU-independent operation improves response time and reduces power consumption. Core features include a C compiler optimized RISC architecture, an operating speed of DC-32 MHz clock input, a minimum instruction time of 125 ns, and a 16-level deep hardware stack.

Low Current Power on Reset

Configurable Power up Timer

Brown out Reset

Low Power Brown out Reset

Windowed Watchdog Timer

Programmable Code Protection and Write Protection
