- RS Stock No.:
- 151-3008
- Mfr. Part No.:
- SPC56EL70L5DISP
- Brand:
- STMicroelectronics
Available to back order for despatch 25/09/2024
Added
Price Each
£148.30
(exc. VAT)
£177.96
(inc. VAT)
Units | Per unit |
1 - 1 | £148.30 |
2 - 4 | £144.50 |
5 + | £140.89 |
- RS Stock No.:
- 151-3008
- Mfr. Part No.:
- SPC56EL70L5DISP
- Brand:
- STMicroelectronics
Technical Reference
Legislation and Compliance
Product Details

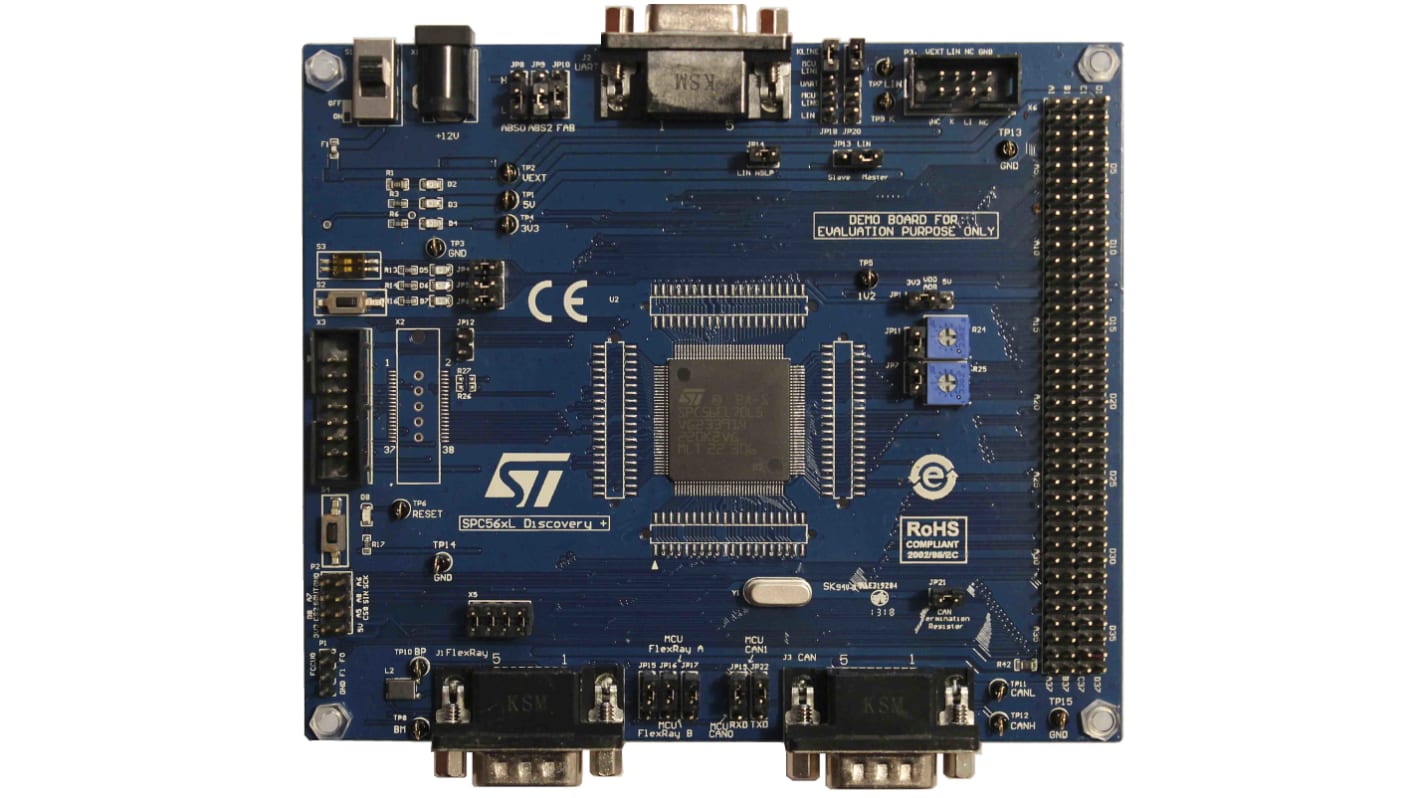

The SPC56xL Discovery+ kit helps you to discover SPC56L line Power Architecture®Micro controllers with full access to CPUs, I/O signals and peripherals such as CAN, UART, Flex Ray, JTAG, K-Line, LIN at budget price. Free ready-to-run application firmware examples are available on www.st.com/SPC56Ldiscovery and inside SPC5Studio (www.st.com/spc5studio) to support quick evaluation and development.
Single 12 VDC external power supply input
JTAG interface (7 x 2 male 100 mil connector)
Two Flex Ray channels with jumper enable and DB9 male connector.
Two CAN channels with jumper enable and DB9 male connector
K-Line interface.
Two LIN interfaces (HW configurable)
Two potentiometers for analog voltage input
Three user LEDs
JTAG interface (7 x 2 male 100 mil connector)
Two Flex Ray channels with jumper enable and DB9 male connector.
Two CAN channels with jumper enable and DB9 male connector
K-Line interface.
Two LIN interfaces (HW configurable)
Two potentiometers for analog voltage input
Three user LEDs
Specifications
Attribute | Value |
---|---|
Classification | Evaluation Board |
Kit Name | Discovery |
Technology | MCU |
Device Core | MCU |
Processor Family Name | SPC56L |
Processor Part Number | SPC56EL70L5 |
Processor Type | MCU |
