- RS Stock No.:
- 228-3019
- Mfr. Part No.:
- SPC58NH-DISP
- Brand:
- STMicroelectronics
3 In stock - FREE next working day delivery available
Added
Price Each
£696.66
(exc. VAT)
£835.99
(inc. VAT)
Units | Per unit |
1 - 1 | £696.66 |
2 - 4 | £678.79 |
5 + | £661.83 |
- RS Stock No.:
- 228-3019
- Mfr. Part No.:
- SPC58NH-DISP
- Brand:
- STMicroelectronics
Technical Reference
Legislation and Compliance
Product Details
Description

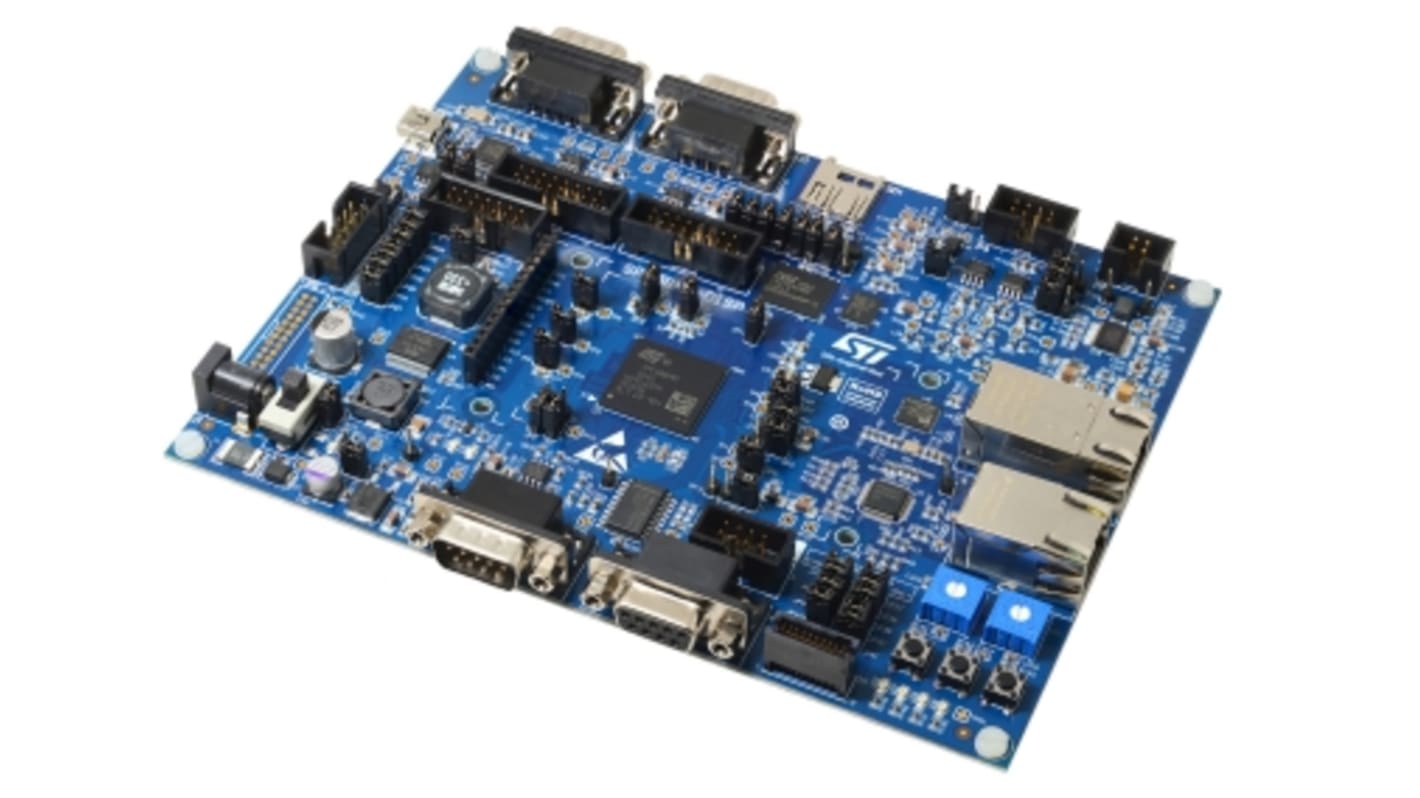

The SPC58NH-DISP discovery board is the optimal solution for accelerating the development and securing a fast time-to-market, with a perfect balance among performance, functionalities and cost.
Featuring SPC58 Chorus H Line, it addresses automotive applications, such as gateway, body and battery management system, requesting the highest functional safety level, and in which security, as well as performances, reliability and high operating temperature needs are growing. Offering a large memory size, both volatile and NVM, it supports Over-the-air (OTA) Software update.
Featuring SPC58 Chorus H Line, it addresses automotive applications, such as gateway, body and battery management system, requesting the highest functional safety level, and in which security, as well as performances, reliability and high operating temperature needs are growing. Offering a large memory size, both volatile and NVM, it supports Over-the-air (OTA) Software update.
The board provides access to the 10/100 Mbps and 1 Gbps Ethernet ports, 3 FD-CAN channels as well as FlexRay, LIN and UART.
Two memories allow evaluation hyperbus interface to extend the internal RAM and the eMMC interface to allow big data file storage.
Two memories allow evaluation hyperbus interface to extend the internal RAM and the eMMC interface to allow big data file storage.
It offers easy debug with a JTAG port. It also includes push switches, LEDs, and a connector suitable for the 2.8 TFT-LCD module (TJCTM24028-SPI), to enhance HMI customization and debug (LCD not included). Power supply is in the box for immediate plug and play.
STs SPC5Studio, is an Eclipse-based Integrated Development Environment, providing a comprehensive framework to design, build and deploy your own embedded application.
STs SPC5Studio, is an Eclipse-based Integrated Development Environment, providing a comprehensive framework to design, build and deploy your own embedded application.
Features
Featuring SPC58 SPC58NH92C5, a 32-bit Power Architecture® triple core z4d, with 10 MB flash in FPBGA386 package.
Designed according to ISO26262, embedding a lockstep core, SPC58 H Line supports functional safety requirements up to ASIL-D
HSM supporting EVITA full
2 Ethernet ports (10/100 Mbps and 1 Gbps)
OctalSPI interface (HyperFlash and HyperRam memory)
eMMC and SD Card (microSD port)
3 CAN FD port with DB9 Connector
2 FlexRay and 2 UART channels
1 LIN and 1 K-Line channels
USB to UART port
3 Push buttons, 4 LEDs for users, Reset push button
Board Supply: 12 VDC (external power supply)
Connector for TFT-LCD (Option)
Board size: 170x130mm
Designed according to ISO26262, embedding a lockstep core, SPC58 H Line supports functional safety requirements up to ASIL-D
HSM supporting EVITA full
2 Ethernet ports (10/100 Mbps and 1 Gbps)
OctalSPI interface (HyperFlash and HyperRam memory)
eMMC and SD Card (microSD port)
3 CAN FD port with DB9 Connector
2 FlexRay and 2 UART channels
1 LIN and 1 K-Line channels
USB to UART port
3 Push buttons, 4 LEDs for users, Reset push button
Board Supply: 12 VDC (external power supply)
Connector for TFT-LCD (Option)
Board size: 170x130mm
Specifications
Attribute | Value |
---|---|
Classification | Evaluation Board |
Kit Name | SPC58 H Line Discovery Board |
Technology | 32 Bit MCU |
Device Core | 32 bit MCU |
Processor Family Name | SPC58 H |
