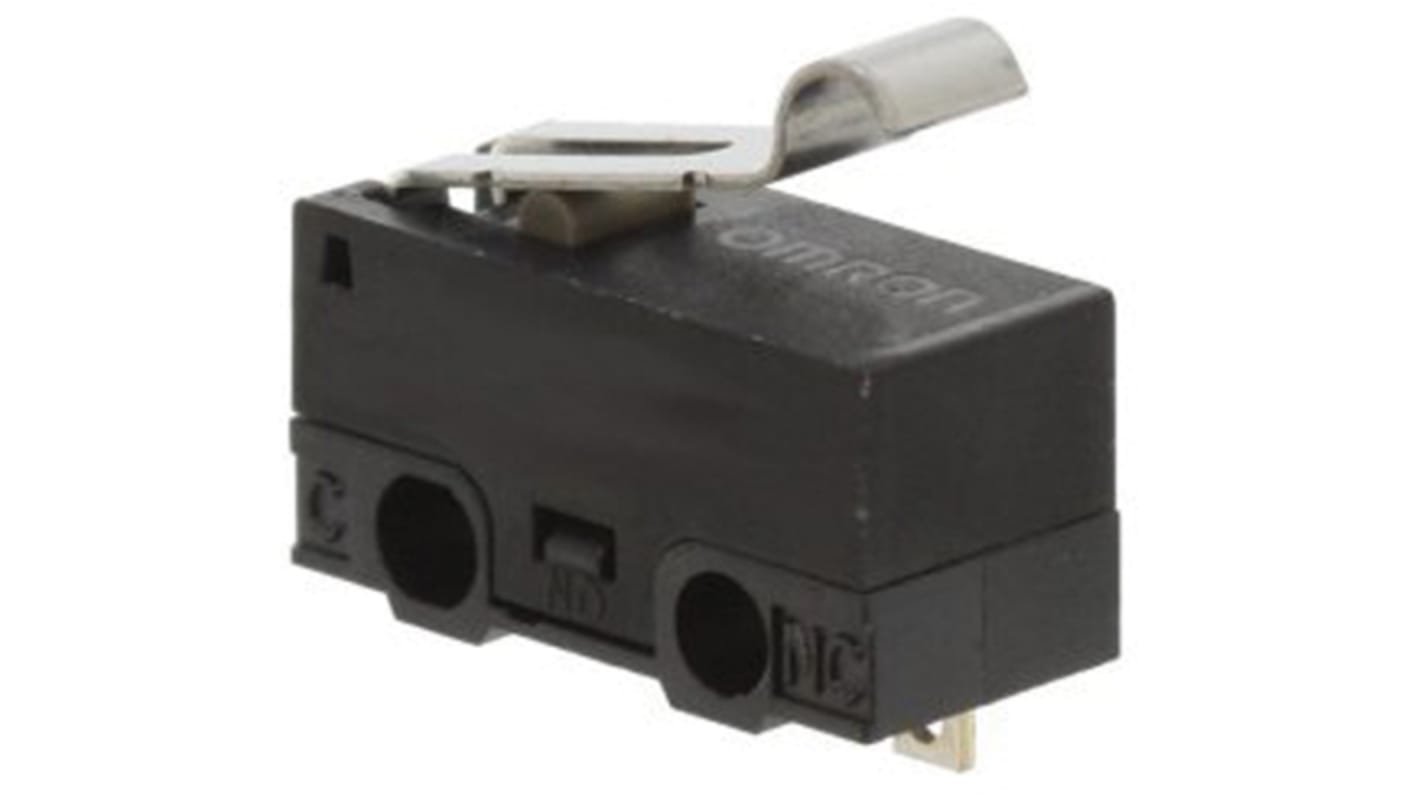

Omron Simulated Roller Lever Micro Switch, Solder Terminal, 1 A @ 125 V ac, SPDT, IP40
- RS Stock No.:
- 682-1538
- Mfr. Part No.:
- D2F-FL3-D
- Brand:
- Omron
1580 In stock - FREE next working day delivery available
15 available from Europe for delivery within 1 working day(s).
Price Each (In a Pack of 5)
£1.678
(exc. VAT)
£2.014
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 245 | £1.678 | £8.39 |
| 250 - 745 | £1.18 | £5.90 |
| 750 - 1245 | £1.074 | £5.37 |
| 1250 - 2495 | £1.034 | £5.17 |
| 2500 + | £0.996 | £4.98 |
| *price indicative | ||
- RS Stock No.:
- 682-1538
- Mfr. Part No.:
- D2F-FL3-D
- Brand:
- Omron
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
Ultra Sub-Miniature Micro-switch
Snap action sub-miniature microswitch ideal for home appliances, audio equipment and communications equipment.
RoHS compliant
Contact rating: 3A @125Vac with silver contacts and 0.1A @ 30Vdc with gold contacts
SPDT contact configuration
Snap action
Contact rating: 3A @125Vac with silver contacts and 0.1A @ 30Vdc with gold contacts
SPDT contact configuration
Snap action
Approvals: UL & CSA
Specifications
Attribute | Value |
|---|---|
| Actuator Type | Simulated Roller Lever |
| Terminal Type | Solder |
| Contact Current Rating | 1 A @ 125 V ac |
| Contact Configuration | SPDT |
| IP Rating | IP40 |
| Operating Force | 0.39 N |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +65°C |
| Contact Material | Silver Alloy |
| Mechanical Life | 1000000Operations |
| Release Force | 0.02N |
| Operating Temperature Range | -25 → +65°C |
- RS Stock No.:
- 682-1538
- Mfr. Part No.:
- D2F-FL3-D
- Brand:
- Omron
