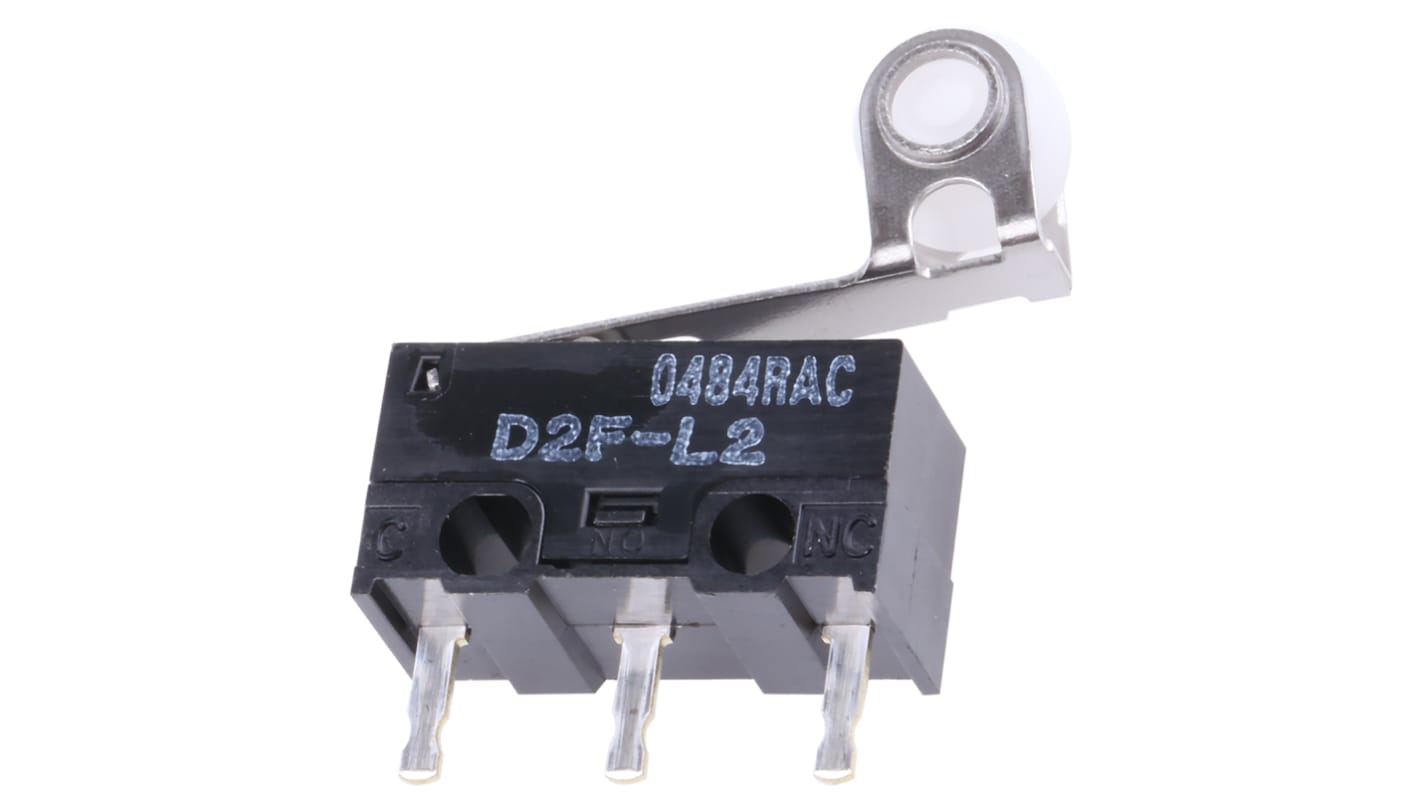

Omron Roller Lever Micro Switch, PCB Terminal, 3 A @ 125 V ac, SPDT, IP40
- RS Stock No.:
- 616-0120
- Mfr. Part No.:
- D2F-L2
- Brand:
- Omron
3145 In stock - FREE next working day delivery available
10 available from Europe for delivery within 1 working day(s).
Price Each (In a Pack of 5)
£0.69
(exc. VAT)
£0.83
(inc. VAT)
Units | Per unit | Per Pack* |
---|---|---|
5 + | £0.69 | £3.45 |
*price indicative
- RS Stock No.:
- 616-0120
- Mfr. Part No.:
- D2F-L2
- Brand:
- Omron
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
Ultra Sub-Miniature Micro-switch
Snap action sub-miniature microswitch ideal for home appliances, audio equipment and communications equipment.
RoHS compliant
Contact rating: 3A @125Vac with silver contacts and 0.1A @ 30Vdc with gold contacts
SPDT contact configuration
Snap action
Contact rating: 3A @125Vac with silver contacts and 0.1A @ 30Vdc with gold contacts
SPDT contact configuration
Snap action
Approvals: UL & CSA
Specifications
Attribute | Value |
---|---|
Actuator Type | Roller Lever |
Terminal Type | PCB |
Contact Current Rating | 3 A @ 125 V ac |
Contact Configuration | SPDT |
IP Rating | IP40 |
Operating Force | 0.78 N |
Minimum Operating Temperature | -25°C |
Maximum Operating Temperature | +65°C |
Contact Material | Silver Alloy |
Mechanical Life | 1000000Operations |
Release Force | 0.05N |
Operating Temperature Range | -25 → +65°C |
