Honeywell Plunger Micro Switch, Screw Terminal, 16 A @ 250 V ac, SPDT
- RS Stock No.:
- 198-8428
- Mfr. Part No.:
- BZ-2RQ181M-A2
- Brand:
- Honeywell
Subtotal (1 unit)*
£56.22
(exc. VAT)
£67.46
(inc. VAT)
FREE delivery for orders over £50.00
Being discontinued
- 123 left, ready to ship
- Plus 2 left, ready to ship from another location
Units | Per unit |
|---|---|
| 1 + | £56.22 |
*price indicative
- RS Stock No.:
- 198-8428
- Mfr. Part No.:
- BZ-2RQ181M-A2
- Brand:
- Honeywell
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Honeywell | |
| Actuator Type | Plunger | |
| Terminal Type | Screw | |
| Contact Current Rating | 16 A @ 250 V ac | |
| Contact Configuration | SPDT | |
| Operating Force | 3.63 N | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +85°C | |
| Contact Material | Silver | |
| Case Material | Phenolic | |
| Release Force | 1.08N | |
| Operating Temperature Range | -55 → +85°C | |
| Standards Met | CSA, UL | |
Select all | ||
|---|---|---|
Brand Honeywell | ||
Actuator Type Plunger | ||
Terminal Type Screw | ||
Contact Current Rating 16 A @ 250 V ac | ||
Contact Configuration SPDT | ||
Operating Force 3.63 N | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +85°C | ||
Contact Material Silver | ||
Case Material Phenolic | ||
Release Force 1.08N | ||
Operating Temperature Range -55 → +85°C | ||
Standards Met CSA, UL | ||
- COO (Country of Origin):
- MX
Heavy-duty Type (a) Microswitch
Available with a choice of actuators
Connection by screw and cup washer
Panel mounting types should be bush mounted using the supplied fixing nuts
The collapsible roller version operates in one direction only
Optional terminal cover has knockouts to provide a choice of wiring positions
Contact Rating; 15A @ 480Vac/28Vdc
Contact material; silver
Connection by screw and cup washer
Panel mounting types should be bush mounted using the supplied fixing nuts
The collapsible roller version operates in one direction only
Optional terminal cover has knockouts to provide a choice of wiring positions
Contact Rating; 15A @ 480Vac/28Vdc
Contact material; silver
Approvals
UL; CSA

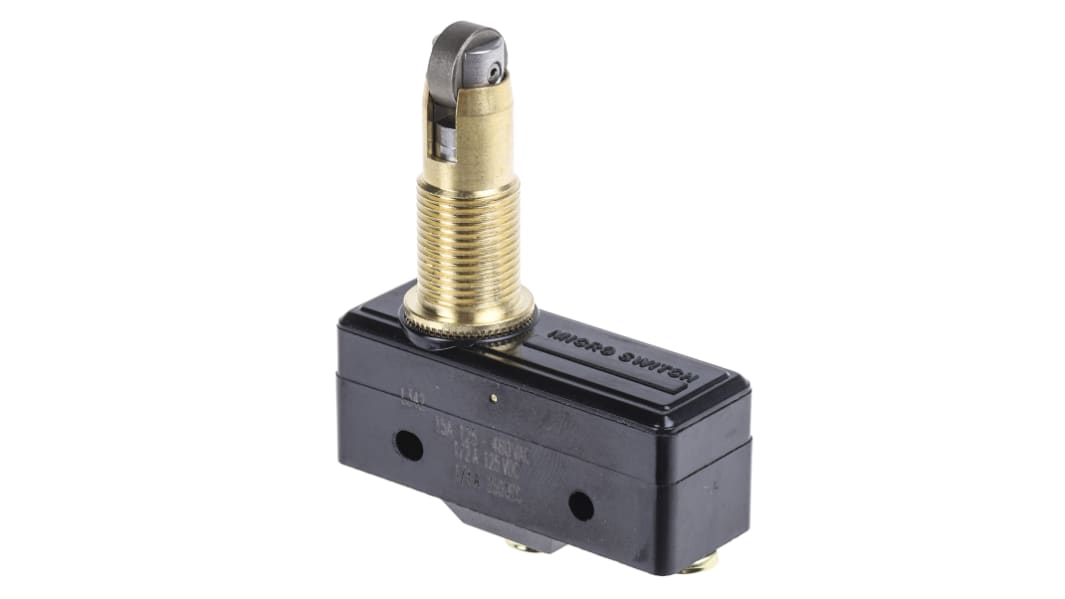

Honeywell Microswitch, Roller Plunger Actuator, 15A Current Rating - BZ Series - BZ-2RQ181M-A2
Looking for a reliable switching solution for your electrical devices? Choose this microswitch from Honeywell. It has a snap-action mechanism to quickly switch your circuits on and off for efficient operation. Thanks to its low operating force of 2.5 to 3.61N, this unit is highly sensitive for reliable performance. Its current rating of 15A makes it a good choice for use in high-power applications.
Features & Benefits
• Phenolic housing is resistant to impact and heat for use in harsh environments
• Wide operating temperature range between -55°C and +85°C for use in challenging environments
• Wide operating temperature range between -55°C and +85°C for use in challenging environments
Applications
• Elevators
• Kitchen appliances
• Consumer electronics
• Safety systems
• Kitchen appliances
• Consumer electronics
• Safety systems
How does this microswitch work?
When the actuator of this microswitch makes contact with an object, it transmits a signal to the contacts that causes them to change position, energising or de-energising the electric circuit.
Approvals
UL; CSA
