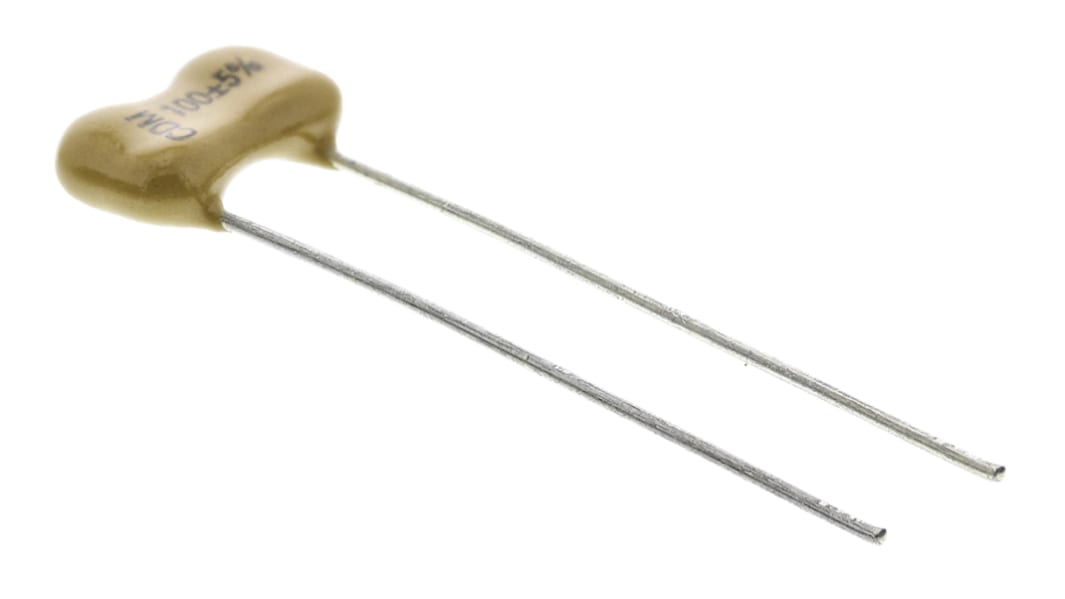

Cornell-Dubilier 100pF Mica Capacitor 500V dc ±5% Tolerance, CD15
- RS Stock No.:
- 744-1530
- Mfr. Part No.:
- CD15FD101JO3F
- Brand:
- Cornell-Dubilier
Bulk discount available
Subtotal (1 pack of 5 units)*
£9.80
(exc. VAT)
£11.75
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 405 unit(s), ready to ship
Units | Per unit | Per Pack* |
---|---|---|
5 - 45 | £1.96 | £9.80 |
50 - 245 | £1.58 | £7.90 |
250 - 495 | £1.034 | £5.17 |
500 - 1245 | £0.916 | £4.58 |
1250 + | £0.804 | £4.02 |
*price indicative
- RS Stock No.:
- 744-1530
- Mfr. Part No.:
- CD15FD101JO3F
- Brand:
- Cornell-Dubilier
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Cornell-Dubilier | |
Series | CD15 | |
Capacitance | 100pF | |
Voltage | 500V dc | |
Dimensions | 11.7 x 4.6 x 9.1mm | |
Lead Pitch | 5.9mm | |
Tolerance | ±5% | |
Depth | 4.6mm | |
Height | 9.1mm | |
Length | 11.7mm | |
Maximum Operating Temperature | +125°C | |
Minimum Operating Temperature | -55°C | |
Capacitor Family | Mica | |
Terminal Type | Radial | |
Dielectric Material Family | Mica | |
Select all | ||
---|---|---|
Brand Cornell-Dubilier | ||
Series CD15 | ||
Capacitance 100pF | ||
Voltage 500V dc | ||
Dimensions 11.7 x 4.6 x 9.1mm | ||
Lead Pitch 5.9mm | ||
Tolerance ±5% | ||
Depth 4.6mm | ||
Height 9.1mm | ||
Length 11.7mm | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -55°C | ||
Capacitor Family Mica | ||
Terminal Type Radial | ||
Dielectric Material Family Mica | ||
CD15 series
Standard range of resin dipped radial MICA capacitors. This series features excellent stability for timing and close tolerance applications
Features and Benefits:
High temperature
Non-flammable
High reliability
Case Material: Epoxy
Rated Voltage 100 Vdc to 2500 Vdc
High temperature
Non-flammable
High reliability
Case Material: Epoxy
Rated Voltage 100 Vdc to 2500 Vdc
Radial Dipped
Professional radial wire ended dipped silver mica capacitors designed for applications which demand high stability
Constructed using a flame retardant epoxy coating which makes them suitable for RF tuned circuits and pulse operation.
Constructed using a flame retardant epoxy coating which makes them suitable for RF tuned circuits and pulse operation.
