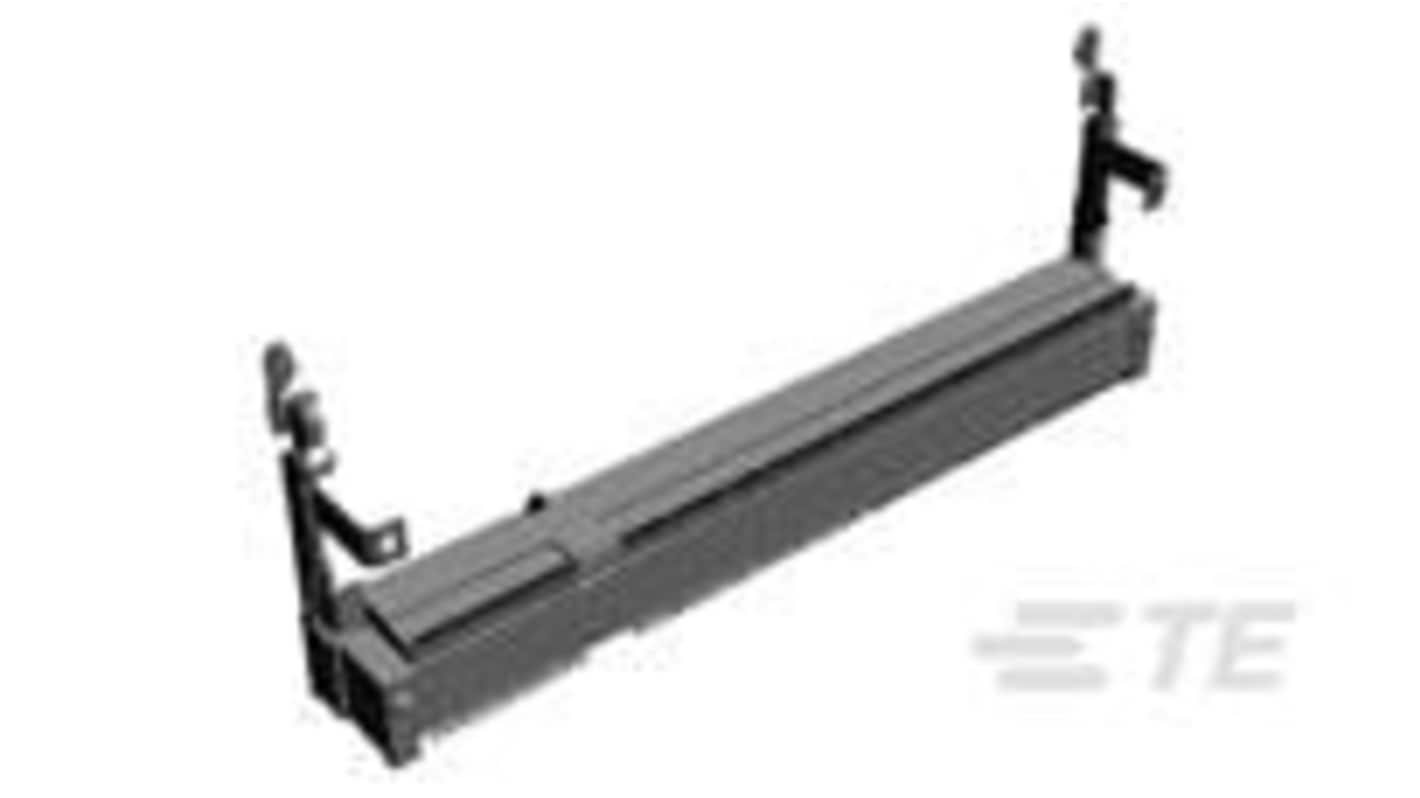

TE Connectivity 0.6 mm Pitch 200 Way, Right Angle Board Mount DDR3 DIMM Socket ,1.8 V, 500mA
- RS Stock No.:
- 504-768
- Distrelec Article No.:
- 304-63-239
- Mfr. Part No.:
- 1981287-4
- Brand:
- TE Connectivity
Subtotal (1 tray of 12 units)*
£160.07
(exc. VAT)
£192.08
(inc. VAT)
Add 1 tray to get free delivery
Temporarily out of stock
- Shipping from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
|---|---|---|
| 1 + | £160.07 | £13.339 |
*price indicative
- RS Stock No.:
- 504-768
- Distrelec Article No.:
- 304-63-239
- Mfr. Part No.:
- 1981287-4
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Memory Socket Type | DIMM | |
| Product Type | DIMM Socket | |
| Orientation | Right Angle | |
| Insertion/Removal Method | Cam-In | |
| Contact Material | Copper Alloy | |
| Current | 500mA | |
| Contact Plating | Gold | |
| Number of Contacts | 200 | |
| Pitch | 0.6mm | |
| Mount Type | Board | |
| Housing Material | High Temperature Thermoplastic | |
| SDRAM Type | DDR3 | |
| Termination Type | Surface Mount | |
| Latching | Yes | |
| Row Spacing | 6.2mm | |
| Maximum Operating Temperature | 260°C | |
| Standards/Approvals | UL 94V-0, EU RoHS Directive 2011/65/EU Compliant, 2016, EU ELV Directive 2000/53/EC Compliant, China RoHS 2 Directive MIIT Order No 32 | |
| Voltage | 1.8 V | |
| Series | DDR2 SO DIMM | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Memory Socket Type DIMM | ||
Product Type DIMM Socket | ||
Orientation Right Angle | ||
Insertion/Removal Method Cam-In | ||
Contact Material Copper Alloy | ||
Current 500mA | ||
Contact Plating Gold | ||
Number of Contacts 200 | ||
Pitch 0.6mm | ||
Mount Type Board | ||
Housing Material High Temperature Thermoplastic | ||
SDRAM Type DDR3 | ||
Termination Type Surface Mount | ||
Latching Yes | ||
Row Spacing 6.2mm | ||
Maximum Operating Temperature 260°C | ||
Standards/Approvals UL 94V-0, EU RoHS Directive 2011/65/EU Compliant, 2016, EU ELV Directive 2000/53/EC Compliant, China RoHS 2 Directive MIIT Order No 32 | ||
Voltage 1.8 V | ||
Series DDR2 SO DIMM | ||
- COO (Country of Origin):
- CN
The TE Connectivity Semi-hard tray is designed for high-performance applications, providing reliable memory socket connections. Constructed to meet the demands of modern computing environments, this product supports DDR memory with a robust structure that ensures durability and longevity. Its carefully engineered specifications offer an ideal solution for various configurations, making it an essential component for both industrial and consumer electronic devices. With advanced features that enhance both performance and compatibility, it streamlines integration into any existing setup.
Offers a double data rate for improved data throughput
Constructed with high-temperature thermoplastic for enhanced durability
Features reverse keying for simple and secure connections
Includes locking ejectors at both ends for added security during operation
Designed for surface mount termination, ensuring a reliable fit
Contains gold flash plating in the contact area for superior conductivity
Provides low halogen content for reduced environmental impact
Compliance with EU RoHS and REACH directives for eco-friendly use
