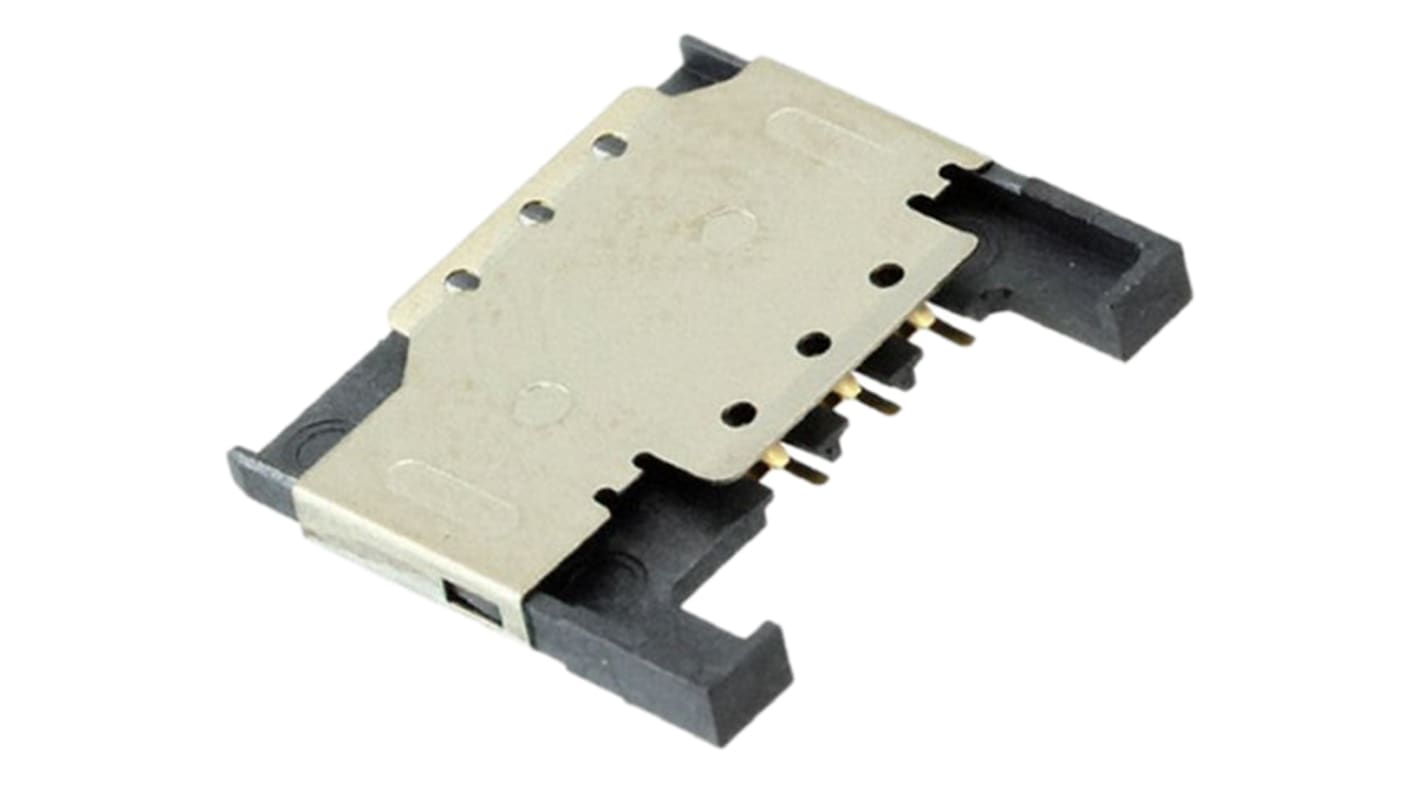

TE Connectivity 6 Way Mini Memory Card Connector With Solder Termination

View all Memory Card Connectors
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
909-7277
Mfr. Part No.:
1932768-1
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Card Type

Mini SIM Card

Gender

Female

Number of Contacts

6

Number of Rows

2

Pitch

2.54mm

Body Orientation

Straight

Mounting Type

Surface Mount

Contact Material

Copper Alloy

Contact Plating

Gold, Palladium Nickel

Termination Method

Solder

Housing Material

Thermoplastic

Length

16.3mm

Width

14.8mm

Depth

2.02mm

Dimensions

16.3 x 14.8 x 2.02mm

COO (Country of Origin):
CN

TE Connectivity 2FF Push-Pull Mini-SIM Card Connector


2FF Mini-SIM card connector with a super low space saving profile of just 1.95mm and a one clip bridge type design. This SMT 2FF Micro-SIM card has a push-pull ejection mechanism and a large shield that offers protection against EMI, RF disortion and card bend. Preloaded anti-lifting contacts protect the card from damage caused by misinsertion. Additional features of this 2FF Mini-SIM card connector include card stop and guide and holes underneath the connector that enable automated testing. Components can also be mounted underneath this connector which offers additional space saving on the PCB .
Typical applications for this Micro-SIM card include tablets, personal computers, data cards, portable GSM modems and servers.
