    Molex, 502579 8 Way Right Angle Push/Push Micro SD Memory Card Connector With Solder Termination

    RS Stock No.:
    720-6075
    Mfr. Part No.:
    502570-0893
    Brand:
    Molex
    Molex
    View all Memory Card Connectors
    439 In stock - FREE next working day delivery available
    174 available from Europe for delivery within 1 working day(s).
    Add to Basket
    Units

    Added

    Price Each

    £3.59

    (exc. VAT)

    £4.31

    (inc. VAT)

    UnitsPer unit
    1 - 24£3.59
    25 - 74£3.05
    75 - 199£2.64
    200 - 399£2.27
    400 +£2.09
    Packaging Options:
    RS Stock No.:
    720-6075
    Mfr. Part No.:
    502570-0893
    Brand:
    Molex

    Legislation and Compliance


    Product Details

    Molex micro SD Memory Card Connectors - 502570 and 502774 Series


    502570 and 502774 series micro SD memory card connectors with a 1.10 mm pitch and anti card-sticking features. These memory card connectors feature a push-push mechanism for easy insertion and removal of the SD card and a reliable card detection switch. The housings are designed with card ejection support features that prevent card fly-out and card sticking. A card polarization feature prevents card misinsertion and a ribbed wall on the inner housing protects the tips of the terminals when the card is inserted. The terminals of these micro SD card connectors are bevelled to prevent damage to the terminal during card insertion. Fully shielded stainless steel covers provide protection against EMI interference. Retention features provide a secure connection to the PCB.

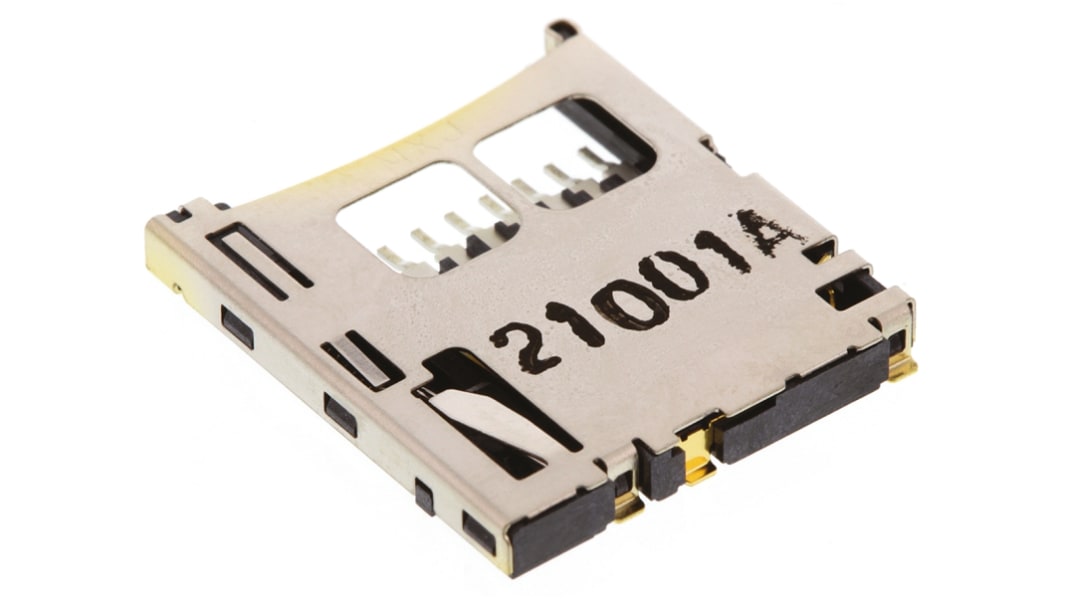

    Stock number 720-6075 is a normal mount micro SD memory card connector
    Stock number 720-6072 is a reverse mount micro SD memory card connector


    Features and Benefits


    • Card ejection support features to prevent card fly-out and card sticking
    • Push-push mechanism for easy card insertion and removal
    • Card polarization feature
    • Card detection switch
    • Ribbed inner wall for terminal protection
    • Bevelled terminals
    • Fully shielded metal covers for EMI protection
    • PCB retention features


    Product Application Information


    These micro SD memory card connectors are suitable for use in mobile phones, portable audio players, digital still cameras, digital video cameras, portable games, car navigation and personal navigators



    Memory Card Connectors


    Specifications

    AttributeValue
    Card TypeMicroSD
    GenderFemale
    Insertion/Removal MethodPush/Push
    Number of Contacts8
    Number of Rows1
    Pitch1.1mm
    Body OrientationRight Angle
    Mounting TypeSurface Mount
    Contact MaterialCopper Alloy
    Contact PlatingGold over Nickel
    Termination MethodSolder
    Housing MaterialLiquid Crystal Polymer
    Length13.8mm
    Width1.8mm
    Depth15.5mm
    Series Number502579
    Maximum Operating Temperature+85°C
    Minimum Operating Temperature-25°C
    Dimensions13.8 x 1.8 x 15.5mm
