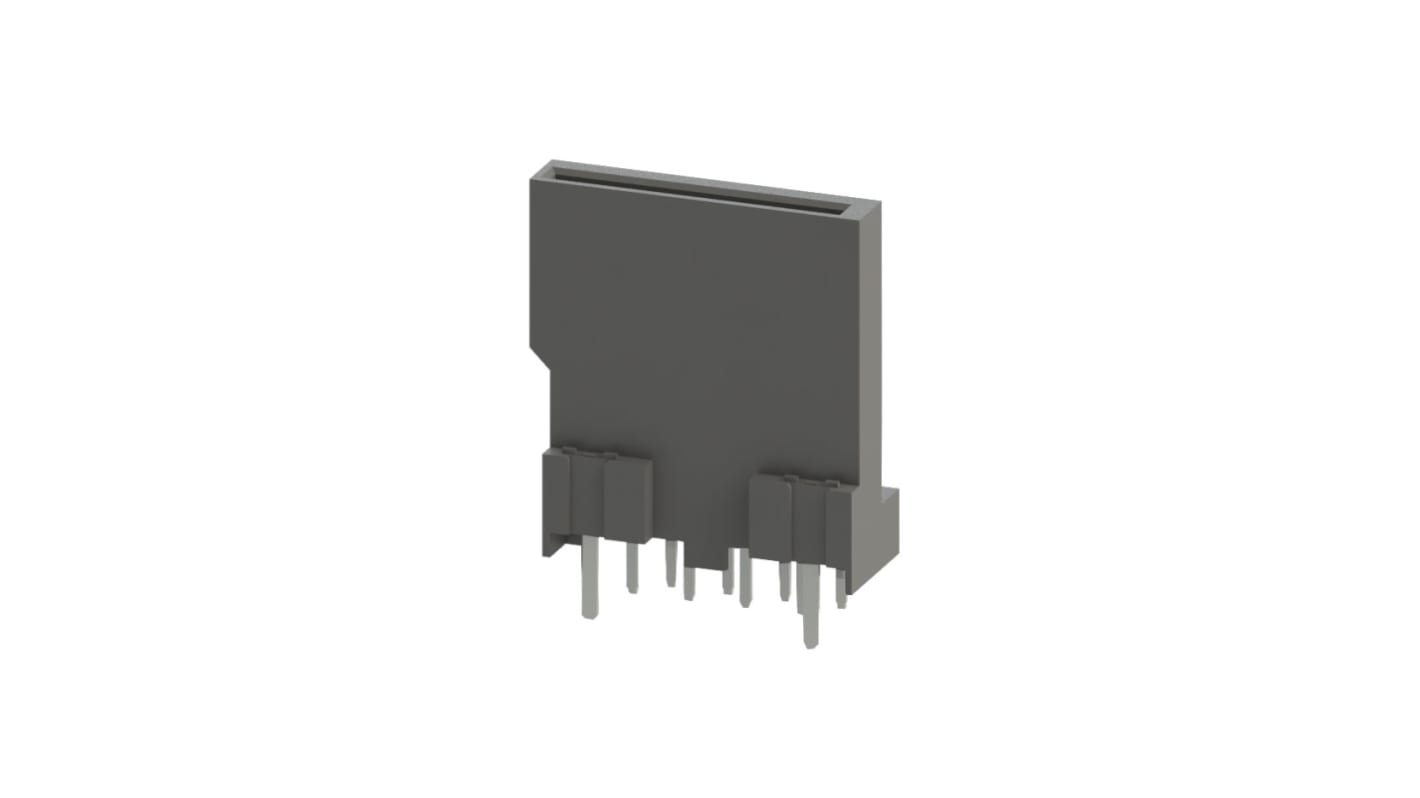

Yamaichi, FPS 8 Way Top Entry Push-Push MicroSD Micro SD Card Connector, Push-Push
- RS Stock No.:
- 252-5838
- Mfr. Part No.:
- PJS008U-3000-0
- Brand:
- Yamaichi
Subtotal (1 tray of 60 units)*
£63.54
(exc. VAT)
£76.26
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Tray* |
|---|---|---|
| 60 + | £1.059 | £63.54 |
*price indicative
- RS Stock No.:
- 252-5838
- Mfr. Part No.:
- PJS008U-3000-0
- Brand:
- Yamaichi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Yamaichi | |
| Product Type | Micro SD Card Connector | |
| Card Type | MicroSD | |
| Gender | Female | |
| Insertion/Removal Method | Push-Push | |
| Number of Contacts | 8 | |
| Number of Rows | 3 | |
| Pitch | 1.27mm | |
| Orientation | Top Entry | |
| Mount Type | Vertical | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Gold, Nickel | |
| Termination Type | Push-Push | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Series | FPS | |
| Select all | ||
|---|---|---|
Brand Yamaichi | ||
Product Type Micro SD Card Connector | ||
Card Type MicroSD | ||
Gender Female | ||
Insertion/Removal Method Push-Push | ||
Number of Contacts 8 | ||
Number of Rows 3 | ||
Pitch 1.27mm | ||
Orientation Top Entry | ||
Mount Type Vertical | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold, Nickel | ||
Termination Type Push-Push | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Series FPS | ||
This Yamaichi product is a Micro SD card connector with manual type 180° connection and with various removal and unlocking techniques such as manual, push and push or push and lock. The voltage rating ranges from 2.7 V to 3.6 V. The contact material is copper alloy, Ni-Au.
180° Version
Manual insertion and extraction
THR Version
Write Protect present
