JST Horizontal Flip Cover MicroSD Card Connector
- RS Stock No.:
- 218-3873
- Mfr. Part No.:
- SDHK-8BNS-K-303-TB(HF)
- Brand:
- JST
Bulk discount available
Subtotal (1 reel of 1400 units)*
£1,268.40
(exc. VAT)
£1,521.80
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 23 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1400 - 2800 | £0.906 | £1,268.40 |
| 4200 + | £0.881 | £1,233.40 |
*price indicative
- RS Stock No.:
- 218-3873
- Mfr. Part No.:
- SDHK-8BNS-K-303-TB(HF)
- Brand:
- JST
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Card Type | MicroSD | |
| Product Type | Card Connector | |
| Insertion/Removal Method | Flip Cover | |
| Pitch | 1.1mm | |
| Orientation | Horizontal | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold over Nickel | |
| Minimum Operating Temperature | -25°C | |
| Housing Material | Resin | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS Compliance | |
| Select all | ||
|---|---|---|
Brand JST | ||
Card Type MicroSD | ||
Product Type Card Connector | ||
Insertion/Removal Method Flip Cover | ||
Pitch 1.1mm | ||
Orientation Horizontal | ||
Contact Material Copper Alloy | ||
Contact Plating Gold over Nickel | ||
Minimum Operating Temperature -25°C | ||
Housing Material Resin | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS Compliance | ||
- COO (Country of Origin):
- JP

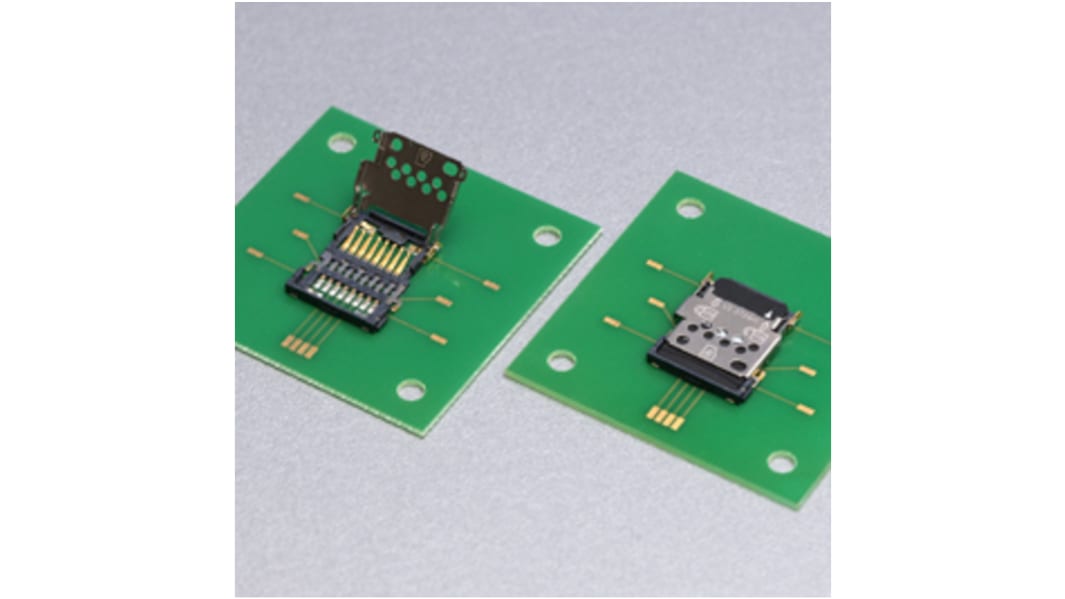

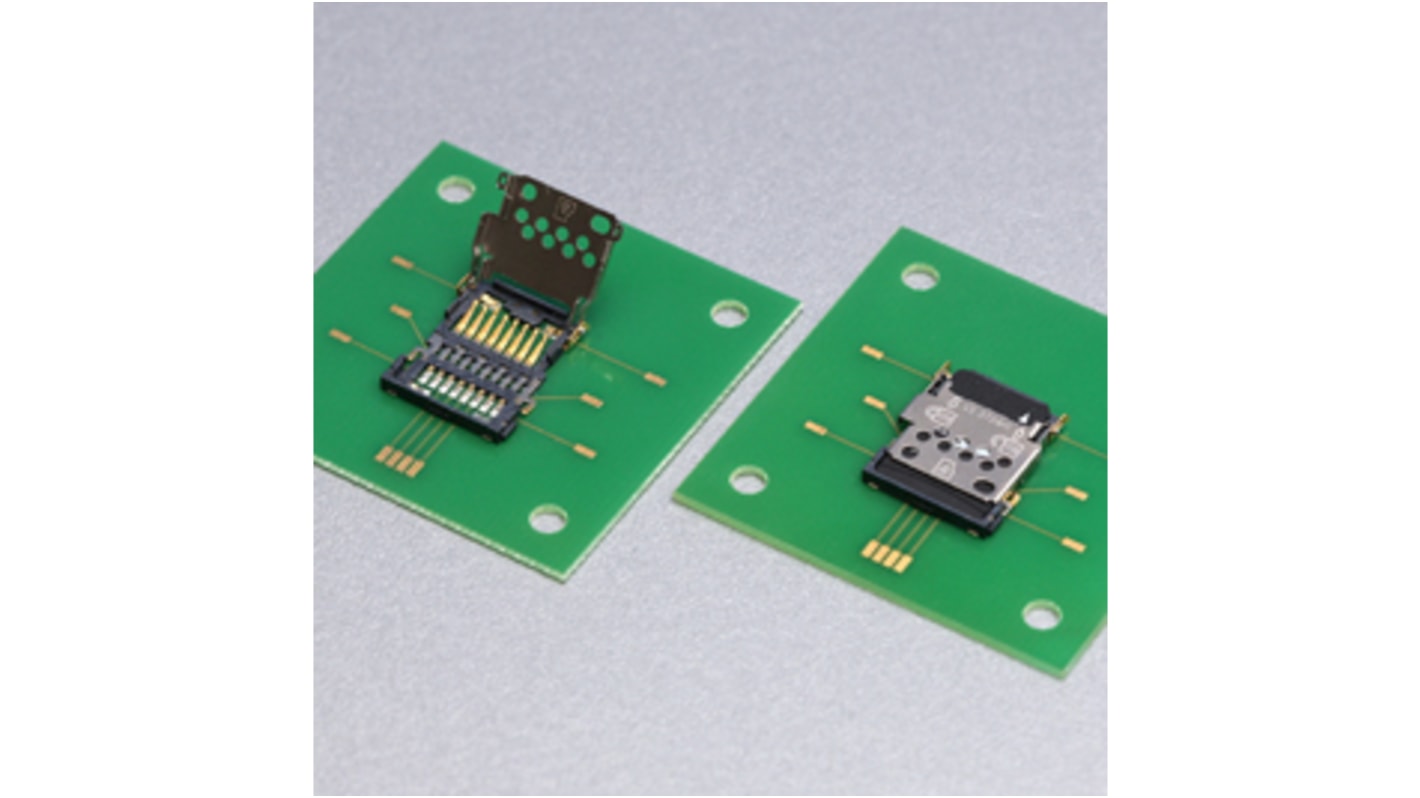

The JST SDHK micro SD card flip cover type connector having 1.1 mm pitch. The cover is made up of stainless material and copper alloy contacts with gold plating.
RoHS2 compliance
