Molex, 104224 6 Way Horizontal SIM Card Connector With Push In Termination
- RS Stock No.:
- 207-6764
- Mfr. Part No.:
- 1042240820
- Brand:
- Molex
Bulk discount available
Subtotal (1 tape of 5 units)*
£3.88
(exc. VAT)
£4.655
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,880 unit(s) ready to ship
- Plus 10 unit(s) ready to ship from another location
- Plus 10,895 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
---|---|---|
5 - 45 | £0.776 | £3.88 |
50 - 245 | £0.682 | £3.41 |
250 - 495 | £0.626 | £3.13 |
500 + | £0.578 | £2.89 |
*price indicative
- RS Stock No.:
- 207-6764
- Mfr. Part No.:
- 1042240820
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Molex | |
Card Type | SIM | |
Gender | Female | |
Number of Contacts | 6 | |
Number of Rows | 1 | |
Pitch | 2.54mm | |
Body Orientation | Horizontal | |
Termination Method | Push In | |
Series Number | 104224 | |
Select all | ||
---|---|---|
Brand Molex | ||
Card Type SIM | ||
Gender Female | ||
Number of Contacts 6 | ||
Number of Rows 1 | ||
Pitch 2.54mm | ||
Body Orientation Horizontal | ||
Termination Method Push In | ||
Series Number 104224 | ||
- COO (Country of Origin):
- KR

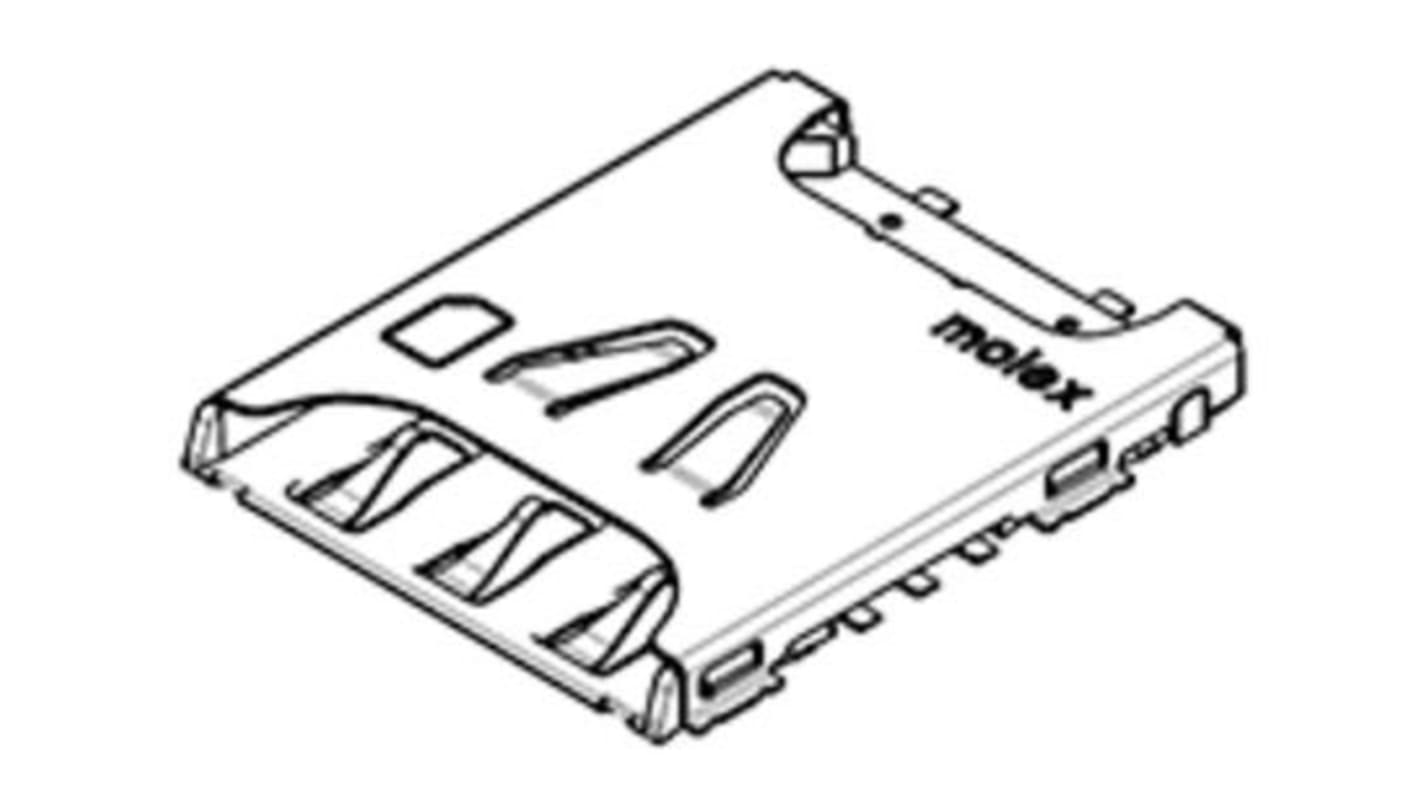

Molex 104224 Series SIM Card Connector, 2.54mm Pitch, 6 Contacts - 1042240820
This nano SIM card connector is designed for seamless integration into various electronic applications. Featuring a surface mount design, it accommodates a 6 contact configuration with a push/pull insertion and removal method. The connector measures 1.11mm in height and is constructed from high-quality materials, ensuring longevity and reliable performance in demanding environments.
Features & Benefits
• Utilises a push/pull mechanism for effortless SIM card handling
• Surface mount design allows for easy PCB assembly
• Constructed with copper alloy for improved conductivity
• Gold-plated contacts enhance durability and connection reliability
• Stainless steel shell ensures robustness in various conditions
• Operates effectively in a wide temperature range of -25°C to +85°C
• Surface mount design allows for easy PCB assembly
• Constructed with copper alloy for improved conductivity
• Gold-plated contacts enhance durability and connection reliability
• Stainless steel shell ensures robustness in various conditions
• Operates effectively in a wide temperature range of -25°C to +85°C
Applications
• Used with nano SIM cards in handheld devices
• Integrated in automotive electronics for telecommunication
• Employed in IoT devices requiring compact connectivity solutions
• Utilised in telecommunications equipment for enhanced performance
• Suitable for consumer electronics requiring a surface mount interface
• Integrated in automotive electronics for telecommunication
• Employed in IoT devices requiring compact connectivity solutions
• Utilised in telecommunications equipment for enhanced performance
• Suitable for consumer electronics requiring a surface mount interface
What materials contribute to the robustness of this connector?
It features a stainless steel shell and copper alloy contacts, ensuring durability and resistance to wear during operation.
How does the push/pull mechanism benefit users?
The design simplifies the process of inserting and removing SIM cards, reducing wear on the card and connector.
What is the maximum current and voltage rating for this connector?
It can handle a maximum current of 0.5A and voltage up to 10V AC/DC, making it versatile for various applications.
How many mating cycles can this connector withstand?
It is rated for up to 5000 mating cycles, ensuring longevity and reliability in high-use scenarios.
Is this connector suitable for high-temperature applications?
Yes, it operates effectively between -25°C and +85°C, making it suitable for environments with significant temperature fluctuations.
