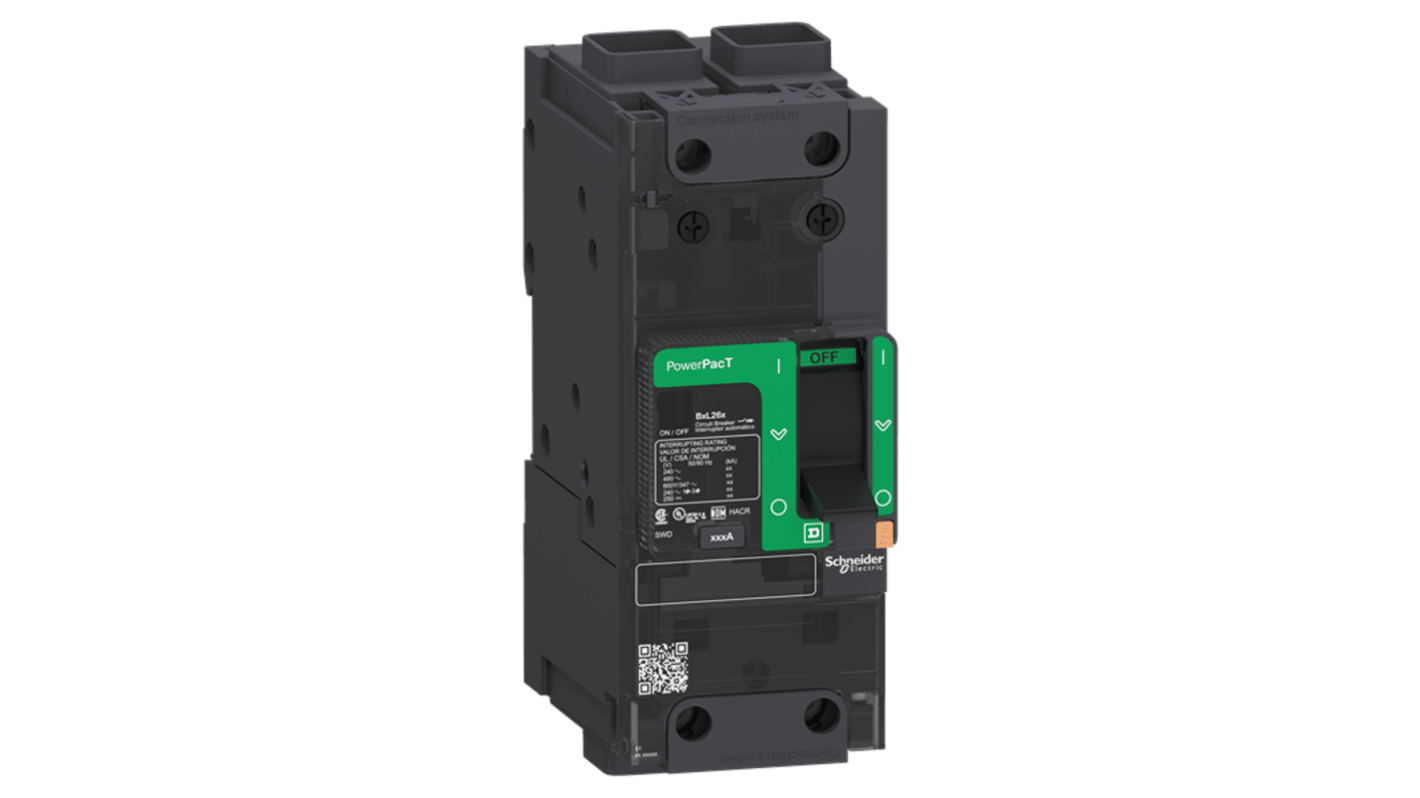

Schneider Electric, PowerPact, BDF Molded Case Circuit Breaker 2-Pole 15A, Breaking Capacity 25 kA, Clip-on
- RS Stock No.:
- 341-561
- Mfr. Part No.:
- BDF26015
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£471.86
(exc. VAT)
£566.23
(inc. VAT)
FREE delivery for orders over £50.00
Stocked by manufacturer
- Ready to ship from 22 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £471.86 |
*price indicative
- RS Stock No.:
- 341-561
- Mfr. Part No.:
- BDF26015
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Molded Case Circuit Breaker | |
| Range | PowerPact | |
| Series | BDF | |
| Number of Poles | 2 | |
| Current Rating | 15A | |
| Breaking Capacity | 25kA | |
| Mount Type | Clip-on | |
| Rated AC Voltage | 240V ac | |
| Terminal Type | Nut Terminal | |
| Standards/Approvals | UL 489 GB 14048.2, NMX J-266, NEMA AB1, EN/IEC 60947-5-1, EN/IEC 60947-2, CSA C22.2 No 5 | |
| Depth | 80mm | |
| Width | 54mm | |
| Height | 137mm | |
| Tripping Mechanism | Acetic Acid | |
| Tripping Characteristics | Thermomagnetic | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Molded Case Circuit Breaker | ||
Range PowerPact | ||
Series BDF | ||
Number of Poles 2 | ||
Current Rating 15A | ||
Breaking Capacity 25kA | ||
Mount Type Clip-on | ||
Rated AC Voltage 240V ac | ||
Terminal Type Nut Terminal | ||
Standards/Approvals UL 489 GB 14048.2, NMX J-266, NEMA AB1, EN/IEC 60947-5-1, EN/IEC 60947-2, CSA C22.2 No 5 | ||
Depth 80mm | ||
Width 54mm | ||
Height 137mm | ||
Tripping Mechanism Acetic Acid | ||
Tripping Characteristics Thermomagnetic | ||
- COO (Country of Origin):
- US
The Schneider Electric Circuit Breaker offers thermal magnetic protection, ensuring reliable circuit safeguarding. It is equipped with dual-break rotating contacts that minimize peak current during a short-circuit fault. It comes come with an integral push-to-trip button in the cover for manual tripping. The unit mount construction allows for flexible installation with traditional back pan mounting using screws or integrated DIN rail mounting.
Unit has terminal nuts on both termination ends
Front cover confirms to IP40
Mechanical durability 15000 cycles conforming to IEC 947 1
Electrical durability 10000 cycles conforming to IEC 947 1
