Schneider Electric, PowerPact, BDF Molded Case Circuit Breaker 2-Pole 100 A, Breaking Capacity 14 kA, Clip-on

View all MCCBs

Subtotal (1 unit)*

£538.95

(exc. VAT)

£646.74

(inc. VAT)

Add to Basket
Select or type quantity
Orders below £50.00 (exc. VAT) cost £6.95.
Temporarily out of stock
  • Shipping from 15 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£538.95

*price indicative

RS Stock No.:
345-256
Mfr. Part No.:
BDF26100
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Product Type

Molded Case Circuit Breaker

Range

PowerPact

Series

BDF

Number of Poles

2

Current Rating

100 A

Breaking Capacity

14kA

Mount Type

Clip-on

Rated AC Voltage

525 V ac

Rated DC Voltage

250 V dc

Terminal Type

Nut Terminal

Width

54 mm

Depth

80mm

Height

137mm

Standards/Approvals

GB 14048. EN, IEC 6094751, IEC 60947 UL 489 CSA C. 5EN

Tripping Characteristics

Thermomagnetic

Tripping Mechanism

Thermal Magnetic

COO (Country of Origin):
MX

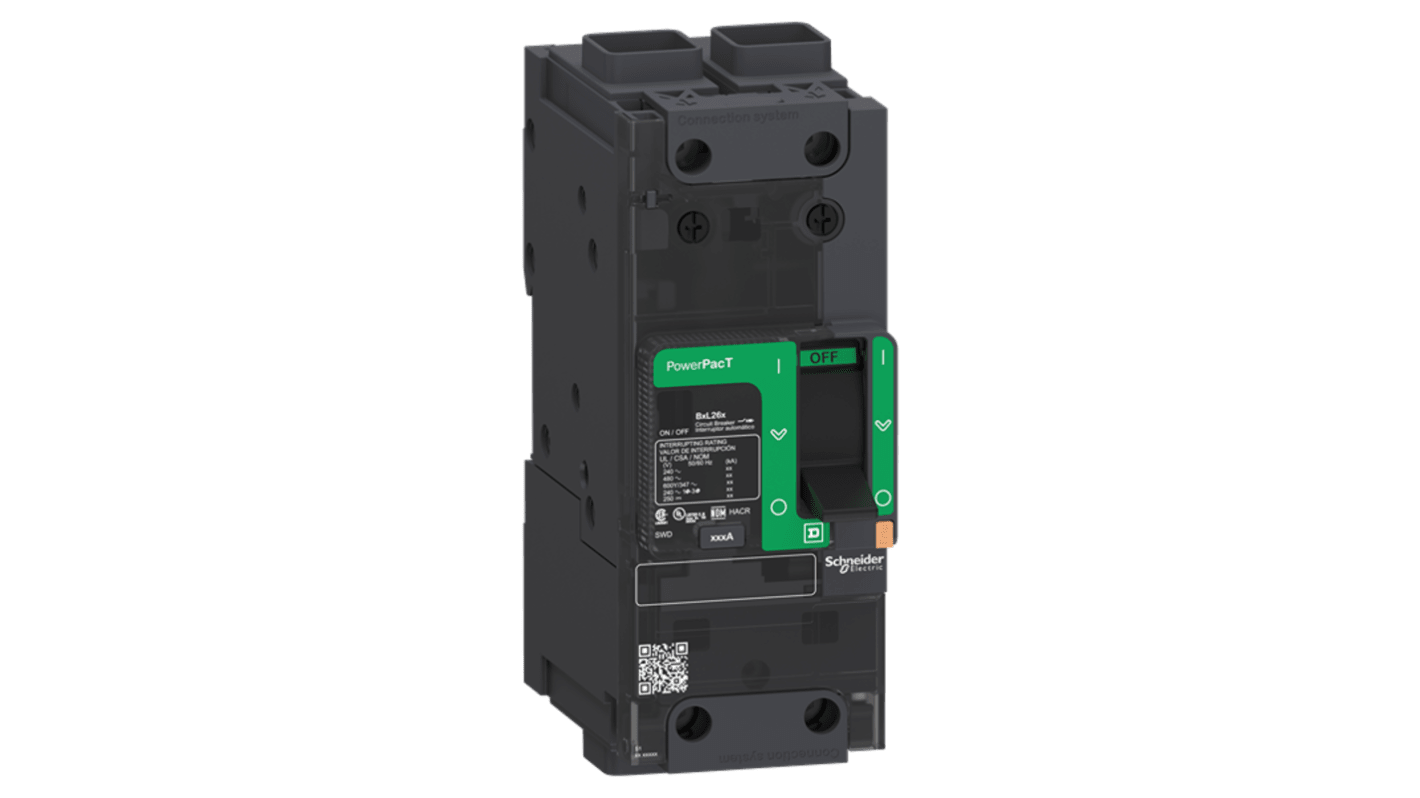

The Schneider Electric Circuit Breaker offers thermal magnetic protection, ensuring reliable circuit safeguarding. It is equipped with dual-break rotating contacts that minimize peak current during a short-circuit fault. It comes come with an integral push-to-trip button in the cover for manual tripping. The unit mount construction allows for flexible installation with traditional back pan mounting using screws or integrated DIN rail mounting.

Unit has terminal nuts on both termination ends

Front cover confirms to IP40

Mechanical durability 15000 cycles conforming to IEC 947 1

Electrical durability 10000 cycles conforming to IEC 947 1
