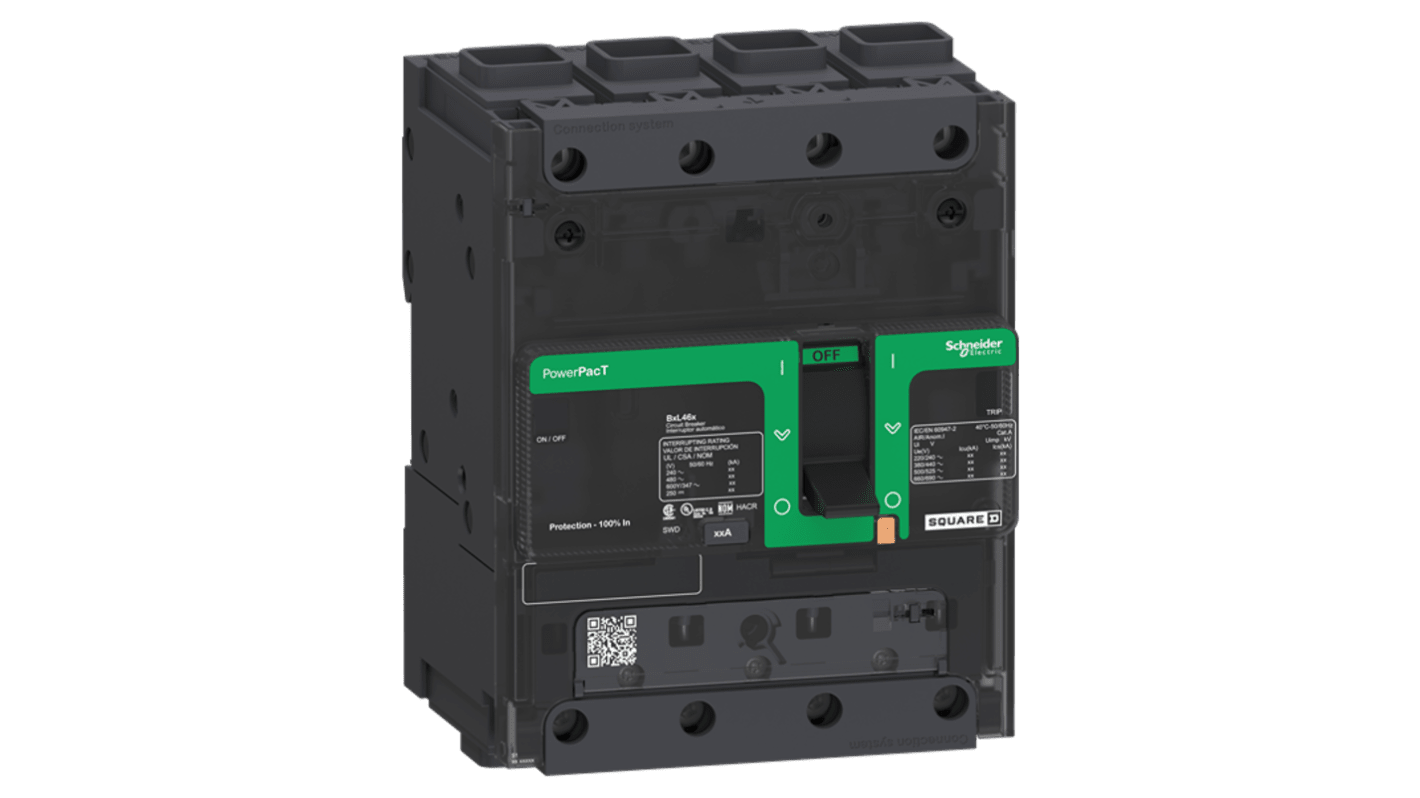

Schneider Electric, PowerPact, PowerPact Molded Case Circuit Breaker 4-Pole 40A, Breaking Capacity 100 kA, DIN Rail,
- RS Stock No.:
- 341-148
- Mfr. Part No.:
- BJF46040
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£1,307.14
(exc. VAT)
£1,568.57
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 24 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,307.14 |
*price indicative
- RS Stock No.:
- 341-148
- Mfr. Part No.:
- BJF46040
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Range | PowerPact | |
| Product Type | Molded Case Circuit Breaker | |
| Series | BJF | |
| Number of Poles | 4 | |
| Current Rating | 40A | |
| Breaking Capacity | 100kA | |
| Rated AC Voltage | 690V ac | |
| Mount Type | DIN Rail, Screw | |
| Terminal Type | Nut | |
| Width | 108mm | |
| Standards/Approvals | CSA C22.2 No 5 NEMA AB1 EN IEC 60947-2 UL 489 GB 14048.2 EN IEC 60947-5-1 NMX J-266 | |
| Depth | 80mm | |
| Height | 137mm | |
| Tripping Mechanism | Acetic Acid | |
| Reset Actuator Type | Toggle | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Range PowerPact | ||
Product Type Molded Case Circuit Breaker | ||
Series BJF | ||
Number of Poles 4 | ||
Current Rating 40A | ||
Breaking Capacity 100kA | ||
Rated AC Voltage 690V ac | ||
Mount Type DIN Rail, Screw | ||
Terminal Type Nut | ||
Width 108mm | ||
Standards/Approvals CSA C22.2 No 5 NEMA AB1 EN IEC 60947-2 UL 489 GB 14048.2 EN IEC 60947-5-1 NMX J-266 | ||
Depth 80mm | ||
Height 137mm | ||
Tripping Mechanism Acetic Acid | ||
Reset Actuator Type Toggle | ||
- COO (Country of Origin):
- MX
The Schneider Electric Circuit Breaker offers thermal magnetic protection, ensuring reliable circuit safeguarding. It is equipped with dual-break rotating contacts that minimize peak current during a short-circuit fault. It comes come with an integral push-to-trip button in the cover for manual tripping. The unit mount construction allows for flexible installation with traditional back pan mounting using screws or integrated DIN rail mounting.
Unit has terminal nuts on both termination ends
Front cover confirms to IP40
Mechanical durability 15000 cycles conforming to IEC 947 1
Electrical durability 10000 cycles conforming to IEC 947 1
