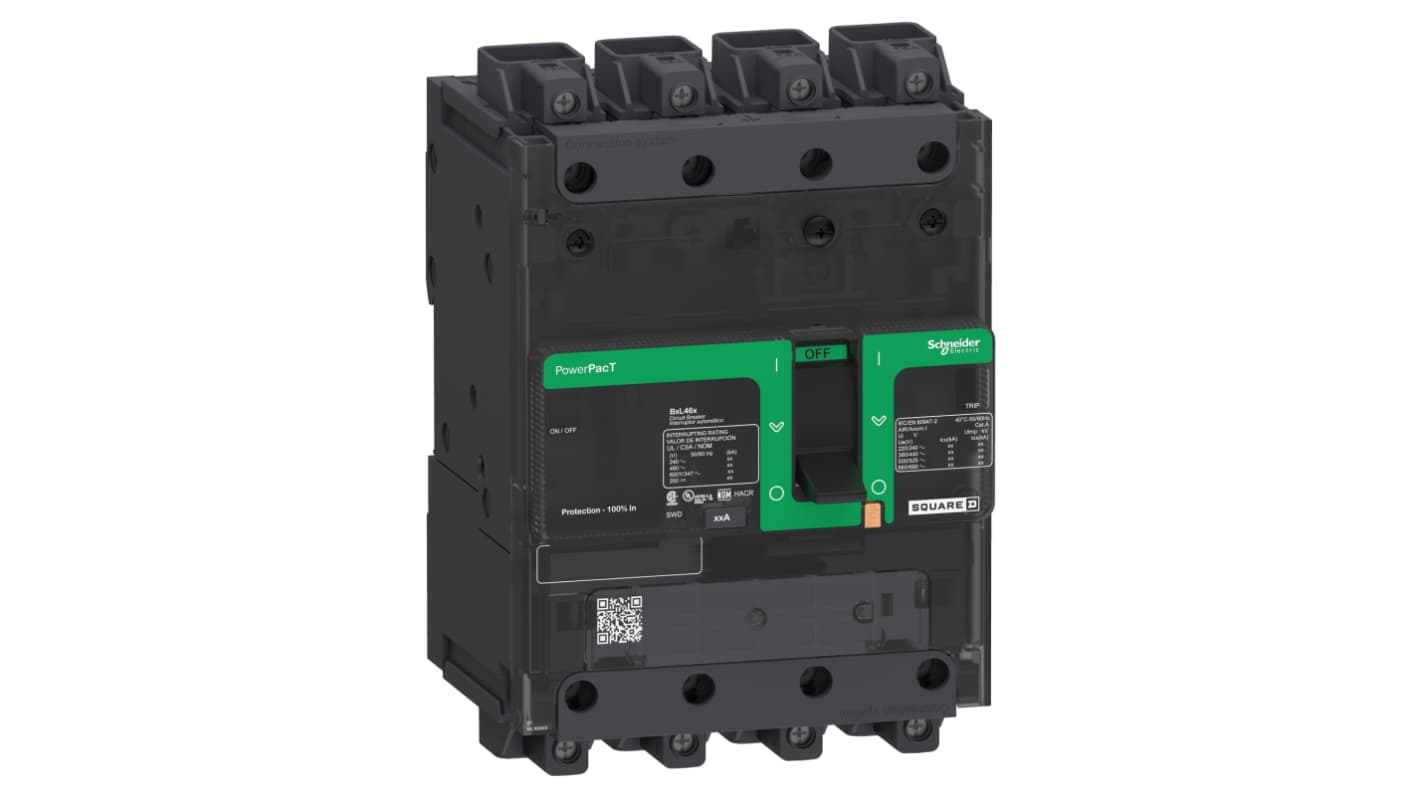

Schneider Electric, PowerPact, BJL Molded Case Circuit Breaker 4-Pole 20 A, Breaking Capacity 100 kA, DIN Rail, Screw

View all MCCBs

Subtotal (1 unit)*

£503.61

(exc. VAT)

£604.33

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 06 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£503.61

*price indicative

RS Stock No.:
444-276
Mfr. Part No.:
BJL46020LU
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Product Type

Molded Case Circuit Breaker

Range

PowerPact

Series

BJL

Number of Poles

4

Current Rating

20 A

Breaking Capacity

100kA

Mount Type

DIN Rail, Screw

Rated AC Voltage

600 V ac

Rated DC Voltage

250 V

Terminal Type

Lug Terminal

Height

5.4in

Standards/Approvals

UL 489, NMX J-266, NEMA AB1, GB 14048.2, EN/IEC 60947-5-1, EN/IEC 60947-2, CSA C22.2 No 5

Width

108 mm

Depth

80mm

Tripping Characteristics

TMD, Thermomagnetic

Tripping Mechanism

Thermal Magnetic

Reset Actuator Type

Toggle

COO (Country of Origin):
MX
The Schneider Electric Circuit breaker features thermal magnetic trip unit technology that combines thermal overload and magnetic short-circuit protection for reliable electrical safety. It uses a toggle control type for easy operation and has a continuous current rating of 80%, ensuring consistent performance under load. The device offers high mechanical durability, rated for 15,000 operating cycles, meeting IEC 947-1 standards for long-term reliability in industrial applications.

UL IEC CCC certifications

Front cover IP40 IEC 60529

IK07 conforming to IEC 62262
