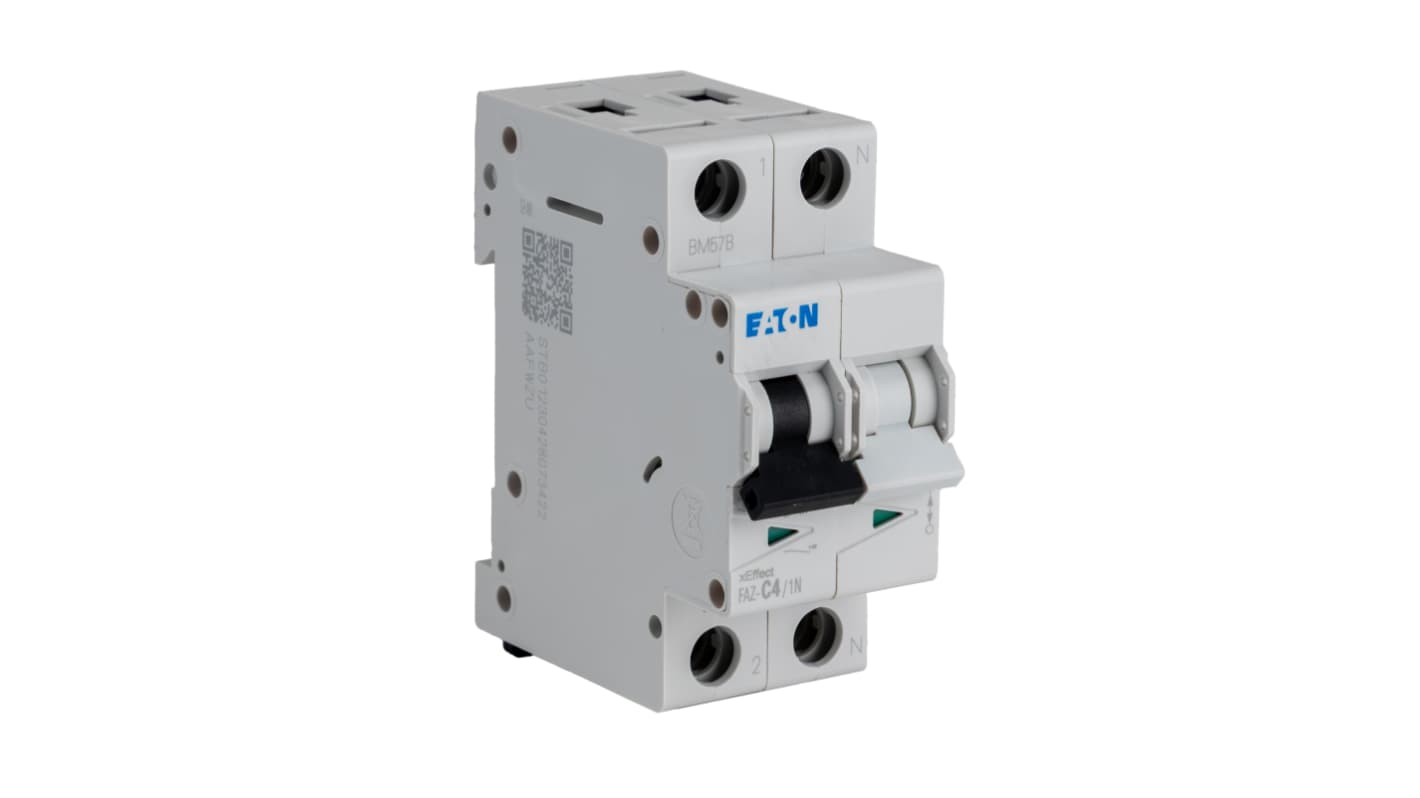

Eaton xEffect MCB, 1+N, 4A Curve C, 240V AC, 48V DC, 10 kA Breaking Capacity
- RS Stock No.:
- 922-7080
- Mfr. Part No.:
- 278666 FAZ-C4/1N
- Brand:
- Eaton
Subtotal (1 unit)*
£66.72
(exc. VAT)
£80.06
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £66.72 |
*price indicative
- RS Stock No.:
- 922-7080
- Mfr. Part No.:
- 278666 FAZ-C4/1N
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Number of Poles | 1+N | |
Current Rating | 4A | |
Tripping Characteristics | Type C | |
Rated AC Voltage | 240V | |
Rated DC Voltage | 48V | |
Breaking Capacity at Maximum Voltage Rating | 10 kA | |
Range | xEffect | |
Circuit Breaker Type | MCB | |
Length | 17.8mm | |
Width | 66mm | |
Mounting Style | DIN Rail Mount | |
Depth | 80mm | |
Model Number | 278666 | |
Break Time | Instantaneous | |
Reset Actuator Type | Toggle Switch | |
Application | Advanced Commercial and Industrial | |
Terminal Contact Type | Screw | |
Tripping Mechanism | Thermal-Magnetic | |
Select all | ||
---|---|---|
Brand Eaton | ||
Number of Poles 1+N | ||
Current Rating 4A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 240V | ||
Rated DC Voltage 48V | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Range xEffect | ||
Circuit Breaker Type MCB | ||
Length 17.8mm | ||
Width 66mm | ||
Mounting Style DIN Rail Mount | ||
Depth 80mm | ||
Model Number 278666 | ||
Break Time Instantaneous | ||
Reset Actuator Type Toggle Switch | ||
Application Advanced Commercial and Industrial | ||
Terminal Contact Type Screw | ||
Tripping Mechanism Thermal-Magnetic | ||
Eaton MCB, 10kA Breaking Capacity, Type-C Tripping - 278666 FAZ-C4/1N
When currents run high, this MCB from Eaton is on hand to lighten your load. It works quickly to break electrical circuits in the event of overcurrent conditions and sudden voltage increases. Type-C tripping characteristics mean it shuts off the power at three to five times its rated current of 4A for protection against big surges. A breaking capacity of 10kA means the MCB performs reliably across a broad current range without suffering damage, making it the ideal companion for high-load electrical distribution boards. Mount in a flash by snapping it onto your standard DIN rail.
Features & Benefits
• Operates reliably in a temperature range between -5°C and +40°C
• IP20 rating indicates protection against solid objects over 12mm, including your fingers
• Maximum voltage rating of 240V AC means its safely insulated for electrical applications
• Mechanical lifespan of 10,000 switching cycles makes it reliable for long-term use
• Thermal-magnetic tripping mechanism for instant shutdown, minimising damage to your systems
• IP20 rating indicates protection against solid objects over 12mm, including your fingers
• Maximum voltage rating of 240V AC means its safely insulated for electrical applications
• Mechanical lifespan of 10,000 switching cycles makes it reliable for long-term use
• Thermal-magnetic tripping mechanism for instant shutdown, minimising damage to your systems
How wide is this MCB?
This single-pole breaker has a width of just 17.7mm, so it fits snugly inside your equipment or panel.
Note
Eaton formerly known as Moeller
