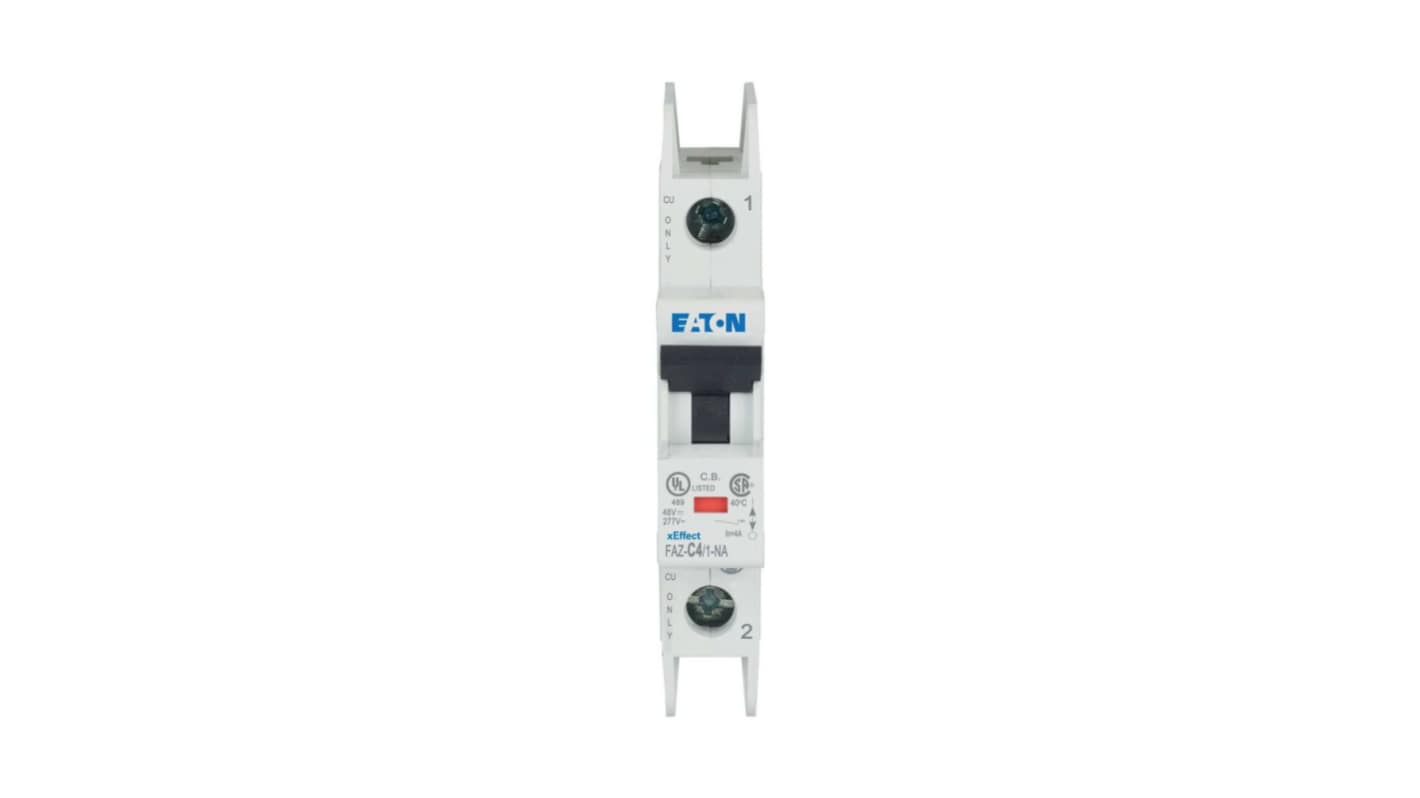

Eaton xEffect MCB, 1P, 4A Curve C, 240 → 415V AC, 48V DC, 10 kA Breaking Capacity
- RS Stock No.:
- 922-6894
- Mfr. Part No.:
- 102082 FAZ-C4/1-NA
- Brand:
- Eaton
Subtotal (1 unit)*
£35.18
(exc. VAT)
£42.22
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship
- Plus 6 unit(s) ready to ship from another location
- Plus 38 unit(s) shipping from 11 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £35.18 |
*price indicative
- RS Stock No.:
- 922-6894
- Mfr. Part No.:
- 102082 FAZ-C4/1-NA
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Number of Poles | 1 | |
Current Rating | 4A | |
Tripping Characteristics | Type C | |
Rated AC Voltage | 240 → 415V | |
Rated DC Voltage | 48V | |
Breaking Capacity at Maximum Voltage Rating | 10 kA | |
Range | xEffect | |
Circuit Breaker Type | MCB | |
Length | 17.8mm | |
Width | 66mm | |
Mounting Style | DIN Rail Mount | |
Depth | 80mm | |
Tripping Mechanism | Thermal-Magnetic | |
Terminal Contact Type | Screw | |
Reset Actuator Type | Toggle Switch | |
Break Time | Instantaneous | |
Select all | ||
---|---|---|
Brand Eaton | ||
Number of Poles 1 | ||
Current Rating 4A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 240 → 415V | ||
Rated DC Voltage 48V | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Range xEffect | ||
Circuit Breaker Type MCB | ||
Length 17.8mm | ||
Width 66mm | ||
Mounting Style DIN Rail Mount | ||
Depth 80mm | ||
Tripping Mechanism Thermal-Magnetic | ||
Terminal Contact Type Screw | ||
Reset Actuator Type Toggle Switch | ||
Break Time Instantaneous | ||
Eaton MCB, 4A Current Rating, Type C Tripping Characteristics - 102082 FAZ-C4/1-NA
This MCB is a compact thermal-magnetic circuit breaker designed for reliable electrical protection. It features a single pole configuration with a current rating of 4A, ideal for a diverse range of applications. Measuring 17.7mm in width and 105mm in length, it is suitable for DIN rail mounting, making it a versatile choice for various installations.
Features & Benefits
• Instantaneous break time ensures quick fault response
• Type C characteristics provide protection against overloads
• Designed for 230V to 400V AC applications for flexibility
• 10 kA breaking capacity handles high fault levels
• Screw terminal design allows for easy and secure connections
• Compact size optimises space within electrical panels
• Type C characteristics provide protection against overloads
• Designed for 230V to 400V AC applications for flexibility
• 10 kA breaking capacity handles high fault levels
• Screw terminal design allows for easy and secure connections
• Compact size optimises space within electrical panels
Applications
• Ideal for commercial and industrial distribution boards
• Used in automation and control systems for added safety
• Suitable for involving motors and transformers
• Commonly deployed in residential electrical systems for protection
• Used in automation and control systems for added safety
• Suitable for involving motors and transformers
• Commonly deployed in residential electrical systems for protection
What tripping characteristics should I consider when using this device?
The Type C tripping characteristics are ideal for applications with high inrush currents, such as motors, ensuring that they trip under overload conditions while remaining stable during normal operation.
How does this circuit breaker respond to faults in an electrical circuit?
It utilises a thermal-magnetic tripping mechanism to provide both overload and short-circuit protection, ensuring the circuit is interrupted immediately in the event of a fault, thus enhancing electrical safety.
What is the significance of the breaking capacity for this circuit breaker?
The 10 kA breaking capacity indicates its ability to safely interrupt a fault current of up to 10,000 amps, making it suitable for high-demand environments where fault levels may be significant.
Note
Eaton formerly known as Moeller
