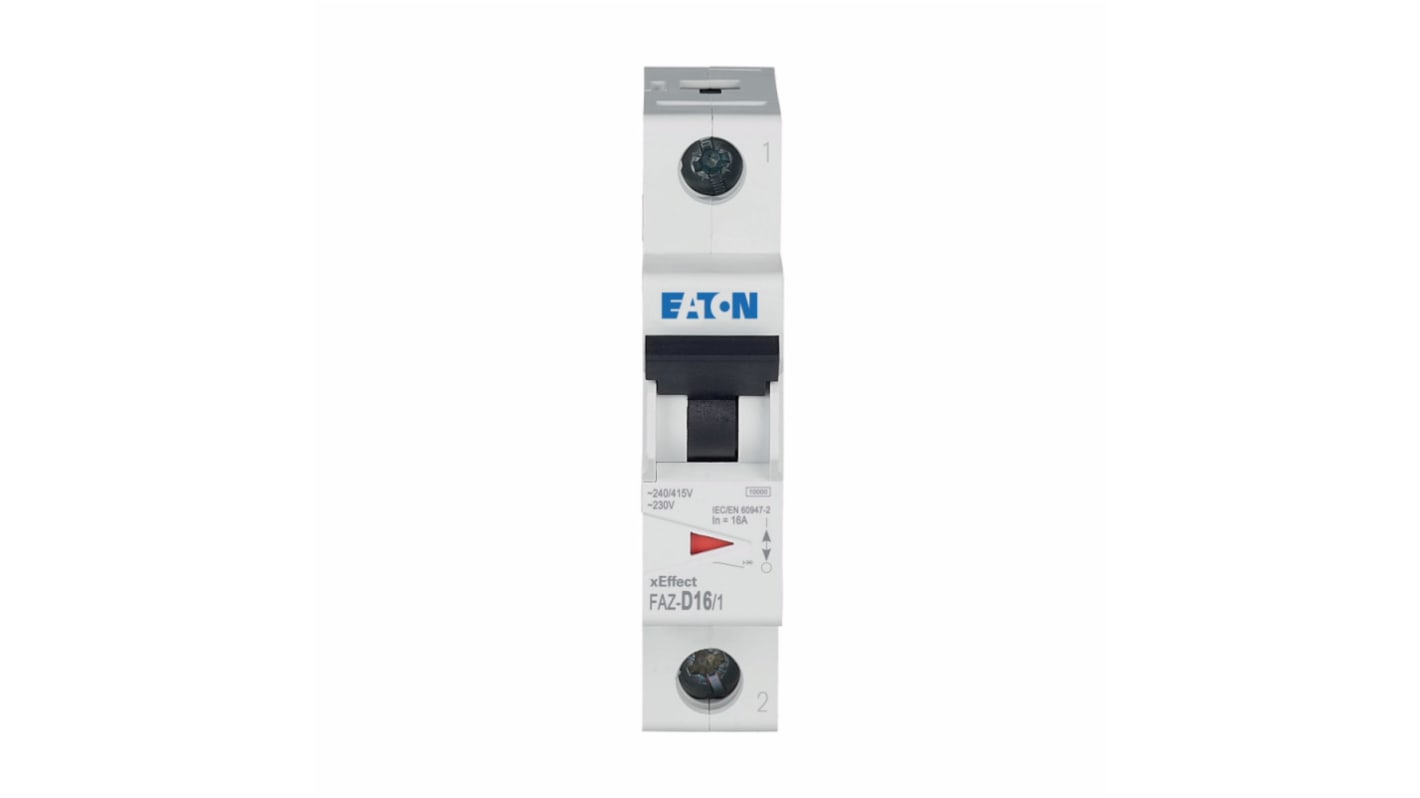

Eaton xEffect MCB, 1P, 16A Curve D, 240V AC, 48V DC, 10 kA Breaking Capacity
- RS Stock No.:
- 922-7049
- Mfr. Part No.:
- 278584 FAZ-D16/1
- Brand:
- Eaton
Subtotal (1 unit)*
£23.96
(exc. VAT)
£28.75
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
- Plus 12 unit(s) shipping from 04 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £23.96 |
*price indicative
- RS Stock No.:
- 922-7049
- Mfr. Part No.:
- 278584 FAZ-D16/1
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Number of Poles | 1 | |
| Current Rating | 16A | |
| Tripping Characteristics | Type D | |
| Rated AC Voltage | 240V | |
| Rated DC Voltage | 48V | |
| Breaking Capacity at Maximum Voltage Rating | 10 kA | |
| Range | xEffect | |
| Circuit Breaker Type | MCB | |
| Width | 66mm | |
| Length | 17.8mm | |
| Mounting Style | DIN Rail Mount | |
| Depth | 80mm | |
| Break Time | Instantaneous | |
| Tripping Mechanism | Thermal-Magnetic | |
| Terminal Contact Type | Screw | |
| Reset Actuator Type | Toggle Switch | |
Select all | ||
|---|---|---|
Brand Eaton | ||
Number of Poles 1 | ||
Current Rating 16A | ||
Tripping Characteristics Type D | ||
Rated AC Voltage 240V | ||
Rated DC Voltage 48V | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Range xEffect | ||
Circuit Breaker Type MCB | ||
Width 66mm | ||
Length 17.8mm | ||
Mounting Style DIN Rail Mount | ||
Depth 80mm | ||
Break Time Instantaneous | ||
Tripping Mechanism Thermal-Magnetic | ||
Terminal Contact Type Screw | ||
Reset Actuator Type Toggle Switch | ||
Eaton MCB, 60Hz Maximum Frequency Rating, 110g Weight - FAZ Series - 278584 FAZ-D16/1
Boost your workplace safety with this MCB from Eaton. The nifty gadget detects electrical faults and trips power feeds to safeguard against damage and injuries. You can count on fast short-circuit interruption to block let-through and overload currents, which will help you reduce downtime. For an added layer of protection, the device breaks a feed path even if someone holds the switch in the ON position. A compact mounting width of 17.5mm makes fitting it on densely-packed distribution boards a breeze. You'll find this device commonly used with medical imaging equipment, power supplies and industrial motors.
Features & Benefits
• CE mark indicates quality approval for use in Europe
• IEC/EN 60947-2 standard compliance lets you know the device passed safety tests applicable to MCBs
• Maximum operating temperature of +75°C for use in tough conditions
• IEC/EN 60947-2 standard compliance lets you know the device passed safety tests applicable to MCBs
• Maximum operating temperature of +75°C for use in tough conditions
How do I install this MCB?
You can install this device in a flash, thanks to its DIN-rail mounting capability. It simply clips on without the need for tools.
What tripping mechanism does this MCB have?
It has a thermal-magnetic tripping mechanism to guard against short circuits and current overloads.
Note
Eaton formerly known as Moeller
