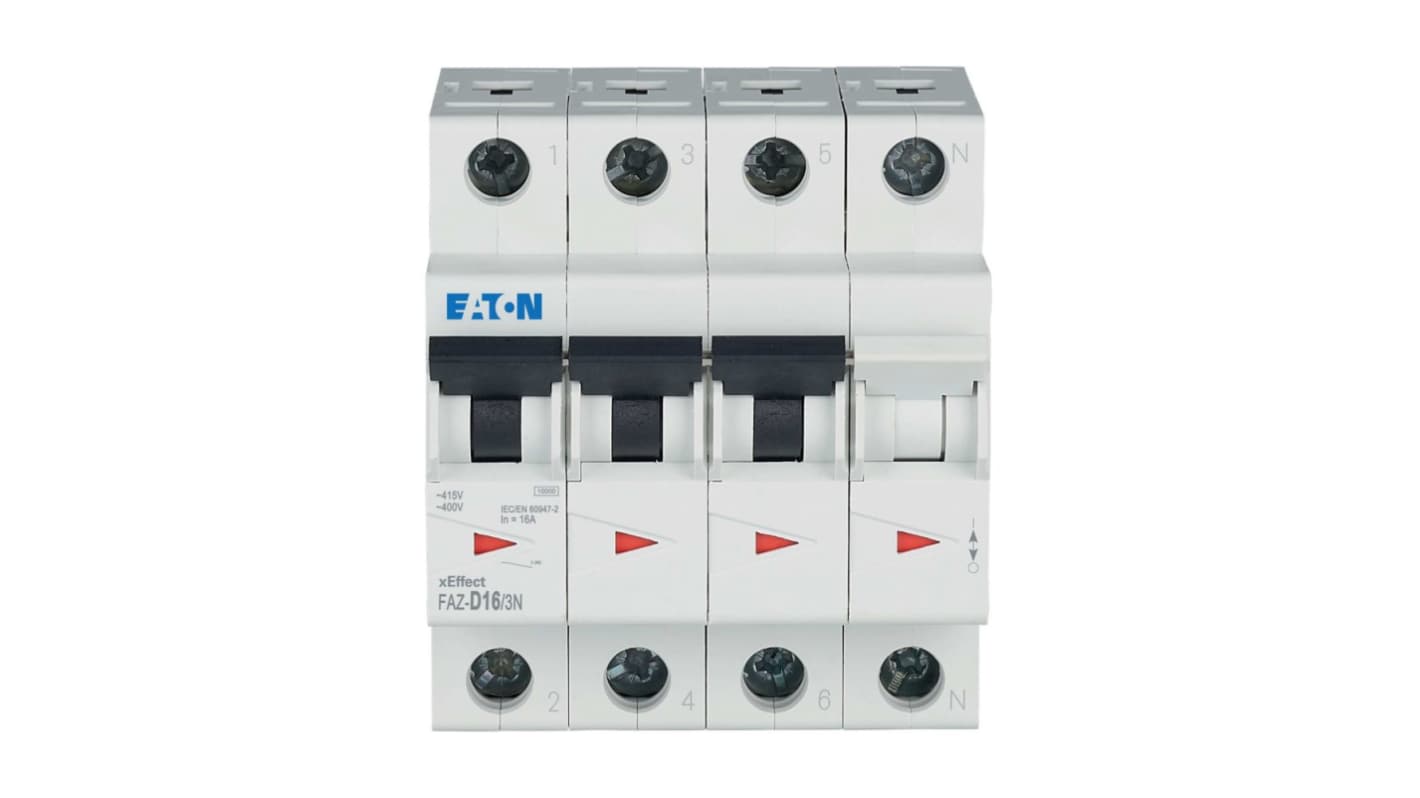

Eaton xEffect FAZ Miniature Circuit Breaker, 3-Pole, 16 A, Type D, 400 V ac AC, 60 V DC, 10 kA Breaking Capacity
- RS Stock No.:
- 256-735
- Mfr. Part No.:
- 278998 FAZ-D16/3N
- Brand:
- Eaton
Subtotal (1 unit)*
£197.41
(exc. VAT)
£236.89
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £197.41 |
*price indicative
- RS Stock No.:
- 256-735
- Mfr. Part No.:
- 278998 FAZ-D16/3N
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Number of Poles | 3 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 16 A | |
| Tripping Characteristics | Type D | |
| Rated AC Voltage | 400 V ac | |
| Rated DC Voltage | 60 V | |
| Mount Type | Top Hat Rail | |
| Breaking Capacity | 10kA | |
| Range | xEffect | |
| Series | FAZ | |
| Terminal Type | Twin-Purpose Terminal | |
| IP Rating | IP20, IP40 | |
| Standards/Approvals | EN45545-2, IEC 61373, IEC/EN 60898, IEC/EN 60947-2 | |
| Width | 17.5 mm | |
| Height | 80mm | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Number of Poles 3 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 16 A | ||
Tripping Characteristics Type D | ||
Rated AC Voltage 400 V ac | ||
Rated DC Voltage 60 V | ||
Mount Type Top Hat Rail | ||
Breaking Capacity 10kA | ||
Range xEffect | ||
Series FAZ | ||
Terminal Type Twin-Purpose Terminal | ||
IP Rating IP20, IP40 | ||
Standards/Approvals EN45545-2, IEC 61373, IEC/EN 60898, IEC/EN 60947-2 | ||
Width 17.5 mm | ||
Height 80mm | ||
- COO (Country of Origin):
- RO
The Eaton Miniature Circuit Breaker from the Moeller series is designed to provide reliable protection for electrical circuits, ensuring safety and efficiency in advanced commercial and industrial applications. With a robust design, this 3 pole + N breaker offers a tripping characteristic of D, enabling it to handle high inrush currents while reliably protecting your systems from overloads and short circuits. Its compact dimensions and inherent user friendly features make it a perfect choice for diverse settings, delivering optimum performance across various environments.
Concurrently switches N neutral for increased flexibility
Incorporates enhanced safety features for user protection
Built in capacity for high electrical loads to ensure reliability
Adheres to stringent compliance and certification standards
Equipped with twin purpose terminals for versatile connection options
In offers excellent resistance to environmental factors ensuring longevity
