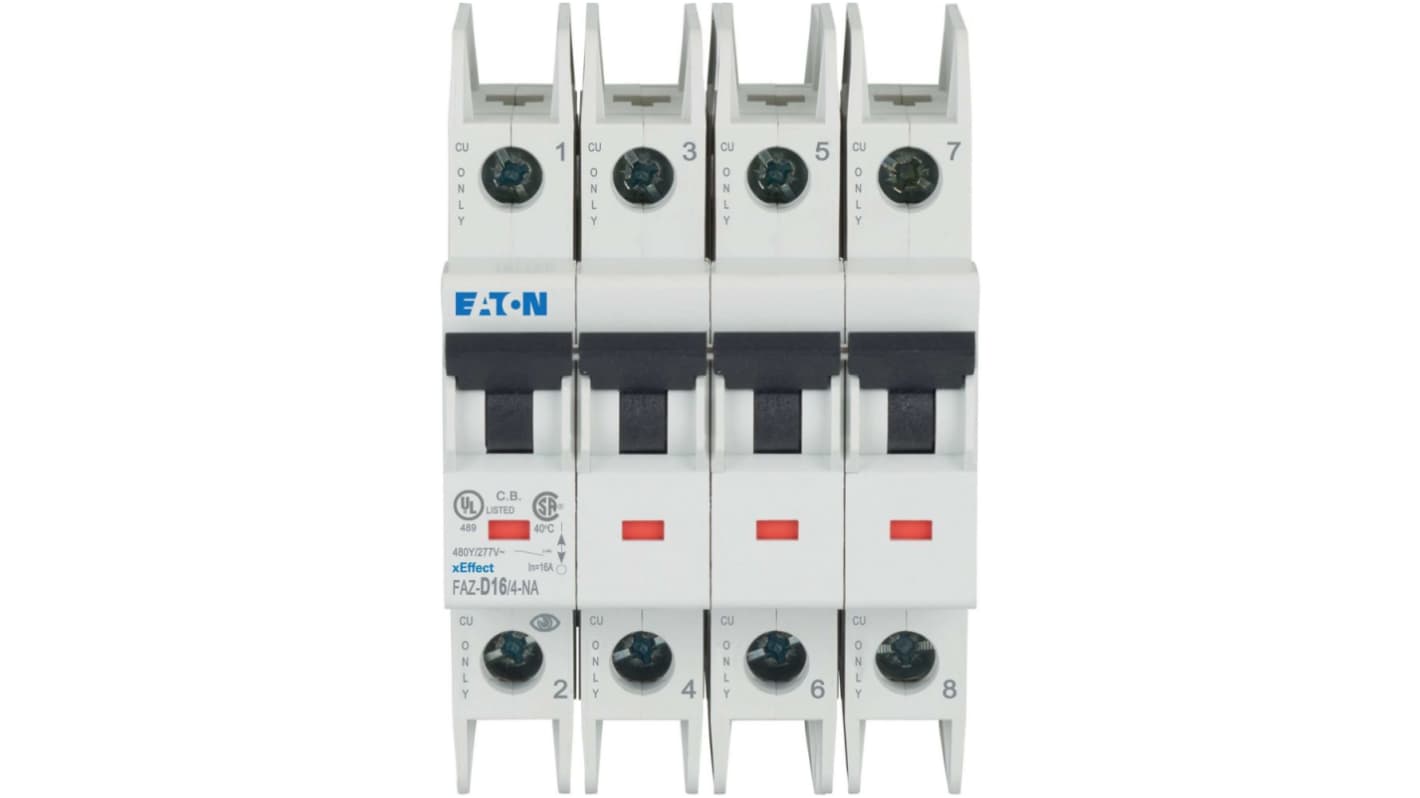

Eaton xEffect FAZ Miniature Circuit Breaker, 4-Pole, 16 A, Type D, 240 V ac AC, 60 V DC, 15 kA Breaking Capacity
- RS Stock No.:
- 246-829
- Mfr. Part No.:
- 190837 FAZ-D16/4-NA
- Brand:
- Eaton
Subtotal (1 unit)*
£235.59
(exc. VAT)
£282.71
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 06 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £235.59 |
*price indicative
- RS Stock No.:
- 246-829
- Mfr. Part No.:
- 190837 FAZ-D16/4-NA
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Number of Poles | 4 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 16 A | |
| Tripping Characteristics | Type D | |
| Rated AC Voltage | 240 V ac | |
| Rated DC Voltage | 60 V | |
| Mount Type | Top Hat Rail | |
| Breaking Capacity | 15kA | |
| Range | xEffect | |
| Series | FAZ | |
| IP Rating | IP20, IP40 | |
| Depth | 105mm | |
| Height | 75.5mm | |
| Width | 70.8 mm | |
| Standards/Approvals | CSA (Class . 1401), CE, CSA (File . 0445), UL, UL 489, rth America (UL,CSA ), CSA C. . 5, RoHS, CSAC. . 509, EN45545, IECEN 60947, IEC 617, suitable as BCPD, IEC 60947, UL (File . E519) | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Number of Poles 4 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 16 A | ||
Tripping Characteristics Type D | ||
Rated AC Voltage 240 V ac | ||
Rated DC Voltage 60 V | ||
Mount Type Top Hat Rail | ||
Breaking Capacity 15kA | ||
Range xEffect | ||
Series FAZ | ||
IP Rating IP20, IP40 | ||
Depth 105mm | ||
Height 75.5mm | ||
Width 70.8 mm | ||
Standards/Approvals CSA (Class . 1401), CE, CSA (File . 0445), UL, UL 489, rth America (UL,CSA ), CSA C. . 5, RoHS, CSAC. . 509, EN45545, IECEN 60947, IEC 617, suitable as BCPD, IEC 60947, UL (File . E519) | ||
RoHS Status: Exempt
- COO (Country of Origin):
- RO
The Eaton Miniature Circuit Breaker from the Moeller series has been meticulously designed to meet the demands of contemporary electrical systems. With a robust construction and advanced engineering, it ensures high reliability and safety in various applications, making it an essential component for commercial and industrial environments. The four pole configuration allows for comprehensive coverage, adeptly handling feeder and branch circuits with ease.
Meets RoHS standards ensuring environmental compliance
High rated short circuit breaking capacity enhancing safety
Mechanical and electrical lifespan ensures long term reliability
Tripping characteristic enables rapid fault detection and interruption
Allows for connection of multi wired conductors improving versatility
Specify for systems requiring advanced compliance measures
