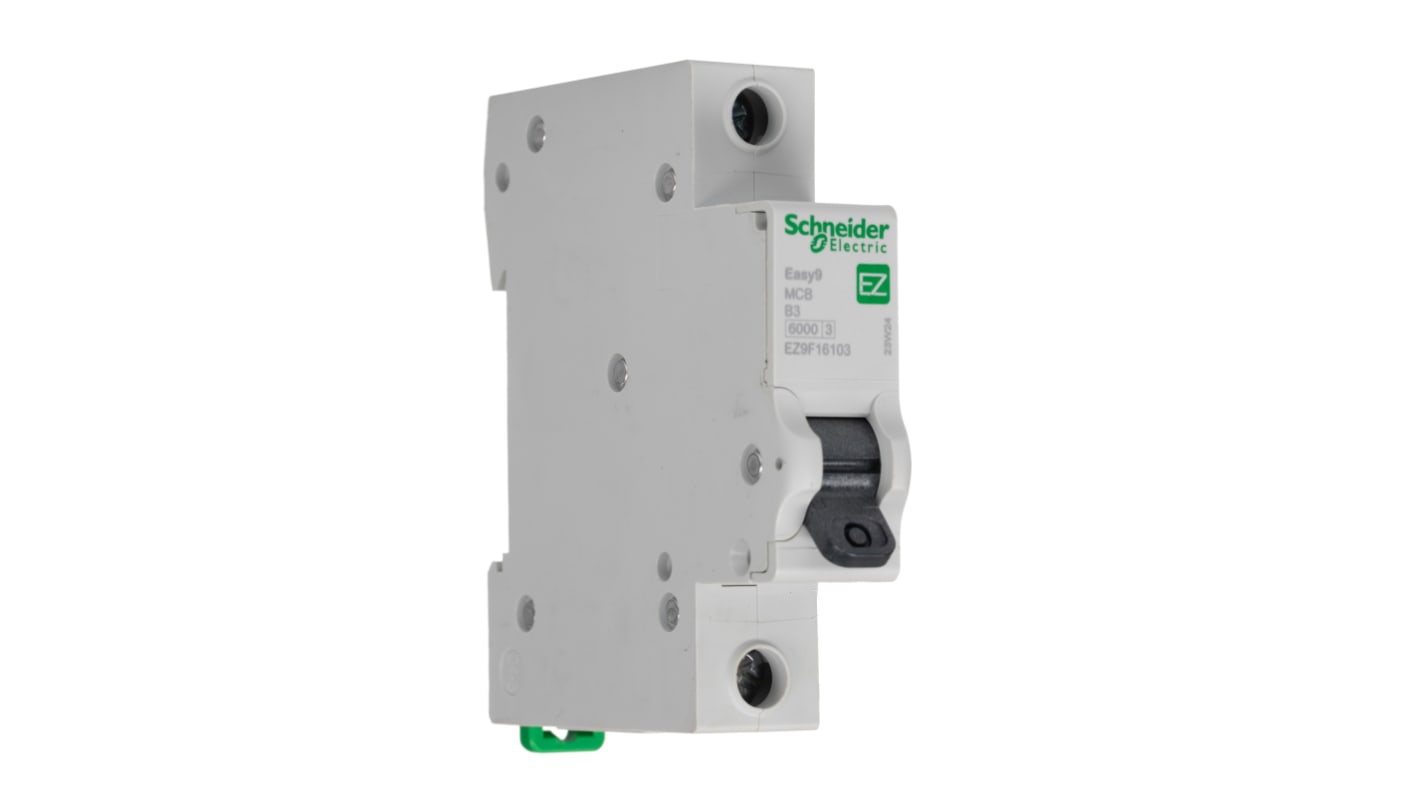

Schneider Electric Easy9 EZ9 Miniature Circuit Breaker, 1-Pole, 3 A, Type B, 230 V ac AC, 6 kA Breaking Capacity

RS Stock No.:: 850-8596
Mfr. Part No.:: EZ9F16103
Brand:: Schneider Electric

Schneider Electric Easy9 EZ9 Miniature Circuit Breaker, 1-Pole, 3 A, Type B, 230 V ac AC, 6 kA Breaking Capacity

Subtotal (1 unit)*

£4.03

(exc. VAT)

£4.84

(inc. VAT)

Stock information currently inaccessible - Please check back later

Units	Per unit
1 +	£4.03

*price indicative

RS Stock No.:: 850-8596
Mfr. Part No.:: EZ9F16103
Brand:: Schneider Electric

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schneider Electric
	Number of Poles	1
	Product Type	Miniature Circuit Breaker
	Current Rating	3 A
	Tripping Characteristics	Type B
	Rated AC Voltage	230 V ac
	Breaking Capacity	6kA
	Mount Type	DIN Rail
	Range	Easy9
	Series	EZ9
	Terminal Type	Tunnel
	IP Rating	IP20
	Standards/Approvals	CE, BS EN 60898-1
	Depth	72mm
	Width	18 mm
	Height	82mm
	Reset Actuator Type	Toggle Switch
	Tripping Mechanism	Thermal Magnetic

	Select all
	Brand Schneider Electric
	Number of Poles 1
	Product Type Miniature Circuit Breaker
	Current Rating 3 A
	Tripping Characteristics Type B
	Rated AC Voltage 230 V ac
	Breaking Capacity 6kA
	Mount Type DIN Rail
	Range Easy9
	Series EZ9
	Terminal Type Tunnel
	IP Rating IP20
	Standards/Approvals CE, BS EN 60898-1
	Depth 72mm
	Width 18 mm
	Height 82mm
	Reset Actuator Type Toggle Switch
	Tripping Mechanism Thermal Magnetic

RoHS Status: Not Applicable

COO (Country of Origin):: IN

Schneider Electric MCB, 230V AC Rated Voltage, Toggle Switch Reset Actuator - Easy9 Series - EZ9F16103

Want to cut the risk of electric shocks out of the equation? Install this single-phase MCB from Schneider Electric to protect domestic equipment from power surges and short circuits. Its type-B tripping characteristics mean it's designed to trip at 5 to 10 times the rated current of 3A, making it a suitable option for use where spikes are likely to be small. It clips easily onto a DIN rail for quick installation in an electrical cabinet.

Features & Benefits

• Voltage rating of 230V AC makes it suitable for use with the UK mains supply

• Thermal-magnetic tripping mechanism trips quickly in the event of a short circuit

• Toggle switch makes it easy to reset

Applications

• Residential buildings

• Retail outlets

• Schools and colleges

How does a thermal-magnetic circuit breaker work?

A thermal-magnetic breaker like this one incorporates a bimetallic strip that expands at different rates when heated. In the event of an overload, the increase in current flowing through the strip heats it and causes it to bend. This gives you both instantaneous and time-delayed protection, allowing for inrush currents such as those needed to start motors, but responding immediately to short circuits.

Easy EZ9 Series MCB's, RCBO's, RCCB's and Accessories

The Easy9 product range is an affordable circuit protection solution that you can depend on. Schneider Electric work closely with worldwide electricians to make sure they bring you an excellent choice of user-friendly products designed to better support your business needs.

High Quality (100% designed by Schneider Electric)

User Friendly Design

Full Compliance with International IEC Standards 3rd Party Certification

Robust and Reliable Circuit Protection

Range Consists of Insulated Enclosures, Metal Enclosures, Switch-Disconnectors, RCCB's, MCB's, RCBO's and Accessories
