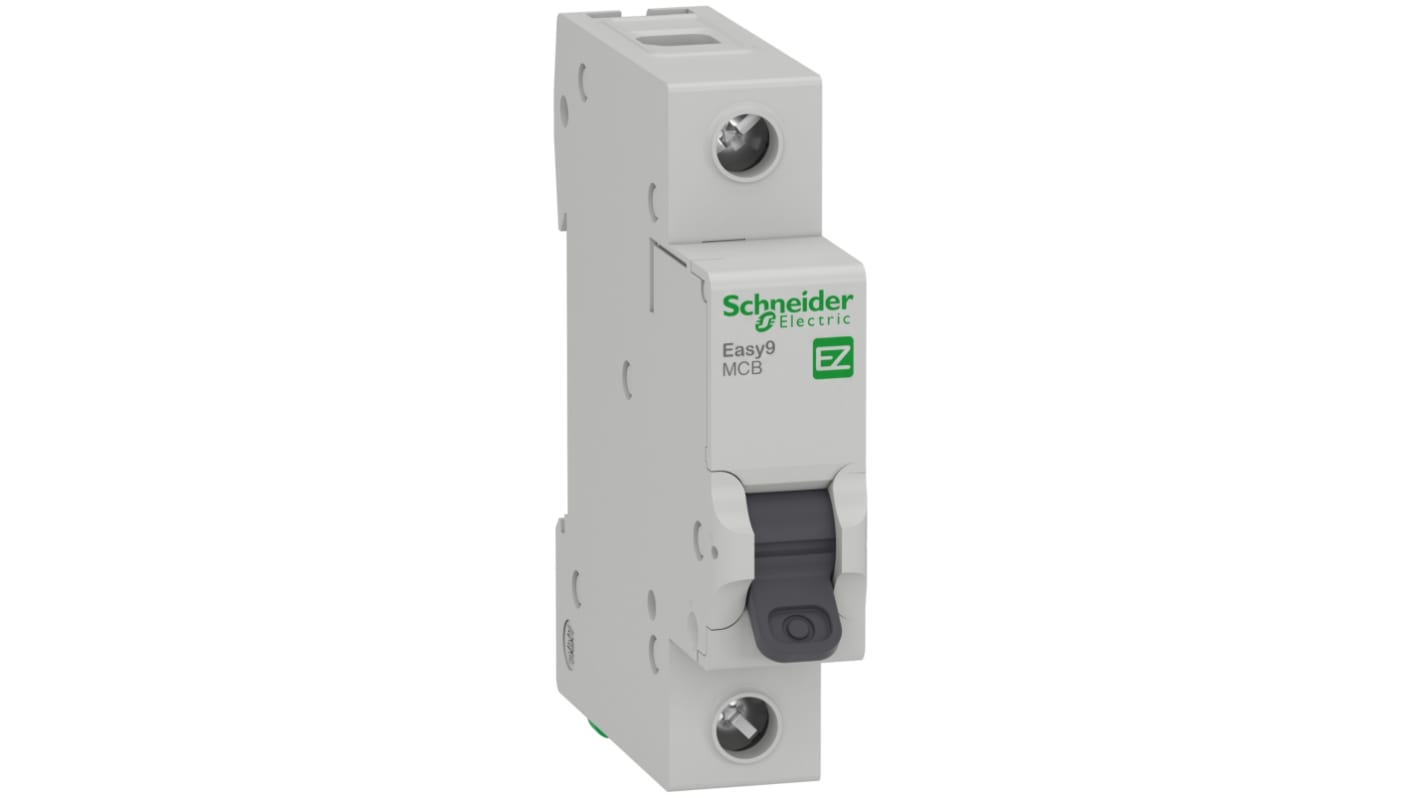

Schneider Electric Easy 9 EZ9 MCB, 1P, 10A Curve B, 230V AC, 6 kA Breaking Capacity

View all MCBs

Subtotal (1 unit)*

£4.03

(exc. VAT)

£4.84

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 65 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£4.03

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:
850-8593
Mfr. Part No.:
EZ9F16110
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Number of Poles

1

Current Rating

10A

Tripping Characteristics

Type B

Rated AC Voltage

230V

Breaking Capacity at Maximum Voltage Rating

6 kA

Range

Easy 9

Series

EZ9

Circuit Breaker Type

Residential MCB

Length

82mm

Width

18mm

Mounting Style

DIN Rail Mount

Depth

72mm

Better World Product

Yes

Better World Verification

Green Premium

Reset Actuator Type

Toggle Switch

Tripping Mechanism

Thermal-Magnetic

RoHS Status: Not Applicable

COO (Country of Origin):
IN

Schneider Electric EZ9 Series MCB, 10A, 6kA Breaking Capacity (at Maximum Voltage Rating) - EZ9F16110


This miniature circuit breaker provides essential protection in electrical distribution systems by automatically disconnecting circuits in the event of an overload or short circuit. Its thermal-magnetic mechanism effectively manages various electrical faults, making it suitable for a range of applications in both residential and commercial settings.

Features & Benefits


• Robust breaking capacity of 6kA for improved protection
• Type B characteristics ensure reliable tripping under standard conditions
• Thermal-magnetic technology responds effectively to overloads and faults
• Compact DIN rail mounting allows for simple installation in various panels
• Suitable for isolation and complies with safety standards
• Designed for a lifespan of 10,000 mechanical cycles

Applications


• Protects light circuits in residential environments
• Ideal for distribution boards in commercial setups
• Suitable for circuit protection within control panels
• Used in industrial settings to safeguard machinery

What types of circuits can this device protect?


It protects single-phase circuits typically found in residential and commercial applications.

How to install it on a DIN rail?


Clip it onto the DIN rail, ensuring proper alignment and a secure fit.

Does it require regular maintenance?


It is generally maintenance-free, but regular inspections for wear are recommended.

What should be tof it keeps tripping?


Investigate possible overloads or short circuits in the connected circuit before resetting.

Can it be used in outdoor applications?


It is not suitable for outdoor use without appropriate enclosures, as it has an IP20 rating.


Merlin Gerin - Easy 9 Series Miniature Circuit Breaker
