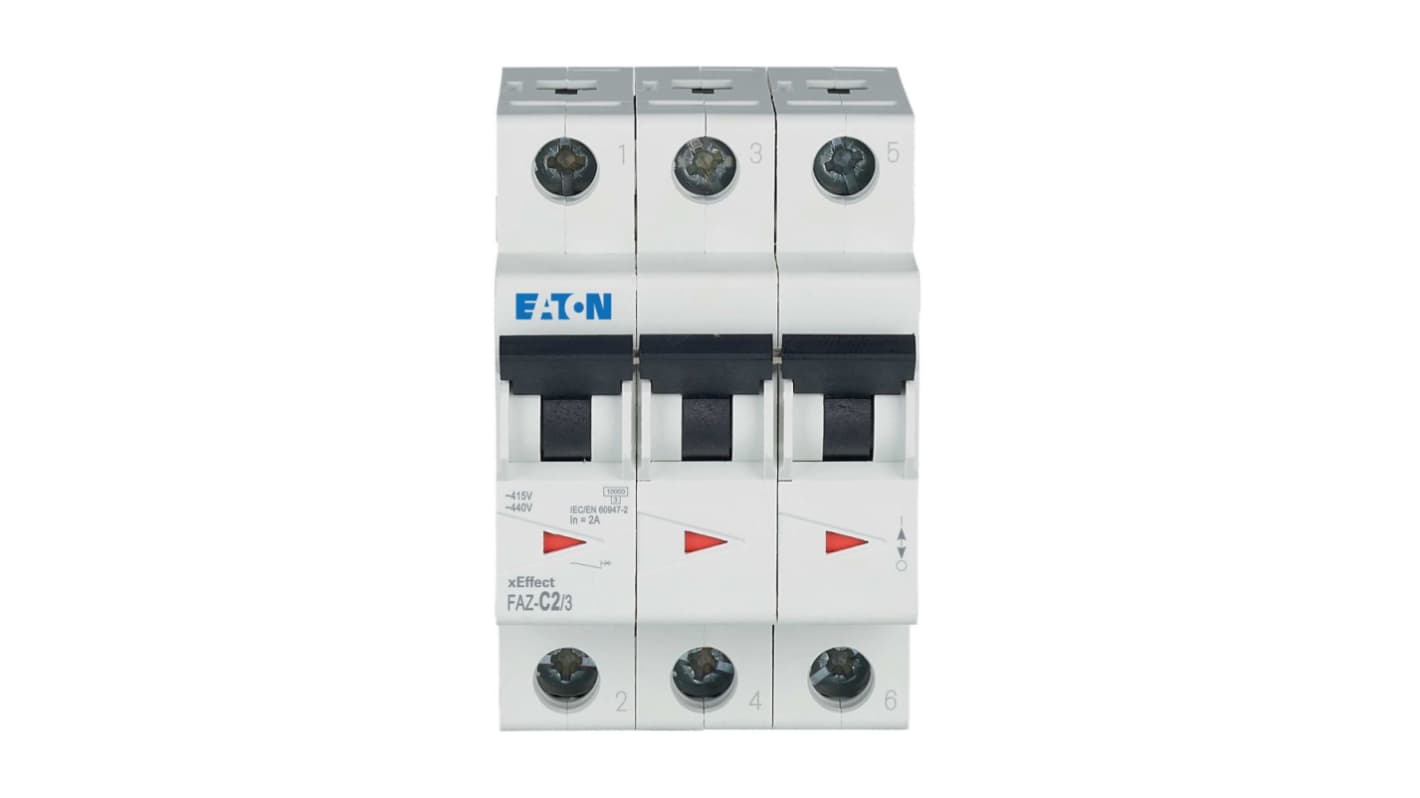

Eaton xEffect MCB, 3P, 2A Curve C, 240 → 415V AC, 10 kA Breaking Capacity
- RS Stock No.:
- 847-3295
- Mfr. Part No.:
- 278861 FAZ-C2/3
- Brand:
- Eaton
Subtotal (1 unit)*
£115.73
(exc. VAT)
£138.88
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £115.73 |
*price indicative
- RS Stock No.:
- 847-3295
- Mfr. Part No.:
- 278861 FAZ-C2/3
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Number of Poles | 3 | |
Current Rating | 2A | |
Tripping Characteristics | Type C | |
Rated AC Voltage | 240 → 415V | |
Breaking Capacity at Maximum Voltage Rating | 10 kA | |
Range | xEffect | |
Circuit Breaker Type | MCB | |
Length | 54mm | |
Width | 85mm | |
Mounting Style | DIN Rail Mount | |
Depth | 73mm | |
Select all | ||
---|---|---|
Brand Eaton | ||
Number of Poles 3 | ||
Current Rating 2A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 240 → 415V | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Range xEffect | ||
Circuit Breaker Type MCB | ||
Length 54mm | ||
Width 85mm | ||
Mounting Style DIN Rail Mount | ||
Depth 73mm | ||
Eaton MCB, 2A Current Rating, 3 Poles - 278861 FAZ-C2/3
This is a compact 3-pole miniature circuit breaker (MCB) ideal for branch circuit protection. The Eaton xEffect series provides superior safety and reliability, featuring a current rating of 2A and a breaking capacity of 10 kA, designed for use within voltage ranges of 240V to 415V. With dimensions of 54mm in width and 80mm in length, it effectively fits standard electrical enclosures.
Features & Benefits
• Offers Type C characteristics suitable for medium inrush currents
• Toggle switch reset mechanism provides ease of operation
• DIN rail mounted for simple installation and maintenance
• Current limiting design protects against damaging fault currents
• Compact design ensures optimal space utilisation in panels
• CE marked for compliance with European standards
• Toggle switch reset mechanism provides ease of operation
• DIN rail mounted for simple installation and maintenance
• Current limiting design protects against damaging fault currents
• Compact design ensures optimal space utilisation in panels
• CE marked for compliance with European standards
Applications
• Ideal for branch circuit protection in diverse electrical systems
• Utilised in heating, air conditioning, and refrigeration
• Suitable for internal and external sockets and motors
• Effective for overcurrent protection within electrical equipment
• Utilised in heating, air conditioning, and refrigeration
• Suitable for internal and external sockets and motors
• Effective for overcurrent protection within electrical equipment
What are the operational voltage ratings for this device?
It operates within a voltage range of 240V to 415V, allowing for versatile applications in various electrical systems.
How does the current limiting feature enhance safety?
The current limiting design interrupts fault currents quickly, reducing energy let-through and minimising potential damage to connected devices.
Can this circuit breaker handle higher inrush currents?
Yes, it is equipped with Type C characteristics, making it ideal for applications where moderate inrush currents occur, such as motors and transformers.
What is the significance of the toggle switch reset?
The toggle switch reset allows for straightforward manual operation, facilitating quick reactivation after a tripping event without complicated procedures.
Is this product compliant with international safety standards?
This MCB is CE marked and adheres to relevant European standards, ensuring high safety and performance levels.
Note
Eaton formerly known as Moeller
