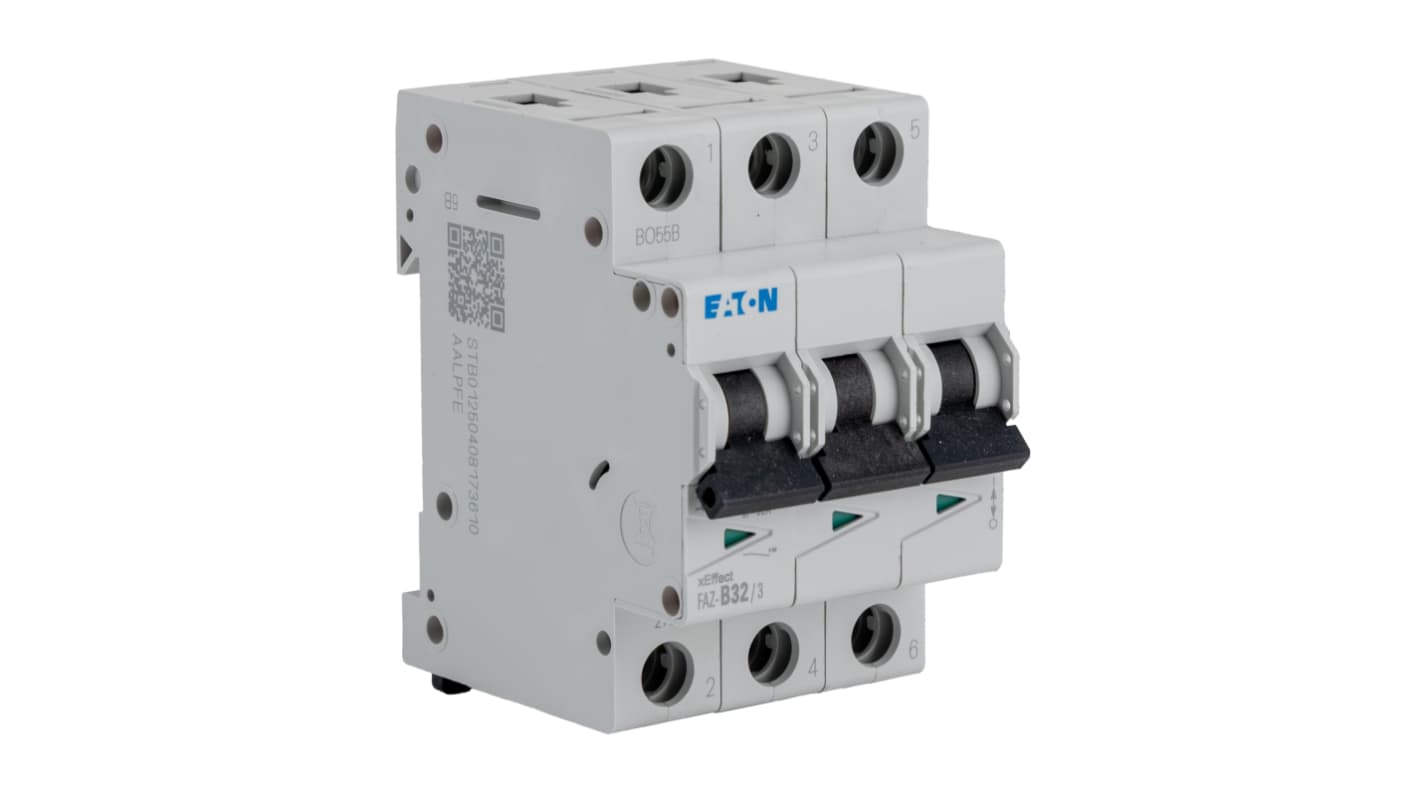

Eaton xEffect MCB, 3P, 32A Curve B, 240 → 415V AC, 10 kA Breaking Capacity
- RS Stock No.:
- 847-3162
- Mfr. Part No.:
- 278850 FAZ-B32/3
- Brand:
- Eaton
9 In stock - FREE next working day delivery available
Added
Price Each
£90.71
(exc. VAT)
£108.85
(inc. VAT)
| Units | Per unit |
| 1 + | £90.71 |
- RS Stock No.:
- 847-3162
- Mfr. Part No.:
- 278850 FAZ-B32/3
- Brand:
- Eaton
Technical Reference
Legislation and Compliance
Product Details
Eaton FAZ Series Circuit Breakers
The FAZ series by Eaton offers a wide range of quality, highly reliable and safe circuit breakers. Eaton’s FAZ DIN rail mountable circuit breaker is designed for use in control panel applications.
Features and Benefits
• The Eaton miniature circuit breaker has a current limiting design, providing short circuit interruption to reduce let-through energy, which can damage the circuit.
• Rated currents up to 63A.
• The toggle can be sealed in both the on and off position where required, and the trip-free design means that the breaker cannot be defeated by holding the handle in the on position.
• Reliable and safe operation with six levels of thermal-magnetic over-current protection.
• Red or green light indicates the contact position.
• Easy installation.
• Suitable for supplementary protection.
• Rated currents up to 63A.
• The toggle can be sealed in both the on and off position where required, and the trip-free design means that the breaker cannot be defeated by holding the handle in the on position.
• Reliable and safe operation with six levels of thermal-magnetic over-current protection.
• Red or green light indicates the contact position.
• Easy installation.
• Suitable for supplementary protection.
Note
Eaton formerly known as Moeller
Specifications
Attribute | Value |
|---|---|
| Number of Poles | 3P |
| Current Rating | 32A |
| Tripping Characteristics | Type B |
| Rated AC Voltage | 240 → 415V |
| Breaking Capacity at Maximum Voltage Rating | 10 kA |
| Range | xEffect |
| Circuit Breaker Type | MCB |
| Width | 85mm |
| Length | 54mm |
| Mounting Style | DIN Rail Mount |
| Depth | 73mm |
