- RS Stock No.:
- 847-3184
- Mfr. Part No.:
- 278841 FAZ-B6/3
- Brand:
- Eaton
1 In stock - FREE next working day delivery available
Price Each
£98.29
(exc. VAT)
£117.95
(inc. VAT)
Units | Per unit |
1 + | £98.29 |
- RS Stock No.:
- 847-3184
- Mfr. Part No.:
- 278841 FAZ-B6/3
- Brand:
- Eaton
Technical Reference
Legislation and Compliance
Product Details

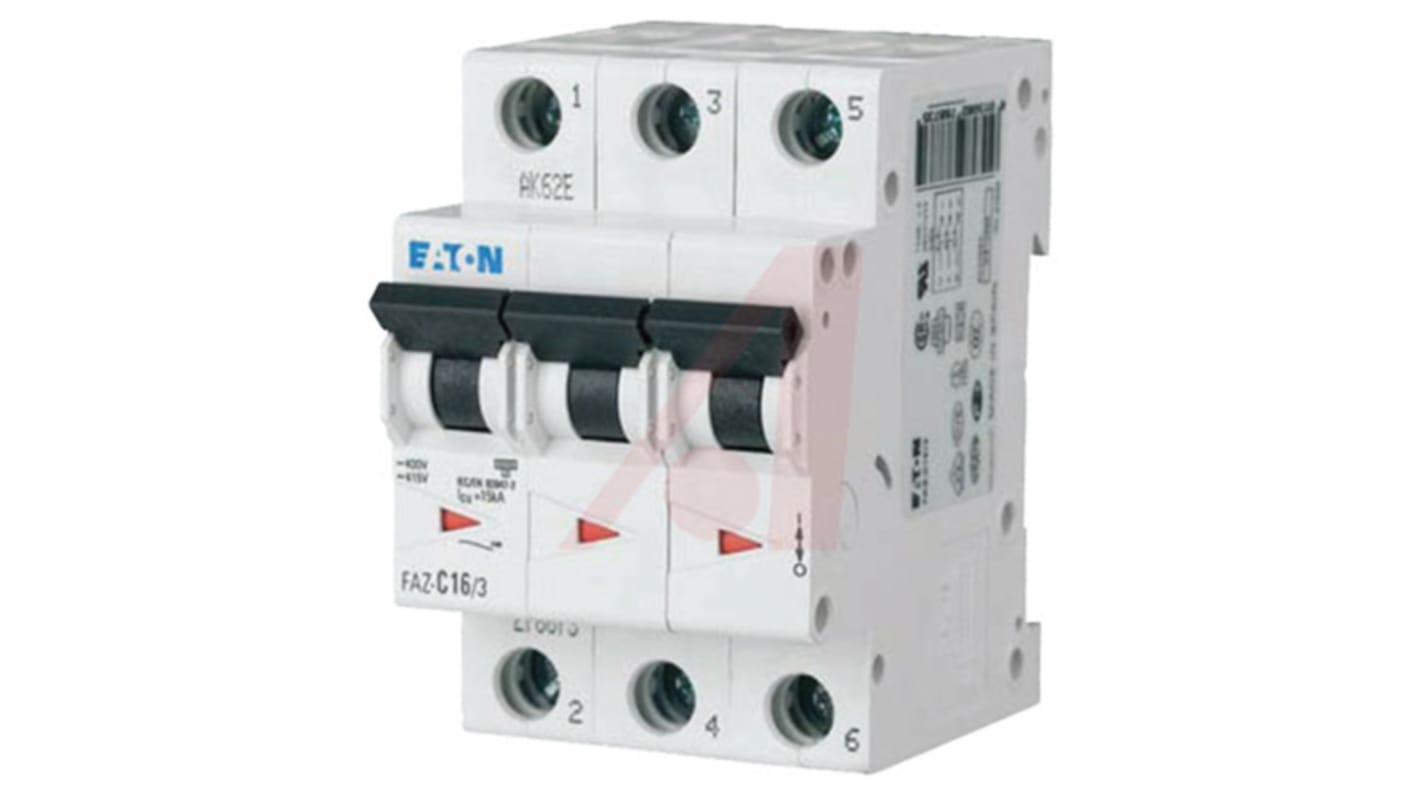

Eaton FAZ Series Circuit Breakers
The FAZ series by Eaton offers a wide range of quality, highly reliable and safe circuit breakers. Eatons FAZ DIN rail mountable circuit breaker is designed for use in control panel applications.
Features and Benefits
The Eaton miniature circuit breaker has a current limiting design, providing short circuit interruption to reduce let-through energy, which can damage the circuit.
Rated currents up to 63A.
The toggle can be sealed in both the on and off position where required, and the trip-free design means that the breaker cannot be defeated by holding the handle in the on position.
Reliable and safe operation with six levels of thermal-magnetic over-current protection.
Red or green light indicates the contact position.
Easy installation.
Suitable for supplementary protection.
Rated currents up to 63A.
The toggle can be sealed in both the on and off position where required, and the trip-free design means that the breaker cannot be defeated by holding the handle in the on position.
Reliable and safe operation with six levels of thermal-magnetic over-current protection.
Red or green light indicates the contact position.
Easy installation.
Suitable for supplementary protection.
Note
Eaton formerly known as Moeller
Specifications
Attribute | Value |
---|---|
Number of Poles | 3P |
Current Rating | 6A |
Tripping Characteristics | Type B |
Rated AC Voltage | 240 → 415V |
Breaking Capacity at Maximum Voltage Rating | 10 kA |
Range | xEffect |
Circuit Breaker Type | MCB |
Length | 54mm |
Width | 85mm |
Mounting Style | DIN Rail Mount |
Depth | 73mm |
