iC60H series multi-standard circuit breakers combine circuit protection against short circuit currents and circuit protection against overload currents it also protects people against indirect contact with TN and IT neutral systems. Fully compliant with standards IEC/EN 60898 and IEC/EN 60947-2. ACTi 9 is fully tested, approved and certified by national and international third parties. It guarantees that your installation is safe and compliant with all relevant safety standards which demonstrates to your customers that you use industry-approved materials and best practices. These MCBs are normally used for high inductive loads where switching surges are high. Providing essential protection in industrial and commercial buildings, these miniature circuit breakers work especially well in polluted environments and networks.

VisiSafe guarantees the downstream circuit is always safe regardless of overvoltage conditions, even in the most demanding environments; the green strip indicates the safe position of contacts.
VisiTrip red window on the front face indicates fault tripping allowing fast diagnosis, resolution, and reclosing loads for easier building management and reduced downtime

It protects wires from overloads and short-circuits. For overload protection the temperature of a bimetal, through which the current passes is decisive. If the nominal current—the current the circuit breaker is designed for—rises slightly, the bimetal heats up to a greater extent and, after a certain period of time, this causes the switching mechanism to trip. Today MCBs are installed in all our homes, offices and other buildings, protecting the electrical wires from damage. They have the advantage that they can be manually reset without having to replace wire as in the case of the traditional fuse. The MCBs have either a button or lever that can be flicked to reset it. They are used instead of fuses due to their convenience and improved safety features.

Curve B: Tripping: 3 to 5 times the rated current.
Applications: protection of generators, persons, very long cables
Curve C: Tripping: 5 to 10 times the rated current
Applications: protection of circuits and general applications
Curve D: Tripping: 10 to 14 times the rated current
Applications: protection of high surge circuits, welders, transformers and motors

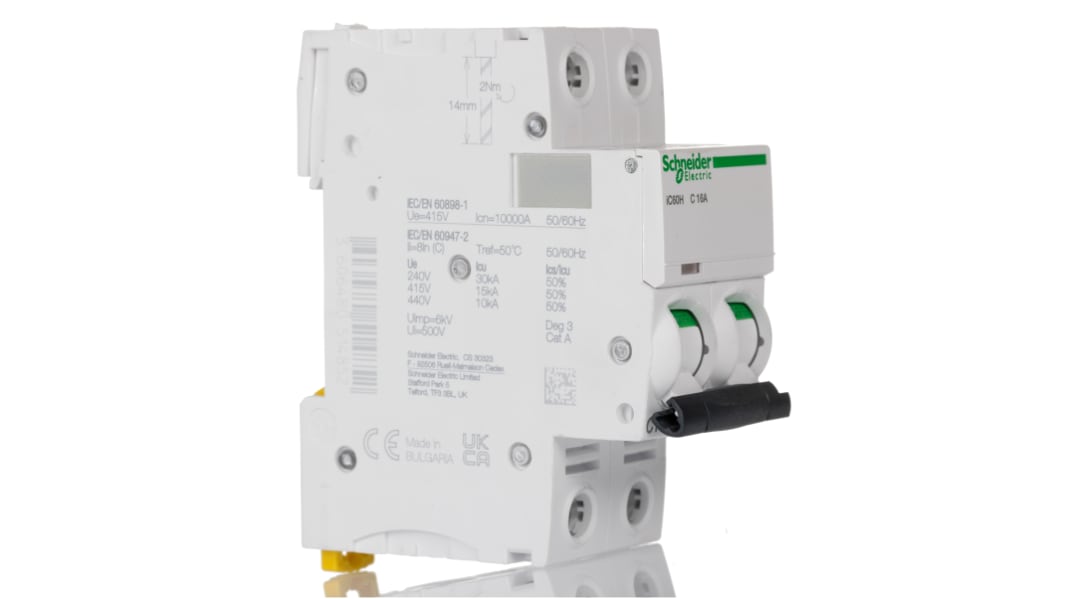

Want to stop electrical hazards from getting the better of your equipment? Fend them off with this MCB from Schneider Electric. It steps in to cut power in the event of a short circuit or overload, preventing damage and cutting the risk of fire. Thanks to its fast-closing mechanism, this unit withstands mechanical wear and tear, giving you the assurance of long-term performance. The breaker is DIN rail-mountable, which means you don't need tools to install it, so that's one less job to worry about.

• Light weight of 250g puts minimal strain on your equipment
• IP20 rating shows that it's finger-safe as it resists objects larger than 12.5mm
• Withstands operating temperatures between -35°C and +70°C, making it the right choice for demanding conditions
• Compact dimensions of 85 (H) x 36 (W) x 78.5mm (D) for space-efficient installation in confined setups

• Industrial lighting
• HVAC systems
• Automotive industry

This unit has screw terminals that accommodate cable sizes between 1 and 25mm², making it a flexible option.

EN/IEC 60947-2, EN/IEC 60898-1.
