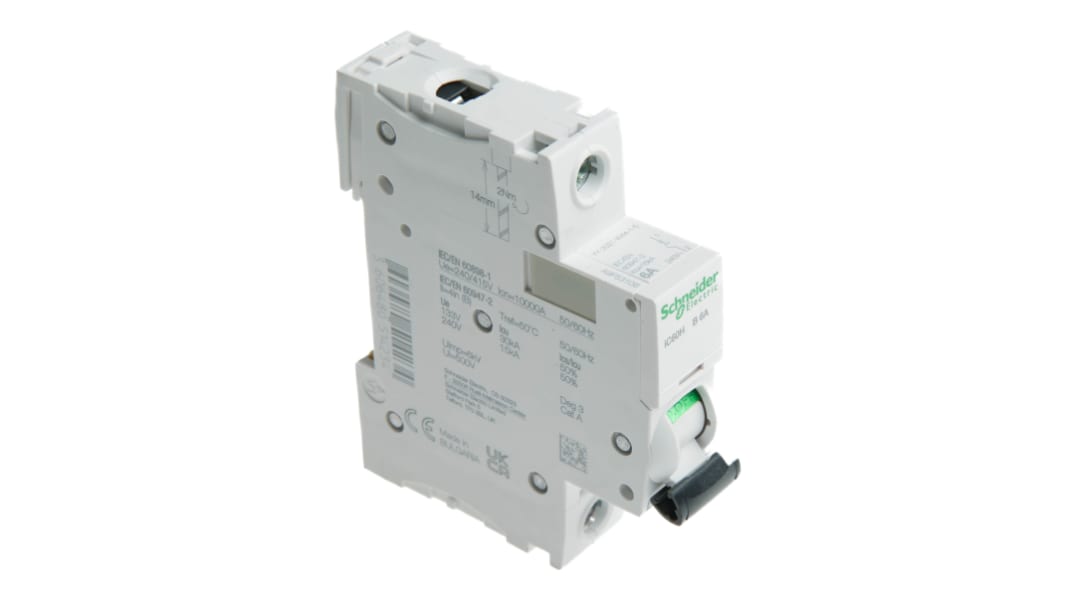

Schneider Electric Acti 9 iC60H MCB, 1P, 6A Curve B, 100 → 133V AC, 72V DC, 10 kA Breaking Capacity

View all MCBs

Subtotal (1 unit)*

£27.39

(exc. VAT)

£32.87

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 120 unit(s) ready to ship
  • Plus 145 unit(s) shipping from 14 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£27.39

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:
791-3152
Mfr. Part No.:
A9F53106
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Number of Poles

1

Current Rating

6A

Tripping Characteristics

Type B

Rated AC Voltage

100 → 133 V, 12 → 60 V, 220 → 240V

Rated DC Voltage

72 V, 12 → 48V

Breaking Capacity at Maximum Voltage Rating

10 kA

Range

Acti 9

Series

iC60H

Circuit Breaker Type

MCB

Width

18mm

Length

85mm

Mounting Style

DIN Rail Mount

Depth

78.5mm

Model Number

A9F53106

Better World Product

Yes

Better World Verification

Green Premium

Reset Actuator Type

Rocker Switch

Special Features

Short Circuit Protection

Tripping Mechanism

Thermal-Magnetic

Terminal Contact Type

Screw

Schneider Electric | Acti9 iC60H | Mini Circuit Breakers


The Acti9 series of MCBs by Schneider Electric provides excellent circuit protection particularly in combating short circuits and overload currents. These MCBs are rigorously tested by Schneider and are compliant with standards such as IEC/EN 60898 & 60947-2. These types of MCBs are typically used in industrial or commercial buildings and can work extremely well in polluted environments.

Features and benefits:


  • Easy to install these consumer units, single clip on to Din Rail, compact in nature making wiring easier and simplifying your circuit system. Ergonomically designed with robust connections. IP20B terminal shutters.

  • Schneider 'VisiSafe' for safer operation and maintenance work on electrical circuits. Absolute safety of circuit protection guaranteed.

  • Schneider 'VisiTrip' for easier fault detection in the MCB outgoers. This can help reduce intervention time greatly, protecting the device before any further electrical problems occur.

  • 1P (number of protected poles).

  • Nominal currents ranging from 1 to 63 Amps.

  • Full compatibility with Acti 9 RCDs and MCCBs.

  • Operating voltage up to 440 V ac, insulation voltage 500 V.

  • Additional add-on earth leakage protection devices are available. This offers you better continuity of service.

  • Schneider Green Premium classed product.

Protection ratings & Safety features (See datasheet for further details) -


  • IP20 conforming to IEC 60529. Protection against solid objects up to 12mm e.g. fingers, small tools.

  • Pollution degree level of 3 conforming to EN/IEC 60947-2. EN/IEC 60947-2 & EN/IEC 60898-1.

  • Operating temperature (for operation) -35 to 70 ° C.

  • Padlockable, providing extra protection.

Applications.


  • DC current circuit protection / Motor circuit protection.

  • Polluted environments/networks.

  • Any circuit types within industrial/commercial buildings.

Q&A: What is the differences in the Tripping Curves B, C, and D?


  • Curve B: Tripping: 3 to 5 times the rated current.

  • Applications: protection of generators, persons, very long cables

  • Curve C: Tripping: 5 to 10 times the rated current

  • Applications: protection of circuits and general applications

  • Curve D: Tripping: 10 to 14 times the rated current

  • Applications: protection of high surge circuits, welders, transformers and motors

The Acti9 come in either Curve B , C or D. Please refer to specifications for specific type.

Schneider Electric MCB, 6kV Impulse Withstand Voltage, IP20 Rating - iC60H Series - A9F53106


Keen to find a breaking solution combining short-circuit and overload protections? This MCB from Schneider Electric is just the thing. Its type-B curve means you get swift tripping whenever it receives 3 to 5 times its rated current of 6A, so it helps shield people and equipment from harm. This also makes the device a practical pick for resistive or small inductive loads, meaning it suits domestic or light commercial applications where overloads are usually smaller. To top it off, you get short-circuit protection built into the breaker too, leaving little risk of a current fault causing harm or device downtime.

Features & Benefits


• Works safely from -35°C to +70°C, making it a smart pick for harsh environments
• Mechanical and electrical endurance of 20,000 and 10,000 cycles respectively, so this MCB's built to last
• Simple clip-on mounting helps you install it on a DIN rail in moments
• Space for adding a padlock to the switch lets you secure it against tampering

Applications


• Residential lighting
• Domestic circuitry
• Commercial buildings

Does this MCB handle electrical surges too?


Yes. An impulse withstand rating of 6kV lets you know this device fends off significant voltage surges to protect people and equipment.

Standards

EN/IEC 60947-2, EN/IEC 60898-1.
