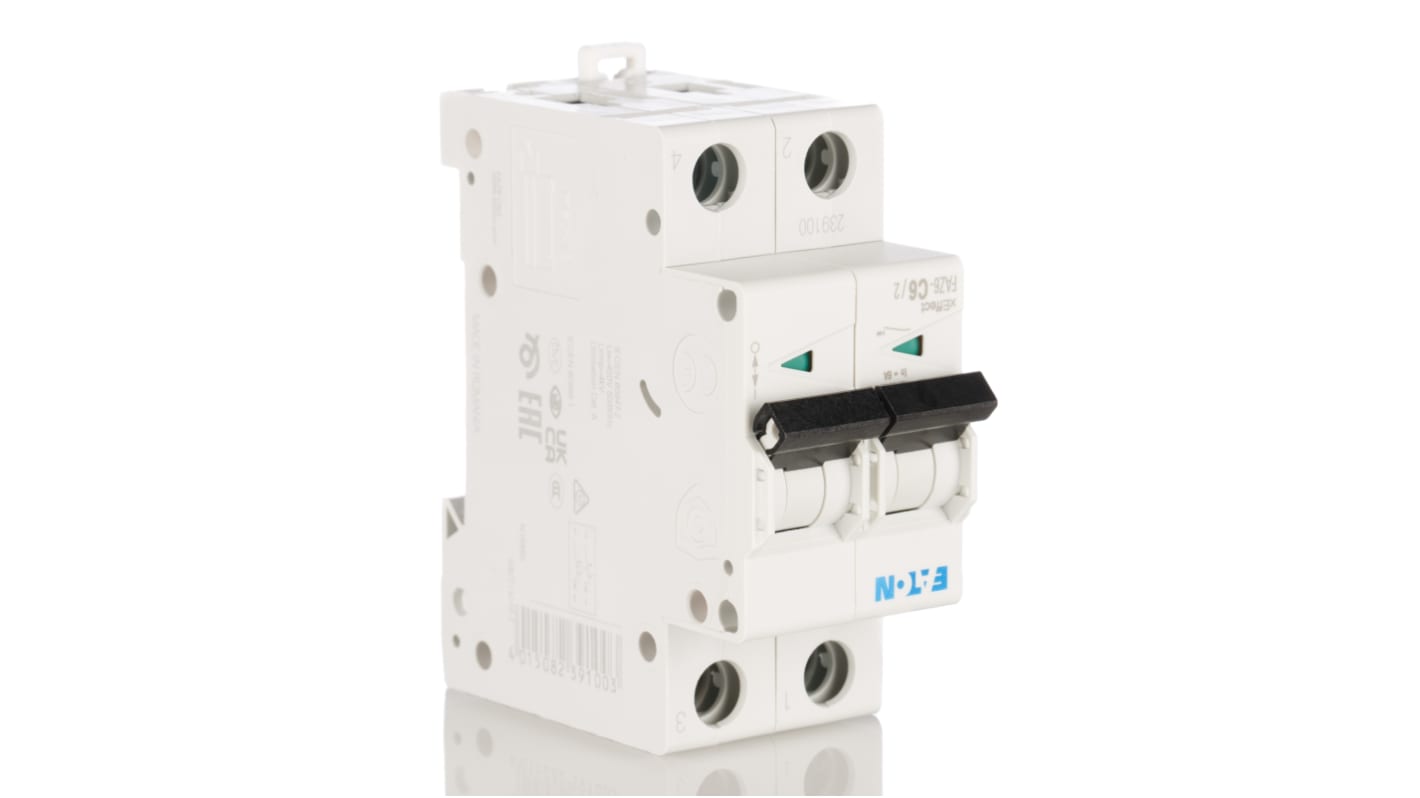

    Eaton xEffect MCB, 2P Poles, 6A Curve C, 230 → 400V AC, 6 kA Breaking Capacity, MCB

    RS Stock No.:
    769-4719
    Mfr. Part No.:
    239100 FAZ6-C6/2
    Brand:
    Eaton
    Eaton
    View all MCBs
    43 In stock - FREE next working day delivery available
    24 available from Europe for delivery within 1 working day(s).
    Add to Basket
    Units

    Added

    Price Each

    £54.48

    (exc. VAT)

    £65.38

    (inc. VAT)

    UnitsPer unit
    1 - 9£54.48
    10 - 14£51.21
    15 +£49.04
    RS Stock No.:
    769-4719
    Mfr. Part No.:
    239100 FAZ6-C6/2
    Brand:
    Eaton
    COO (Country of Origin):
    RO

    Legislation and Compliance

    COO (Country of Origin):
    RO

    Product Details

    Eaton Miniature Circuit Breakers (MCBs) - FAZ6 Series


    The FAZ6 series of miniature circuit breakers (MCBs) from Eatons xEffect range has a current limiting design providing fast short-circuit interruption that reduces the let-through electrical energy and overload currents that can damage the circuit.

    Ideally suited to control circuits and electrical distribution boards the FAZ6 series of MCBs offer a wide range of diverse protection characteristics, protecting your electrical equipment against overload damage. For additional safety, the MCB breaker cannot be defeated by holding the handle in the ON position, these MCBs are also finger proof and have a trip-free mechanism.

    These MCBs have both a thermal and electromagnetic release, with rated currents of 0.5 A up to 63 A and a switching capacity of 6kA or 10kA depending on the device type. A guide for secure terminal connection and a 3-position DIN-rail simplify the installation of the circuit breaker.

    The FAZ series includes miniature circuit breakers, interlocks, busbars and snap-on accessories including auxiliaries and tripping modules.

    Features and Benefits


    • Thermal-magnetic overcurrent protection
    • Power to the miniature circuit breakers can be fed from the line or load side
    • Clear indication of contact position via front switch toggle
    • Easy installation on DIN rail. MCB module width of only 17.5 mm (per pole)
    • Six levels of short-circuit protection, categorized by Type B, C, D, K, S and Z curves
    • Small modular width of the device and accessories saves space in the panel or equipment, which can lead to cost savings
    • Available in single pole up to 4 pole
    • Dual rating for IEC 60947-2 standard
    • MCB Module widths: 1P 17.5mm, 2P 35mm and 3P 52.5mm

    Standards


    IEC 898; BS/EN60-898; EN50 022/DIN46277-3 (BS5584).
    FAZ-C*/* & FAZ-S*/* = IEC/EN60947-2

    IEC 60947-2 Relates to Low Voltage Circuit Breakers for use in industrial and similar installations. In the UK these are traditionally known as miniature circuit breakers (MCBs), moulded case circuit breakers
    (MCCBs) and also air circuit breakers (ACBs).

    What are the differences between the Tripping Curves?


    Type B: Instantaneous trip when the electrical current through the device is 3 to 5 times the rated current. The type B trip curve MCBs are designed for standard circuit protection, typically protection of generators, persons and very long cables

    Type C: Instantaneous trip when the flow-through current is 5 to 10 times the rated current.
    Type C trip curve residential and domestic MCBs are used for higher inrush currents such as in machines and lighting, providing overload protection of circuits and other consumer units.

    Type D: Instantaneous trip when the flow-through current is 10 to 14 times the rated current.
    D curve MCBs are suitable for inductive and capacitive loads like transformers condensers. and electric motors.

    Type K: Instantaneous trip when the flow-through current is 10 to 14 times the rated current.
    Type K curve MCBs are suitable for inductive loads like transformers, condensers. and electric motors.

    Type S: Instantaneous trip when the flow-through current is 13 to 17 times the rated current.
    Suitable for applications where high levels of inrush current are expected. The high magnetic trip point of type S curve MCBs prevents nuisance tripping in high inductive applications such as motors, transformers and power supplies.

    Type Z: Instantaneous trip when the flow-through current is 2 to 3 times the rated current.
    Z curve MCBs are intended for use in electrical circuits that require a very low short circuit trip setting, for example, semiconductors.

    Eaton xEffect Mini Circuit Breaker, 6 A, 2 Pole - FAZ Series - FAZ-C6/2


    Need a reliable way to prevent damage to your circuits? This mini circuit breaker (MCB) from Eaton protects your equipment in the event of a short circuit or overload. It's suitable for powerful electrical devices that are vulnerable to high surges of current, as it's a C-Curve MCB. This means it automatically stops currents of five to ten times the device's current rating of 6 A. Find this dependable device used in a range of commercial and industrial applications, from electric motors to fans.

    • Wide operating AC voltage range of 230 to 400 V for use in a variety of high-voltage applications
    • Two poles to protect two circuits for added versatility
    • Compact dimensions of 80 (length) x 17.5 (width) x 61.5 mm (depth) to save space
    • Trip-free safety mechanism to ensure contacts remain open in the event of an electrical fault

    When should I use a C-Curve MCB?


    A C-Curve MCB is suitable for protecting circuits with high inrush and peak currents. It should be used for applications where the expected flow-through current will not exceed ten times the rated amount.

    Note

    Eaton formerly known as Moeller


    FAZ MCB's

    Specifications

    AttributeValue
    Number of Poles2P
    Current Rating6A
    Tripping CharacteristicsType C
    Rated AC Voltage230 → 400V
    RangexEffect
    Model NumberFAZ6-C6/2
    SeriesEaton Moeller
    Breaking Capacity at Maximum Voltage Rating6 kA
    Circuit Breaker TypeMCB
    Mounting StyleDIN Rail Mount
    Width17.5mm
    Length80mm
    Depth62mm
