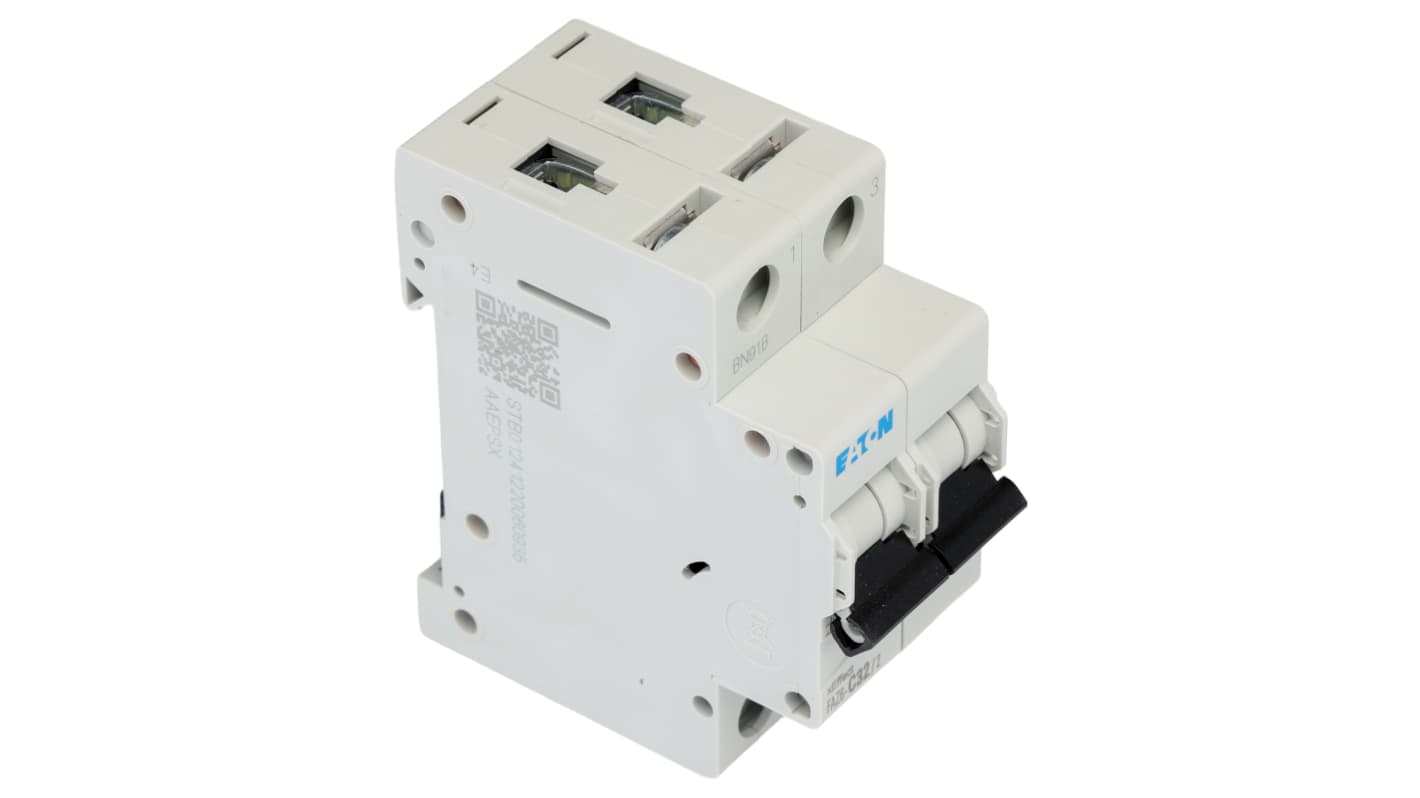

Eaton xEffect xEffect Miniature Circuit Breaker, 2-Pole, 32 A, Type C, 400 V AC, 6 kA Breaking Capacity

View all MCBs

Subtotal (1 unit)*

£52.94

(exc. VAT)

£63.53

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 3 unit(s) ready to ship
  • Plus 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£52.94

*price indicative

RS Stock No.:
769-4643
Mfr. Part No.:
239106 FAZ6-C32/2
Brand:
Eaton
Find similar products by selecting one or more attributes.
Select all

Brand

Eaton

Product Type

Miniature Circuit Breaker

Number of Poles

2

Current Rating

32 A

Tripping Characteristics

Type C

Rated AC Voltage

400 V

Breaking Capacity

6kA

Mount Type

DIN Rail

Range

xEffect

Series

xEffect

IP Rating

IP20

Width

62 mm

Standards/Approvals

EN 60898, IEC

Depth

62mm

Reset Actuator Type

Toggle Switch

Break Time

Instantaneous

Tripping Mechanism

Thermal Magnetic

Eaton MCB, 32A Current Rating, Type C Tripping Characteristics - 239106 FAZ6-C32/2


This miniature circuit breaker (MCB) is designed for robust electrical safety in residential and commercial applications. The Eaton xEffect, featuring a 32A current rating and a 2 pole configuration, ensures dependable performance under load. With dimensions of 35.4mm in width and 85mm in length, this circuit breaker fits seamlessly onto DIN rails for straightforward installation.

Features & Benefits


• Type C characteristics provide reliable overload protection

• 6 kA breaking capacity ensures swift fault clearance

• Suitable for AC voltage up to 400V for diverse applications

• Compact design facilitates space-saving installations on DIN rails

• Enhanced thermal stability for safe operation in various environments

• Connectable conductor cross-section up to 25mm² accommodates multiple wiring types

Applications


• Utilised in residential distribution boards for power management

• Suitable for commercial electrical installations requiring robust circuit protection

• Appropriate for industrial environments where heavy machinery is present

• Ideal for automation control panels to ensure system integrity

• Used in motor control circuits to safeguard operational equipment

What are the installation requirements for this circuit breaker?


It is designed for direct installation onto DIN rails, allowing for efficient space management. Ensure that all wiring leads comply with the specified conductor cross-section for safe connections.

How does the breaking capacity influence its performance?


The 6 kA breaking capacity means it can quickly interrupt high fault currents, minimising damage and maintaining overall system safety during electrical disturbances.

What is the significance of the Type C characteristics?


Type C characteristics allow for a higher inrush current capacity, making it suitable for applications with motors or transformers where initial power surges occur.

What temperature range can this breaker operate under?


It operates efficiently within an ambient temperature range of -25°C to 75°C, ensuring reliability in various environmental conditions.

How do I determine the suitable application for this MCB?


Consider its current and voltage ratings, as well as the specific electrical demands of your installation, ensuring compatibility for the intended load and operational environment.

Note

Eaton formerly known as Moeller
