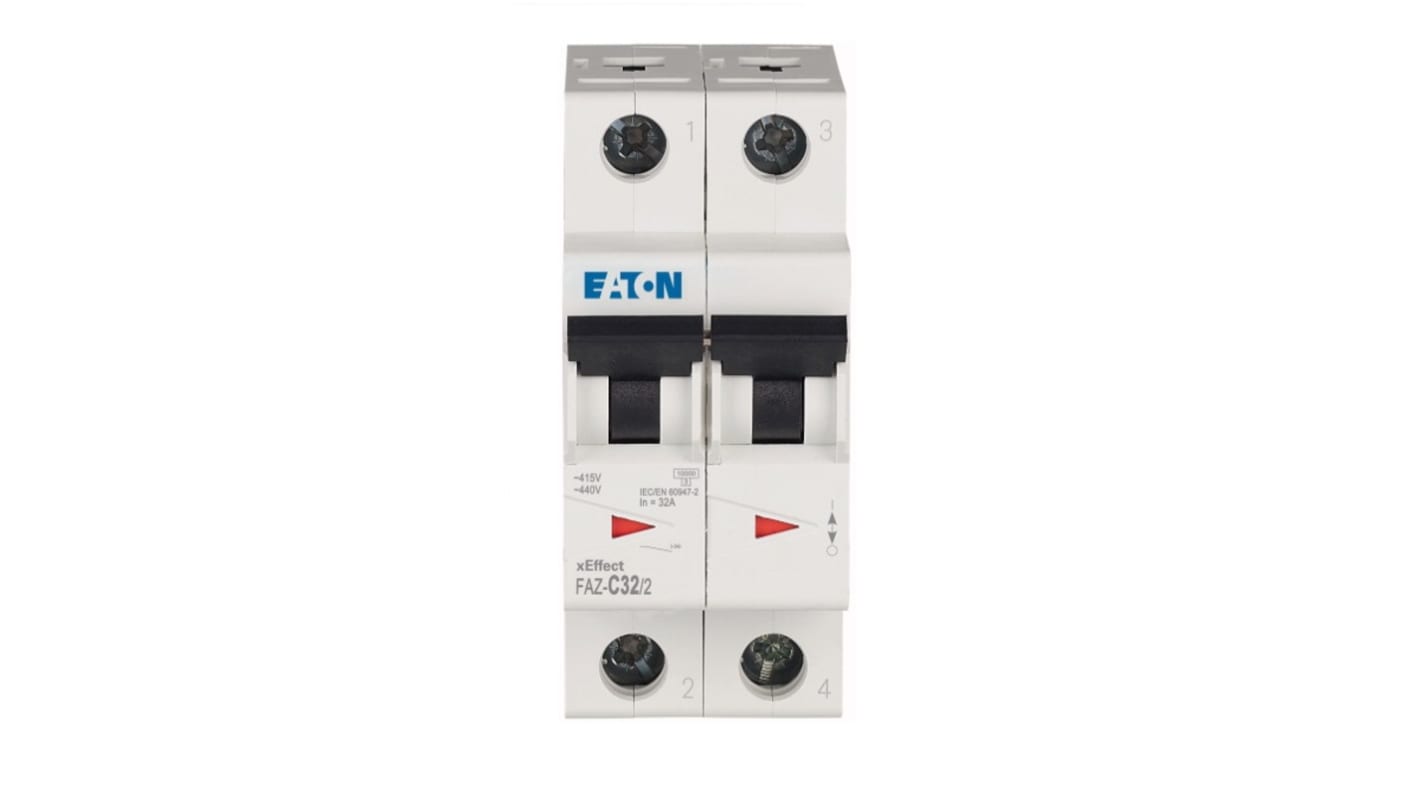

Eaton xEffect MCB, 2P, 32A Curve C, 240 → 415V AC, 96V DC, 10 kA Breaking Capacity
- RS Stock No.:
- 847-3355
- Mfr. Part No.:
- 278763 FAZ-C32/2
- Brand:
- Eaton
Subtotal (1 unit)*
£58.64
(exc. VAT)
£70.37
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 15 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £58.64 |
*price indicative
- RS Stock No.:
- 847-3355
- Mfr. Part No.:
- 278763 FAZ-C32/2
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Number of Poles | 2 | |
Current Rating | 32A | |
Tripping Characteristics | Type C | |
Rated AC Voltage | 240 → 415V | |
Rated DC Voltage | 96V | |
Breaking Capacity at Maximum Voltage Rating | 10 kA | |
Range | xEffect | |
Circuit Breaker Type | MCB | |
Width | 85mm | |
Length | 36mm | |
Mounting Style | DIN Rail Mount | |
Depth | 73mm | |
Select all | ||
---|---|---|
Brand Eaton | ||
Number of Poles 2 | ||
Current Rating 32A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 240 → 415V | ||
Rated DC Voltage 96V | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Range xEffect | ||
Circuit Breaker Type MCB | ||
Width 85mm | ||
Length 36mm | ||
Mounting Style DIN Rail Mount | ||
Depth 73mm | ||
Eaton MCB, 32A Current Rating, C Curve - xEffect Series - 278763FAZ-C32/2
For the protection of your control circuits and commercial equipment, opt for this MCB from Eaton. It reacts instantly to short circuits and overcurrent, so helps to avoid damage to your machinery. The unit snaps easily onto a DIN rail, so installation is quick and simple. A corrosion-resistant housing offers long-lasting performance, even in humid conditions. For enhanced safety, the trip-free design makes this device difficult to tamper with. To assure you it's safe for domestic use, it meets IEC/EN 60898 safety requirements for circuit breakers used in low-voltage and household applications.
Features & Benefits
• Twin-purpose terminals give the option of wiring at the top or bottom of the unit
• Suitable to mount in any position
• IP20-rated enclosure that's protected against human touch and objects larger than 12mm
• High breaking capacity of 10kA, so suitable for the protection of higher-powered equipment
• Suitable to mount in any position
• IP20-rated enclosure that's protected against human touch and objects larger than 12mm
• High breaking capacity of 10kA, so suitable for the protection of higher-powered equipment
Can I secure the toggle on this MCB?
Yes, you can seal this breaker's toggle in an ON or OFF position.
Can I use this device under UV light?
Yes, this MCB resists the ageing effects of UV light.
Note
Eaton formerly known as Moeller
