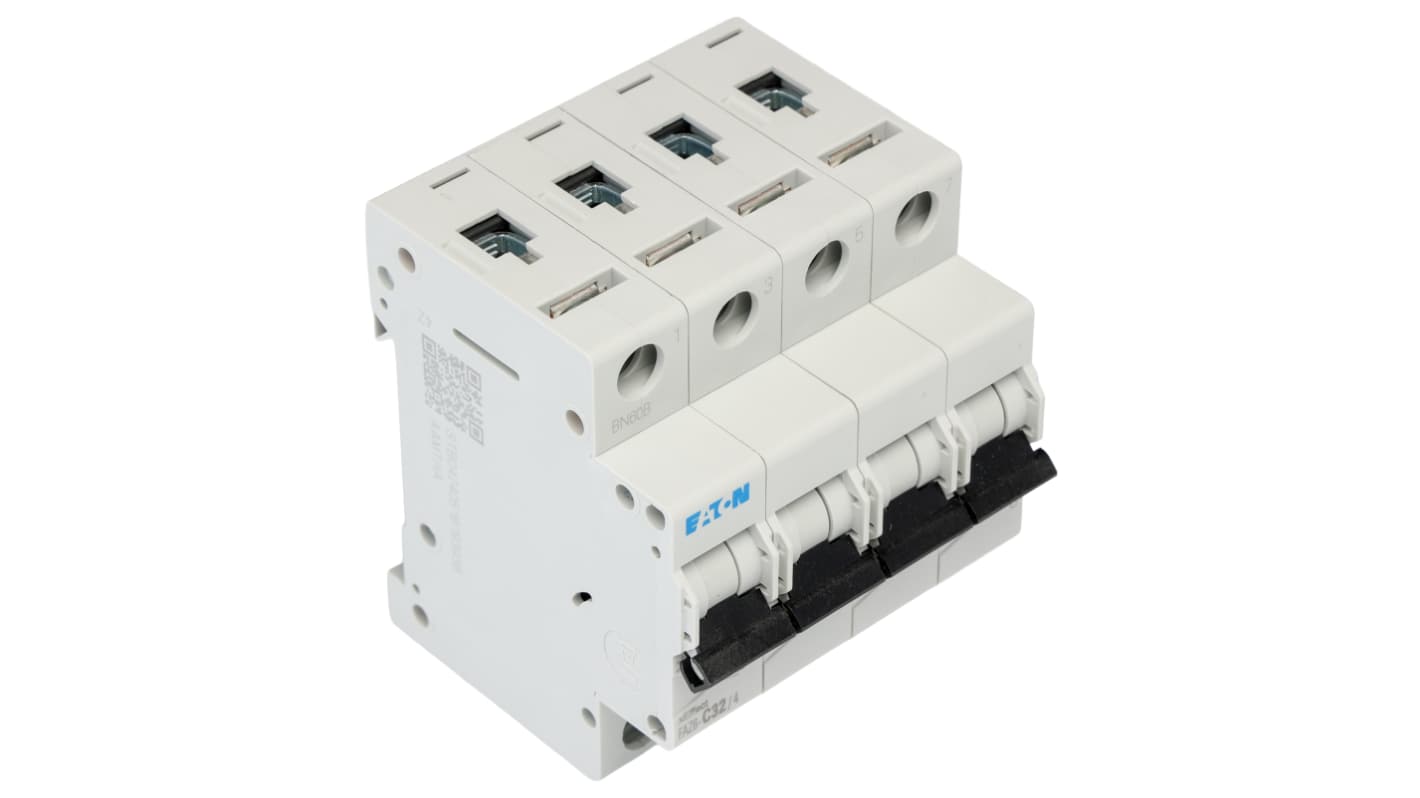

Eaton xEffect MCB, 4P, 32A Curve C, 230 → 400V AC, 6 kA Breaking Capacity

RS Stock No.:: 769-4659
Mfr. Part No.:: 239221 FAZ6-C32/4
Brand:: Eaton

Eaton xEffect MCB, 4P, 32A Curve C, 230 → 400V AC, 6 kA Breaking Capacity

Subtotal (1 unit)*

£140.85

(exc. VAT)

£169.02

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

7 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£140.85

*price indicative

RS Stock No.:: 769-4659
Mfr. Part No.:: 239221 FAZ6-C32/4
Brand:: Eaton

Eaton MCB, 32A Current Rating, 4 Poles - 239221 FAZ6-C32/4

This miniature circuit breaker (MCB) provides efficient electrical circuit protection in low voltage applications. Designed for reliable performance, it features a compact design with dimensions of 70.8mm in width, 85mm in length, and 73mm in height. The Eaton MCB is a 4 pole device rated for 32A, ensuring comprehensive safety in your electrical systems.

Features & Benefits

• Type C MCB suitable for high inrush currents
• 6 kA breaking capacity for effective short-circuit protection
• Compatible with DIN rail mounting for easy installation
• Wide voltage range of 230 to 400V for versatile use
• Supports connectable conductor cross-sections from 1 to 25mm²
• RoHS compliant, ensuring environmental sustainability

Applications

• Designed for industrial automation and electrical installations
• Ideal for protecting wiring in residential and commercial buildings
• Utilised in power distribution circuits and motor control
• Suitable for low voltage distribution systems within machinery

What are the operational voltage limits for this circuit breaker?

The operational voltage can range up to a maximum of 400V, making it suitable for varying electrical setups, ensuring adaptability in diverse applications.

Can multiple conductors be connected to this device?

Yes, it accommodates both solid-core and multi-core conductors, with a range between 1mm² to 25mm² for flexible wiring options.

How does the breaking capacity affect circuit protection?

With a breaking capacity of 6 kA, it efficiently interrupts fault currents, minimising potential damage to circuits and enhancing overall system safety.

What are the ambient operating temperature limits for this MCB?

It can operate in temperatures ranging from -25°C to 75°C, making it suitable for different environmental conditions and applications.

Is there any specific maintenance required for optimal performance?

Regular inspections should be conducted to ensure proper functioning, focusing on connections and potential mechanical wear due to environmental conditions.

Note

Eaton formerly known as Moeller

FAZ MCB's

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Number of Poles	4
	Current Rating	32A
	Tripping Characteristics	Type C
	Rated AC Voltage	230 → 400V
	Breaking Capacity at Maximum Voltage Rating	6 kA
	Range	xEffect
	Circuit Breaker Type	MCB
	Width	17.5mm
	Length	80mm
	Mounting Style	DIN Rail Mount
	Depth	62mm

	Select all
	Brand Eaton
	Number of Poles 4
	Current Rating 32A
	Tripping Characteristics Type C
	Rated AC Voltage 230 → 400V
	Breaking Capacity at Maximum Voltage Rating 6 kA
	Range xEffect
	Circuit Breaker Type MCB
	Width 17.5mm
	Length 80mm
	Mounting Style DIN Rail Mount
	Depth 62mm
