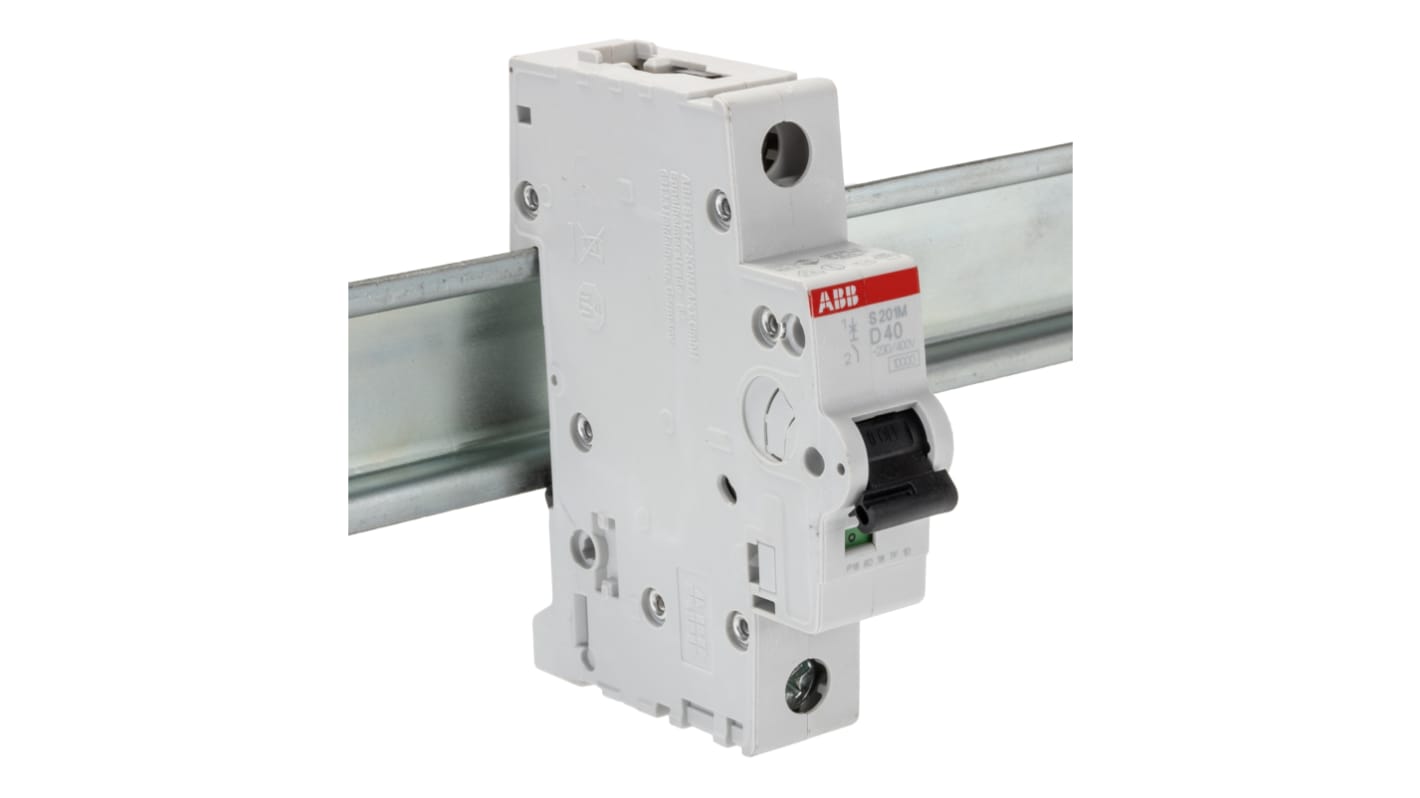

ABB System Pro M Compact S200M MCB, 1P, 40A Curve D, 230V AC, 72V DC, 15 kA Breaking Capacity
- RS Stock No.:
- 746-8150
- Mfr. Part No.:
- 2CDS271001R0401 S201M-D40
- Brand:
- ABB
Subtotal (1 unit)*
£21.97
(exc. VAT)
£26.36
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 3 unit(s) shipping from 01 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £21.97 |
*price indicative
- RS Stock No.:
- 746-8150
- Mfr. Part No.:
- 2CDS271001R0401 S201M-D40
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ABB | |
Number of Poles | 1 | |
Current Rating | 40A | |
Tripping Characteristics | Type D | |
Rated AC Voltage | 230V | |
Rated DC Voltage | 72V | |
Breaking Capacity at Maximum Voltage Rating | 15 kA | |
Range | System Pro M Compact | |
Series | S200M | |
Circuit Breaker Type | MCB | |
Length | 88mm | |
Width | 17.5mm | |
Mounting Style | DIN Rail Mount | |
Depth | 69mm | |
Model Number | S201M-D40 | |
Application | Commercial, Industrial | |
Reset Actuator Type | Lever | |
Terminal Contact Type | Screw | |
Special Features | Short Circuit Protection | |
Select all | ||
---|---|---|
Brand ABB | ||
Number of Poles 1 | ||
Current Rating 40A | ||
Tripping Characteristics Type D | ||
Rated AC Voltage 230V | ||
Rated DC Voltage 72V | ||
Breaking Capacity at Maximum Voltage Rating 15 kA | ||
Range System Pro M Compact | ||
Series S200M | ||
Circuit Breaker Type MCB | ||
Length 88mm | ||
Width 17.5mm | ||
Mounting Style DIN Rail Mount | ||
Depth 69mm | ||
Model Number S201M-D40 | ||
Application Commercial, Industrial | ||
Reset Actuator Type Lever | ||
Terminal Contact Type Screw | ||
Special Features Short Circuit Protection | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
ABB S200M Series MCB, 40A Current Rating, 15kA Breaking Capacity (at Maximum Voltage Rating) - 2CDS271001R0401 S201M-D40
This miniature circuit breaker (MCB) excels in both commercial and industrial applications. With a current rating of 40A, it provides essential protection against overloads and short circuits, ensuring operational safety at a rated voltage of 230V while effectively managing electrical systems.
Features & Benefits
• Provides short circuit protection to enhance system safety
• Features a thermal electromechanical tripping mechanism for reliability
• Equipped with a breaking capacity of 15kA to manage surges
• Compact design suitable for DIN rail mounting for straightforward installation
• Includes screw terminal contacts for secure electrical connections
• Versatile design for use in a variety of environments
• Features a thermal electromechanical tripping mechanism for reliability
• Equipped with a breaking capacity of 15kA to manage surges
• Compact design suitable for DIN rail mounting for straightforward installation
• Includes screw terminal contacts for secure electrical connections
• Versatile design for use in a variety of environments
Applications
• Suitable for commercial electrical installations
• Ideal for industrial machinery and equipment
• Effective for circuit protection in automation
• Commonly utilised in distribution boards for consistent performance
• Employed in various electrical systems requiring type D characteristics
• Ideal for industrial machinery and equipment
• Effective for circuit protection in automation
• Commonly utilised in distribution boards for consistent performance
• Employed in various electrical systems requiring type D characteristics
What is the requirement for installation in existing electrical panels?
It typically requires a compatible DIN rail for proper mounting.
How does the tripping mechanism enhance safety in operations?
The thermal electromechanical tripping responds quickly to overloads, minimising risks.
Can this be integrated with other devices in a control panel?
Yes, it can be seamlessly integrated with various electrical devices.
What maintenance is required to ensure its functionality?
Regular inspections for wear and secure connections are recommended.
Is it suitable for high-demand industrial devices?
Yes, it supports high demand with its 40A rating and breaking capacity.
ABB System Pro M Single & Double Pole MCB's
Note
The Classic & System pro M product cannot be intermixed and do not share common accessories. System pro M products can only be fitted to new style Protecta distribution boards,see typically stock no. 539-1553.
