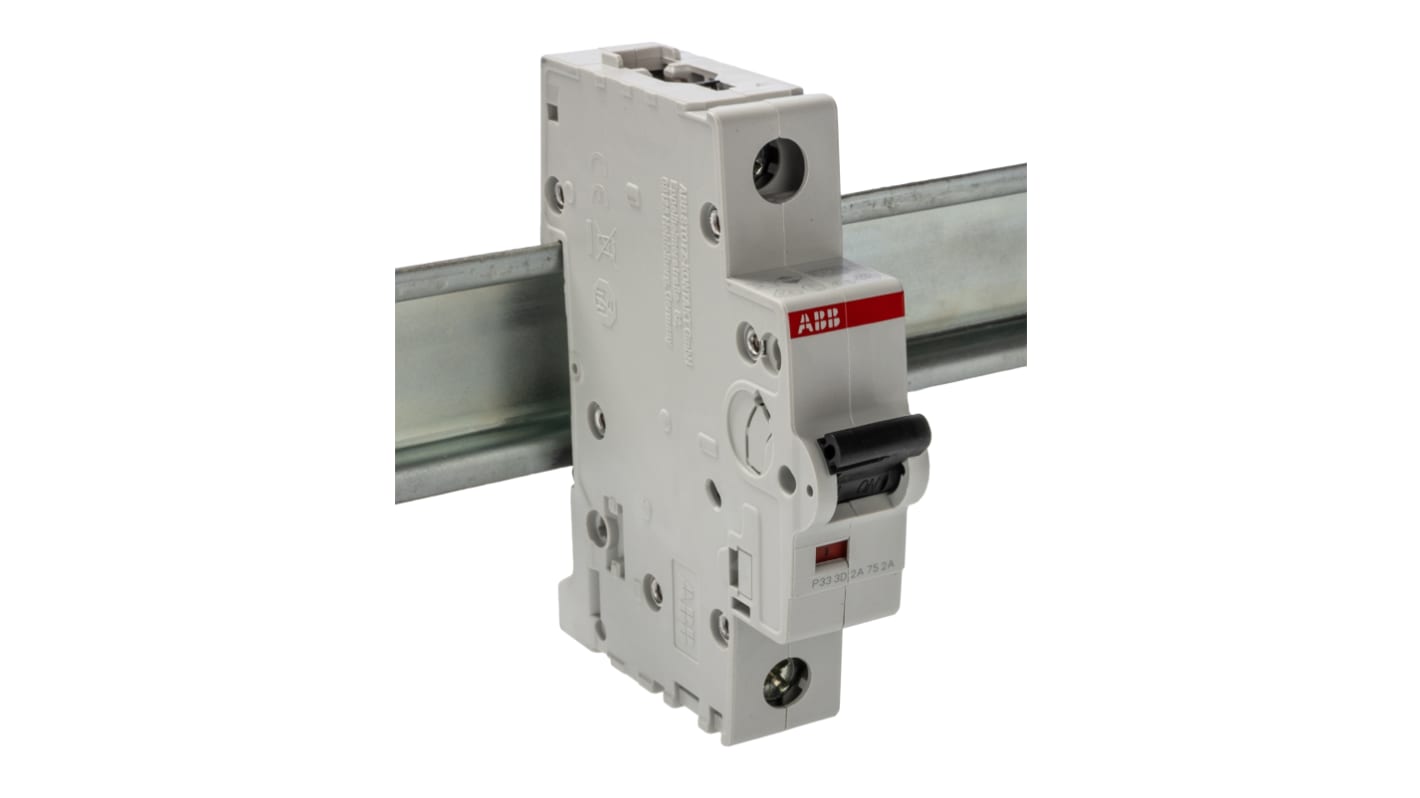

ABB System Pro M Compact S200M MCB, 1P, 13A Curve C, 230V AC, 72V DC, 15 kA Breaking Capacity

RS Stock No.:: 746-8113
Mfr. Part No.:: 2CDS271001R0134 S201M-C13
Brand:: ABB

ABB System Pro M Compact S200M MCB, 1P, 13A Curve C, 230V AC, 72V DC, 15 kA Breaking Capacity

View all MCBs

Subtotal (1 unit)**

£18.20

(exc. VAT)

£21.84

(inc. VAT)

29 In stock - FREE next working day delivery available*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Units	Per unit
1 +	£18.20

**price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:: 746-8113
Mfr. Part No.:: 2CDS271001R0134 S201M-C13
Brand:: ABB

ABB System Pro M Compact S200 Single Pole Type C 10 kA

ABB System pro M compact S200M miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electro mechanic tripping mechanism for short circuit protection. All MCBs of the product range S200M comply with IEC/EN 60898-1 and IEC/EN 609 47-2, allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200M to save 50% space

Features and Benefits

• Extra-wide and complete range of MCBs to cover most applications and markets
• Space and time saving thanks to the unique bottom-fixing auxiliary contact
• Meeting worldwide standards
• IEC/EN 60898-1, IEC/EN 60947-2
• 1 Pole
• Operating temperature range of -25°C to +55°C

Standards

IEC 60898 - Relates to Low Voltage Circuit Breakers for use in household and similar
Installations. In the UK traditionally known as miniature circuit breakers
(MCB’s).
IEC 60947-2 Relates to Low Voltage Circuit Breakers for use in industrial and similar
Installations. In the UK traditionally known as moulded case circuit breakers
(MCCB’s) and also air circuit breakers (ACB’s).

Q: What is Tripping Curves C

A:Curve C: Tripping: 5 to 10 times the rated current
Applications: protection of circuits and general applications

Note

The Classic & System pro M product cannot be intermixed and do not share common accessories. System pro M products can only be fitted to new style Protecta distribution boards,see typically stock no. 539-1553.

ABB S200M Series MCB, 13A Current Rating, 15kA Breaking Capacity (at Maximum Voltage Rating) - 2CDS271001R0134 S201M-C13

This miniature circuit breaker (MCB) provides essential protection for electrical systems, specifically in commercial and industrial settings. With a short circuit protection mechanism and thermal-electromechanical tripping, it prevents overloads and faults, ensuring safety and operational integrity in line with modern standards.

Features & Benefits

• Easily installs on standard DIN rail for flexible mounting
• Robust protection with a breaking capacity of up to 15kA
• Suitable for both commercial and industrial environments
• Lever reset actuator facilitates simple operation
• Type C trip characteristics are designed for inductive loads
• Promotes sustainability through disassembly capability

Applications

• Circuit protection in commercial electrical systems
• Equipment safeguarding in industrial environments
• Overload protection for automation
• Protection for machinery in electrical installations

What is the maximum rated voltage I can use this with?

This product is rated for a maximum AC voltage of 230V and a DC voltage of 72V.

How do I reset this device after a tripping event?

The unit features a lever that allows for easy resetting once the fault is resolved.

Is this suitable for inductive load applications?

Yes, it is equipped with Type C tripping characteristics, making it appropriate for inductive loads like motors.

Can I install this in any electrical panel?

It is designed for standard DIN rail mounting, making it compatible with a variety of electrical panels.

What maintenance is required for this product?

Regular visual inspections are recommended to ensure proper operation and identify any signs of wear or damage.

ABB System Pro M Single & Double Pole MCB's

Note

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	ABB
	Number of Poles	1
	Current Rating	13A
	Tripping Characteristics	Type C
	Rated AC Voltage	230V
	Rated DC Voltage	72V
	Breaking Capacity at Maximum Voltage Rating	15 kA
	Range	System Pro M Compact
	Series	S200M
	Circuit Breaker Type	MCB
	Width	17.5mm
	Length	88mm
	Mounting Style	DIN Rail Mount
	Depth	69mm
	Model Number	S201M-C13
	Better World Claim	Designed for disassembly
	Better World Product	Yes
	Reset Actuator Type	Lever
	Application	Commercial, Industrial
	Special Features	Short Circuit Protection
	Terminal Contact Type	Screw

	Select all
	Brand ABB
	Number of Poles 1
	Current Rating 13A
	Tripping Characteristics Type C
	Rated AC Voltage 230V
	Rated DC Voltage 72V
	Breaking Capacity at Maximum Voltage Rating 15 kA
	Range System Pro M Compact
	Series S200M
	Circuit Breaker Type MCB
	Width 17.5mm
	Length 88mm
	Mounting Style DIN Rail Mount
	Depth 69mm
	Model Number S201M-C13
	Better World Claim Designed for disassembly
	Better World Product Yes
	Reset Actuator Type Lever
	Application Commercial, Industrial
	Special Features Short Circuit Protection
	Terminal Contact Type Screw
