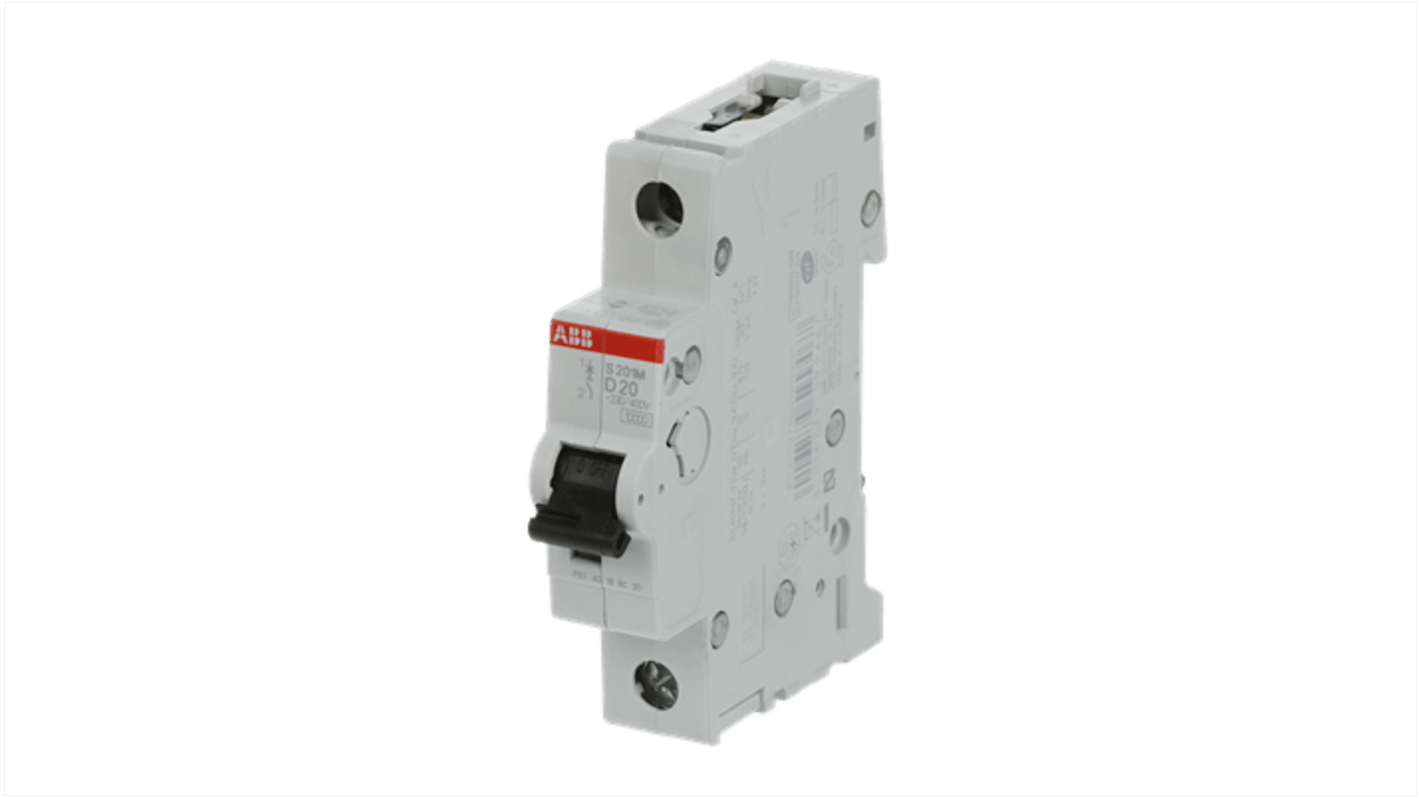

ABB System Pro M Compact S200M MCB, 1P, 20A Curve D, 230V AC, 72V DC, 15 kA Breaking Capacity

View all MCBs

Subtotal (1 unit)*

£20.21

(exc. VAT)

£24.25

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 17 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£20.21

*price indicative

RS Stock No.:
746-8144
Mfr. Part No.:
2CDS271001R0201 S201M-D20
Brand:
ABB
Find similar products by selecting one or more attributes.
Select all

Brand

ABB

Number of Poles

1

Current Rating

20A

Tripping Characteristics

Type D

Rated AC Voltage

230V

Rated DC Voltage

72V

Breaking Capacity at Maximum Voltage Rating

15 kA

Range

System Pro M Compact

Series

S200M

Circuit Breaker Type

MCB

Width

17.5mm

Length

88mm

Mounting Style

DIN Rail Mount

Depth

69mm

Model Number

S201M-D20

Reset Actuator Type

Lever

Application

Commercial, Industrial

Terminal Contact Type

Screw

Special Features

Short Circuit Protection

RoHS Status: Exempt

COO (Country of Origin):
DE

ABB S200M Series MCB, 20A Current Rating, 15kA Breaking Capacity (at Maximum Voltage Rating) - 2CDS271001R0201 S201M-D20


This miniature circuit breaker (MCB) offers essential electrical protection for commercial and industrial applications. It is engineered to rapidly disconnect electrical circuits during overloads or short circuits, ensuring safety and operational integrity. Its sturdy construction and advanced features play a significant role in protecting electrical installations from potential faults.

Features & Benefits


• 20 A current rating provides sufficient circuit protection
• Type D characteristics accommodate high inrush current tolerance
• Breaking capacity of 15kA at maximum voltage prevents circuit damage
• Thermal electromechanical operation enables quick fault detection
• Compact design optimises DIN rail space usage
• Short circuit protection reduces risks associated with electrical faults

Applications


• Protecting lighting circuits in commercial environments
• Supporting industrial machinery that requires effective circuit protection
• Commonly installed in control panels for automation systems
• Often used in distribution boards to enhance safety

What is the maximum voltage rating supported?


The maximum voltage rating supported is 230V.

Can this be installed in a residential electrical system?


While primarily intended for commercial and industrial use, it can be used in residential systems for specific applications.

What type of mounting is required for installation?


It requires mounting on a DIN rail for secure and organised installation.

How does it react to overload conditions?


It automatically interrupts the circuit when an overload condition is detected.

Is it suitable for high inrush current applications?


Yes, its Type D characteristics make it appropriate for high inrush conditions.


ABB System Pro M Single & Double Pole MCB's

Note

The Classic & System pro M product cannot be intermixed and do not share common accessories. System pro M products can only be fitted to new style Protecta distribution boards,see typically stock no. 539-1553.
