ABB System Pro M Compact System Pro M Compact Miniature Circuit Breaker, 1-Pole, 2A, Type C, 230V ac AC, 72 V dc DC, 6
- RS Stock No.:
- 746-7649
- Mfr. Part No.:
- 2CDS251001R0024 S201-C2
- Brand:
- ABB
Subtotal (1 unit)*
£17.26
(exc. VAT)
£20.71
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 107 unit(s) ready to ship
- Plus 33 unit(s) ready to ship from another location
- Plus 16 unit(s) shipping from 18 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £17.26 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 746-7649
- Mfr. Part No.:
- 2CDS251001R0024 S201-C2
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 1 | |
| Current Rating | 2A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 230V ac | |
| Rated DC Voltage | 72V dc | |
| Breaking Capacity | 6kA | |
| Mount Type | DIN Rail | |
| Range | System Pro M Compact | |
| Series | System Pro M Compact | |
| Terminal Type | Cage Terminal | |
| IP Rating | IP20, IP40 | |
| Width | 69mm | |
| Standards/Approvals | IEC/EN 60947-2, IEC/EN 60898-1 | |
| Height | 88mm | |
| Depth | 69mm | |
| Better World Product | Yes | |
| Better World Claim | Designed for Disassembly | |
| Tripping Mechanism | Thermal | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 1 | ||
Current Rating 2A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 230V ac | ||
Rated DC Voltage 72V dc | ||
Breaking Capacity 6kA | ||
Mount Type DIN Rail | ||
Range System Pro M Compact | ||
Series System Pro M Compact | ||
Terminal Type Cage Terminal | ||
IP Rating IP20, IP40 | ||
Width 69mm | ||
Standards/Approvals IEC/EN 60947-2, IEC/EN 60898-1 | ||
Height 88mm | ||
Depth 69mm | ||
Better World Product Yes | ||
Better World Claim Designed for Disassembly | ||
Tripping Mechanism Thermal | ||
- COO (Country of Origin):
- DE

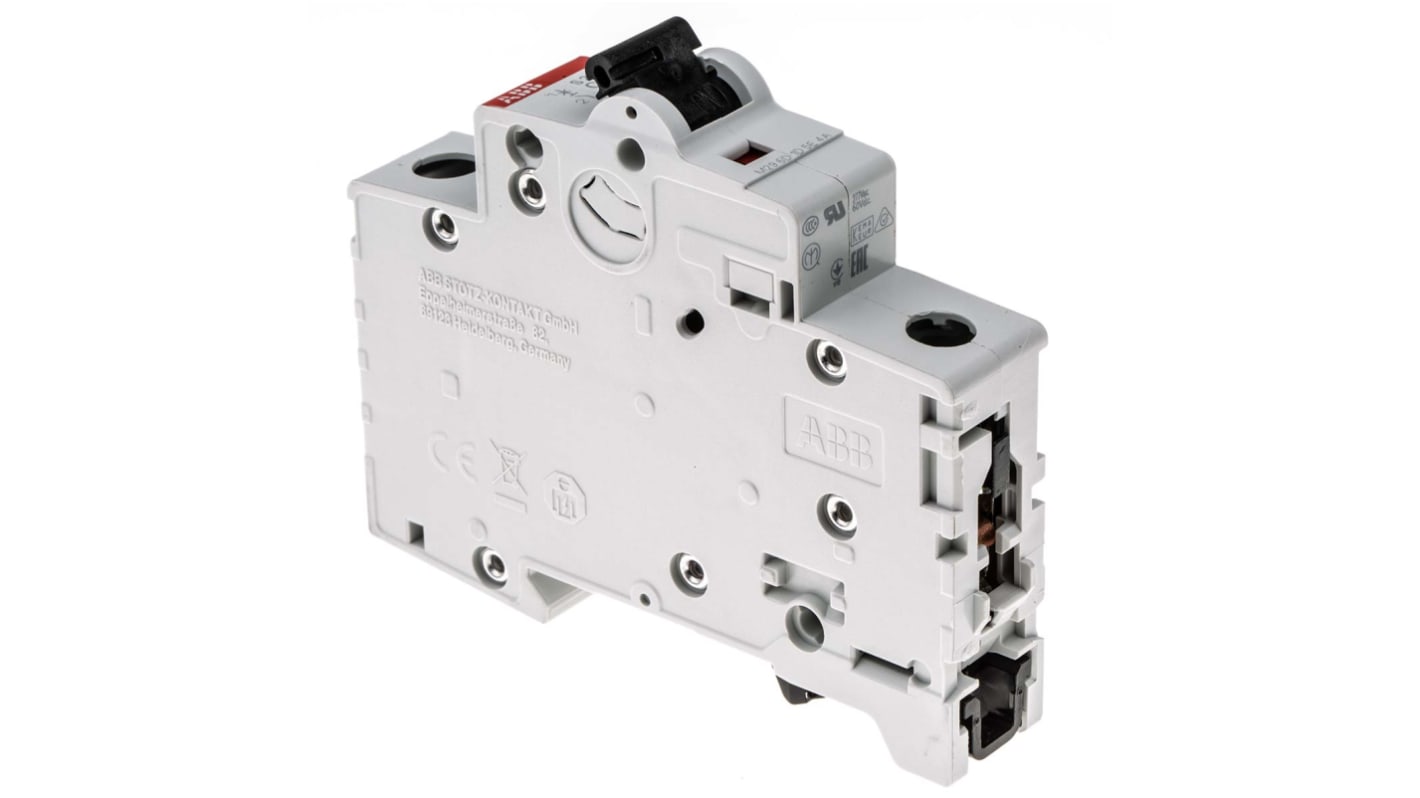

ABB 1-Pole MCB, 230V AC Voltage Rating, 6kA Breaking Capacity - S200 Series - 2CDS251001R0024 S201-C2
Use this MCB from ABB to protect your equipment from overload and short-circuit damage. The single-pole unit has thermal and electromagnetic mechanisms, so you can safeguard against both types of electric fault using one device. Contact position indicators on the toggle are coloured red and green, so you can instantly see whether the circuit is on or off. Use this device with lighting rings in commercial buildings or connect it to low-power industrial fans, pumps and compressors.
Features & Benefits
• Bottom-fixing auxiliary contact saves installation time
• Captive terminals prevent accidental loss of screws
• Recyclable and halogen-free thermoplastic housing to improve sustainability
Applications
• Fluorescent lighting circuits
• Fixed electric installations
• Industrial automation
What type of circuits is this MCB suitable for?
This MCB is rated for voltages in a range 12 to 253V AC and 12 to 72V DC, making it suitable for commercial and light-industrial systems. As it has a protection category of III with a type-C tripping characteristic, it's used to protect fixed electric installations that are prone to powerful surges.
