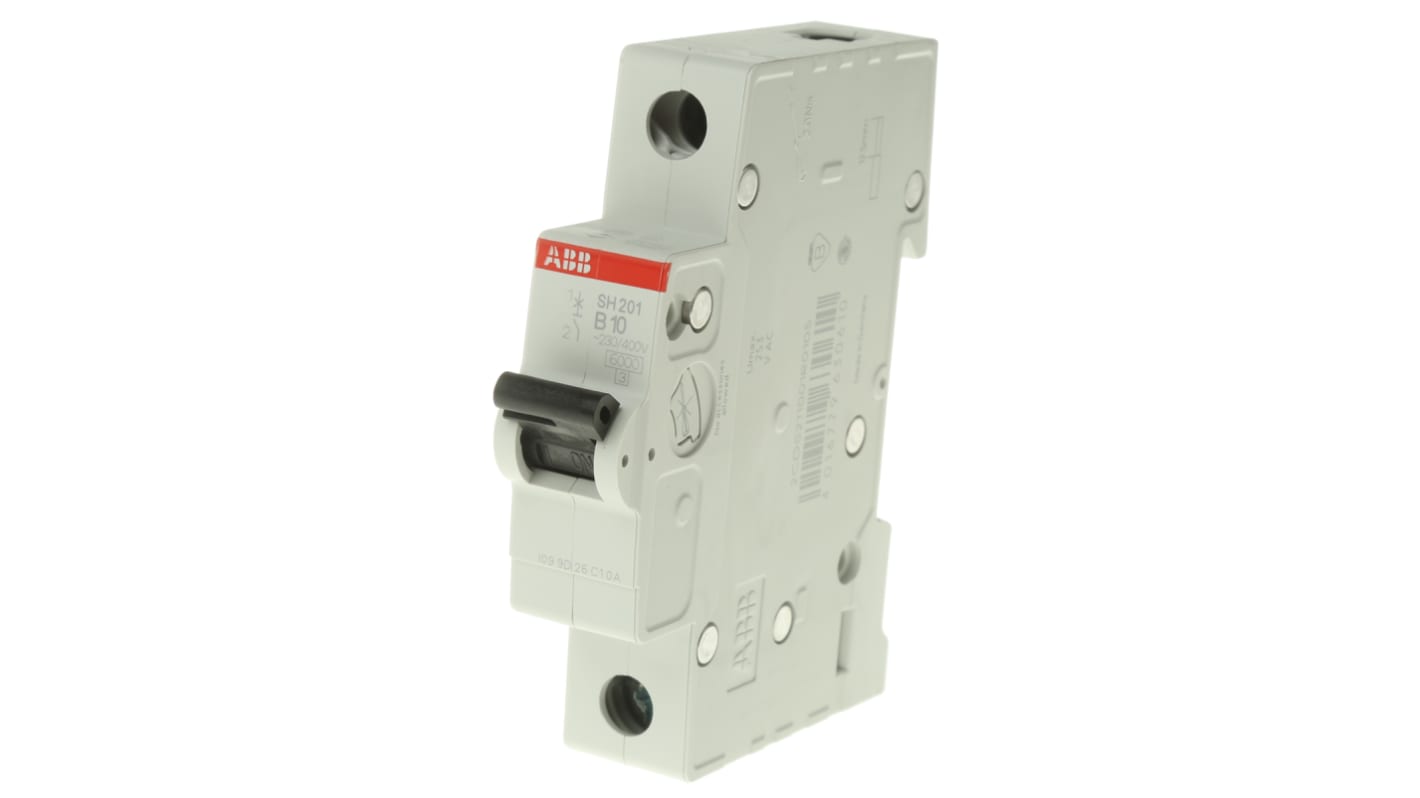

ABB ComPact Home SH200 Miniature Circuit Breaker, 1-Pole, 10A, Type B, 440V ac AC, 60 V dc DC, 6 kA Breaking Capacity

View all MCBs

Subtotal (1 unit)*

£14.75

(exc. VAT)

£17.70

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 29 unit(s) ready to ship
  • Plus 11 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£14.75

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:
539-8144
Mfr. Part No.:
2CDS211001R0105 SH201-B10
Brand:
ABB
Find similar products by selecting one or more attributes.
Select all

Brand

ABB

Number of Poles

1

Product Type

Miniature Circuit Breaker

Current Rating

10A

Tripping Characteristics

Type B

Rated AC Voltage

440V ac

Rated DC Voltage

60V dc

Mount Type

DIN Rail

Breaking Capacity

6kA

Range

ComPact Home

Series

SH200

Terminal Type

Cage Terminal

IP Rating

IP20

Height

85mm

Width

69mm

Standards/Approvals

IEC/EN 60898-1

Depth

69mm

Better World Product

Yes

Better World Claim

Designed for Disassembly

Reset Actuator Type

Toggle Switch

Tripping Mechanism

Electromagnetic, Thermomagnetic

COO (Country of Origin):
DE

ABB SH200 Series MCB, 1 Pole, 10A Current Rating - 2CDS211001R0105 SH201-B10


This miniature circuit breaker offers effective protection against overloads and short circuits, making it suitable for both residential and industrial contexts. Designed with efficiency in mind, it adheres to stringent performance standards. As part of the System M Pro range, it effectively tackles common electrical issues, ensuring safety and operational continuity across various applications.

Features & Benefits


• Current-limiting design enhances operational safety

• Dual tripping mechanisms provide comprehensive protection

• Complies with IEC/EN 60898-1 standards, ensuring quality

• Compact size allows installation in confined spaces

• Compatible with DIN rail mounting for easy installation

• Designed for disassembly to promote sustainability

Applications


• Protects lighting circuits in residential settings

• Ideal for distribution boards in small commercial environments

• Suitable for control panels in automation systems

• Enhances safety in home appliance circuits

• Applicable in electrical protection systems requiring flexible configurations

How does it handle short-circuit events?


It utilises an electromechanical tripping mechanism that activates during short-circuit conditions, ensuring immediate disconnection to safeguard the circuit.

Is it compatible with other circuit protection devices?


Yes, it can integrate with various circuit protection devices as part of a complete system.

What is the recommended operating temperature range?


The device functions effectively between -25°C and +55°C, making it suitable for a range of environments.

Can it be used in environments with high humidity?


While rated for certain conditions, it is advisable to take appropriate precautions in excessively humid environments to ensure reliability.

What is required for installation?


Basic tools are sufficient, as it is designed for simple DIN rail mounting with screw terminals for easy connections.

Standards

BS EN 60898
