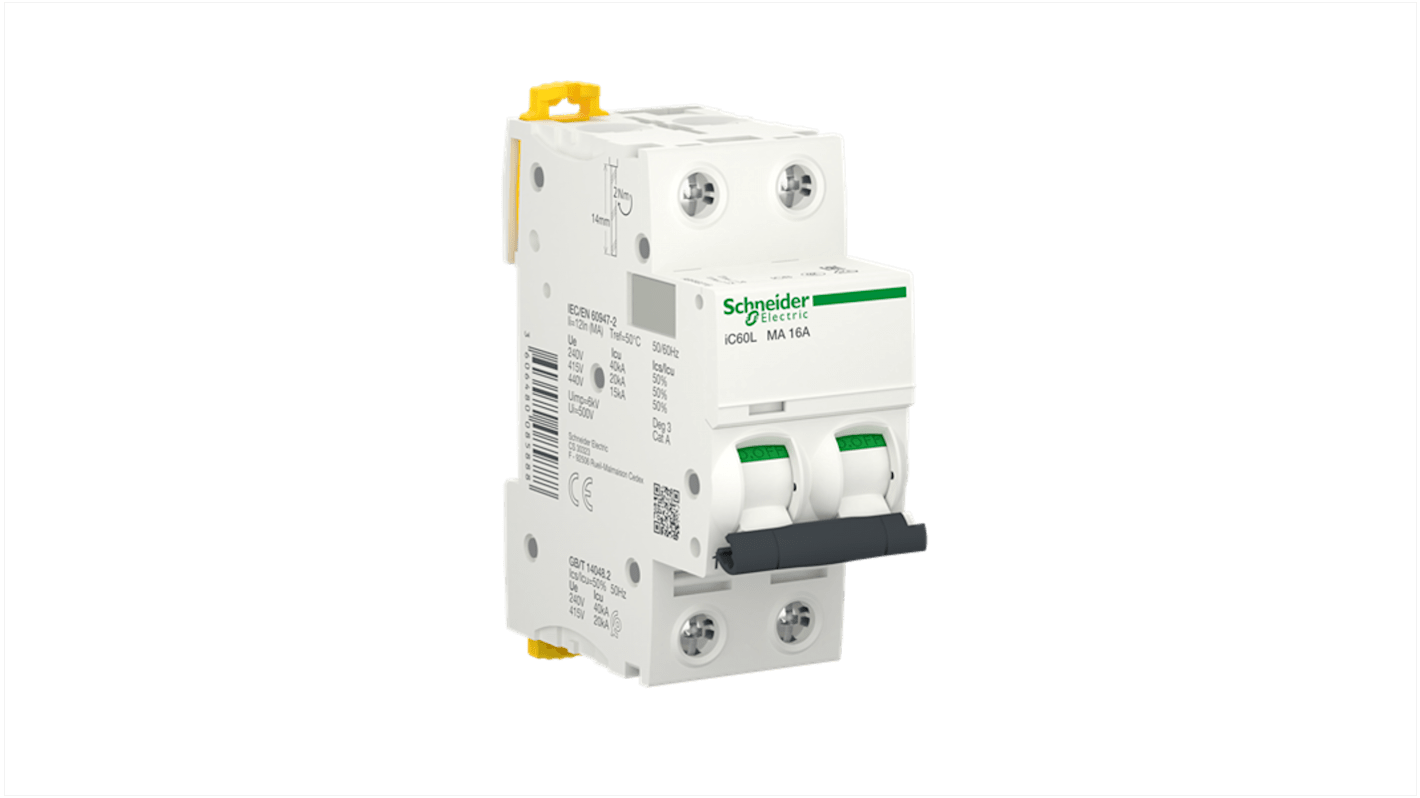

Schneider Electric Acti9 A9F Miniature Circuit Breaker, 2-Pole, 16 A, Type AC, 440 V ac AC, 40 kA Breaking Capacity
- RS Stock No.:
- 288-7078
- Mfr. Part No.:
- A9F90216
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£78.33
(exc. VAT)
£94.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 18 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £78.33 |
*price indicative
- RS Stock No.:
- 288-7078
- Mfr. Part No.:
- A9F90216
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 2 | |
| Current Rating | 16 A | |
| Tripping Characteristics | Type AC | |
| Rated AC Voltage | 440 V ac | |
| Mount Type | DIN Rail | |
| Breaking Capacity | 40kA | |
| Range | Acti9 | |
| Series | A9F | |
| Terminal Type | Single Terminal | |
| IP Rating | IP20 | |
| Height | 85mm | |
| Standards/Approvals | EN 60947-2, IEC 60947-2 | |
| Depth | 78.5mm | |
| Width | 36 mm | |
| Tripping Mechanism | Magnetic | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 2 | ||
Current Rating 16 A | ||
Tripping Characteristics Type AC | ||
Rated AC Voltage 440 V ac | ||
Mount Type DIN Rail | ||
Breaking Capacity 40kA | ||
Range Acti9 | ||
Series A9F | ||
Terminal Type Single Terminal | ||
IP Rating IP20 | ||
Height 85mm | ||
Standards/Approvals EN 60947-2, IEC 60947-2 | ||
Depth 78.5mm | ||
Width 36 mm | ||
Tripping Mechanism Magnetic | ||
- COO (Country of Origin):
- FR
The Schneider Electric Miniature circuit breaker is designed for motor applications with 2 poles and a 16A rated current. It offers a breaking capacity of up to 40kA and is suitable for isolation as well as magnetic tripping. With standards compliance and various safety features, this MCB ensures reliable protection for your electrical systems.
Magnetic tripping technology for reliable performance
Standards compliance ensures safe operation
Suitable for isolation and utilisation category A applications
Compact design with easy installation on DIN rail
