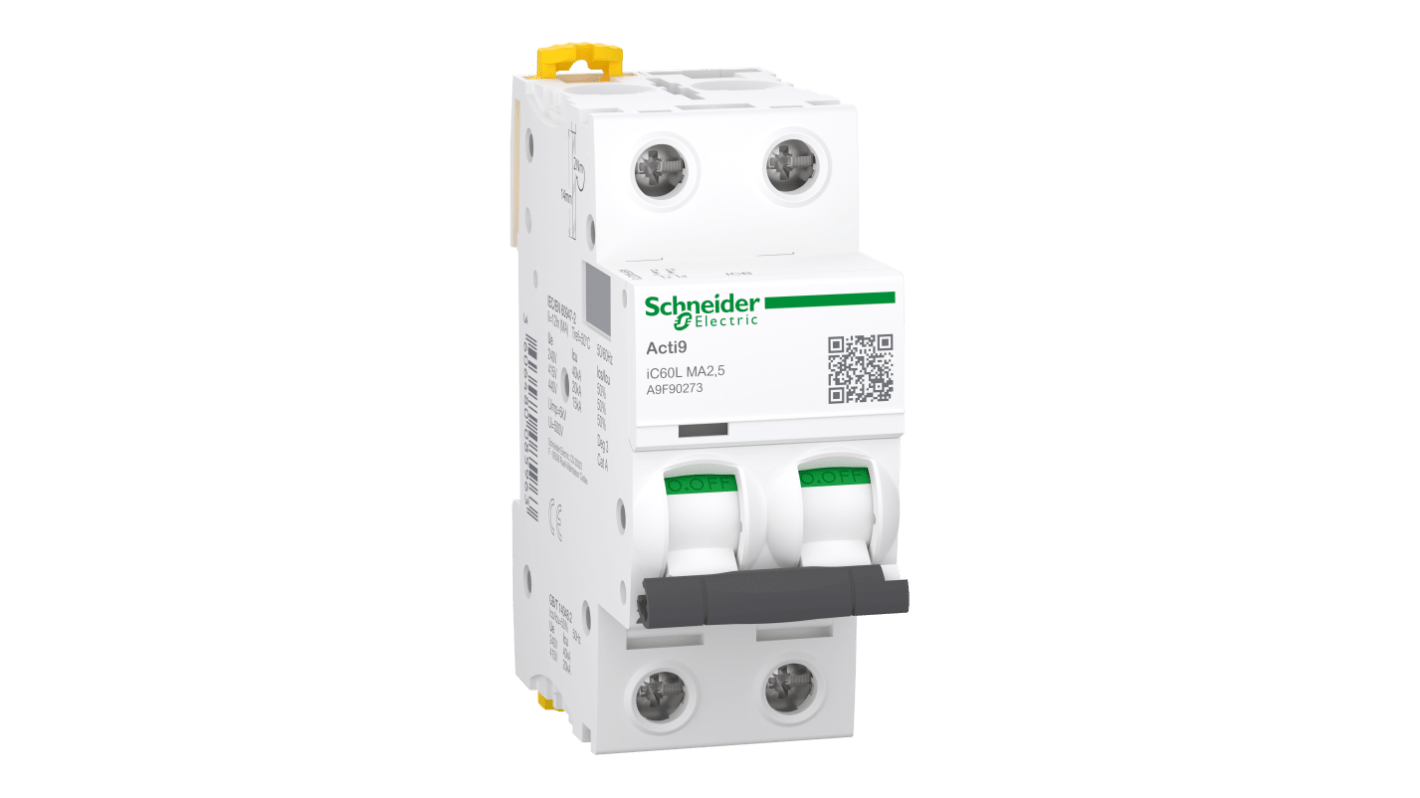

Schneider Electric Acti9 Acti9 Moteur Miniature Circuit Breaker, 2-Pole, 2.5A, Type AC, 440V ac AC, 40 kA Breaking
- RS Stock No.:
- 288-7079
- Mfr. Part No.:
- A9F90273
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£79.78
(exc. VAT)
£95.74
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £79.78 |
*price indicative
- RS Stock No.:
- 288-7079
- Mfr. Part No.:
- A9F90273
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Number of Poles | 2 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 2.5A | |
| Tripping Characteristics | Type AC | |
| Rated AC Voltage | 440V ac | |
| Mount Type | DIN Rail | |
| Breaking Capacity | 40kA | |
| Range | Acti9 | |
| Series | Acti9 Moteur | |
| Terminal Type | Single Terminal | |
| IP Rating | IP20 | |
| Width | 36mm | |
| Height | 85mm | |
| Standards/Approvals | IEC 60947-2, EN 60947-2 | |
| Depth | 78.5mm | |
| Tripping Mechanism | Magnetic | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Number of Poles 2 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 2.5A | ||
Tripping Characteristics Type AC | ||
Rated AC Voltage 440V ac | ||
Mount Type DIN Rail | ||
Breaking Capacity 40kA | ||
Range Acti9 | ||
Series Acti9 Moteur | ||
Terminal Type Single Terminal | ||
IP Rating IP20 | ||
Width 36mm | ||
Height 85mm | ||
Standards/Approvals IEC 60947-2, EN 60947-2 | ||
Depth 78.5mm | ||
Tripping Mechanism Magnetic | ||
- COO (Country of Origin):
- FR
The Schneider Electric Miniature circuit breaker designed for motor applications. With a compact design, magnetic trip unit technology, and high breaking capacity, this circuit breaker ensures reliable protection for your electrical circuits.
2P poles description for protecting 2 poles simultaneously
2.5A rated current for efficient power management
Magnetic trip unit technology for quick circuit protection
15 KA breaking capacity for enhanced safety
Suitable for isolation according to EN and IEC standards
Multiple service breaking capacities for versatile applications
Mounting support on DIN rail for easy installation
