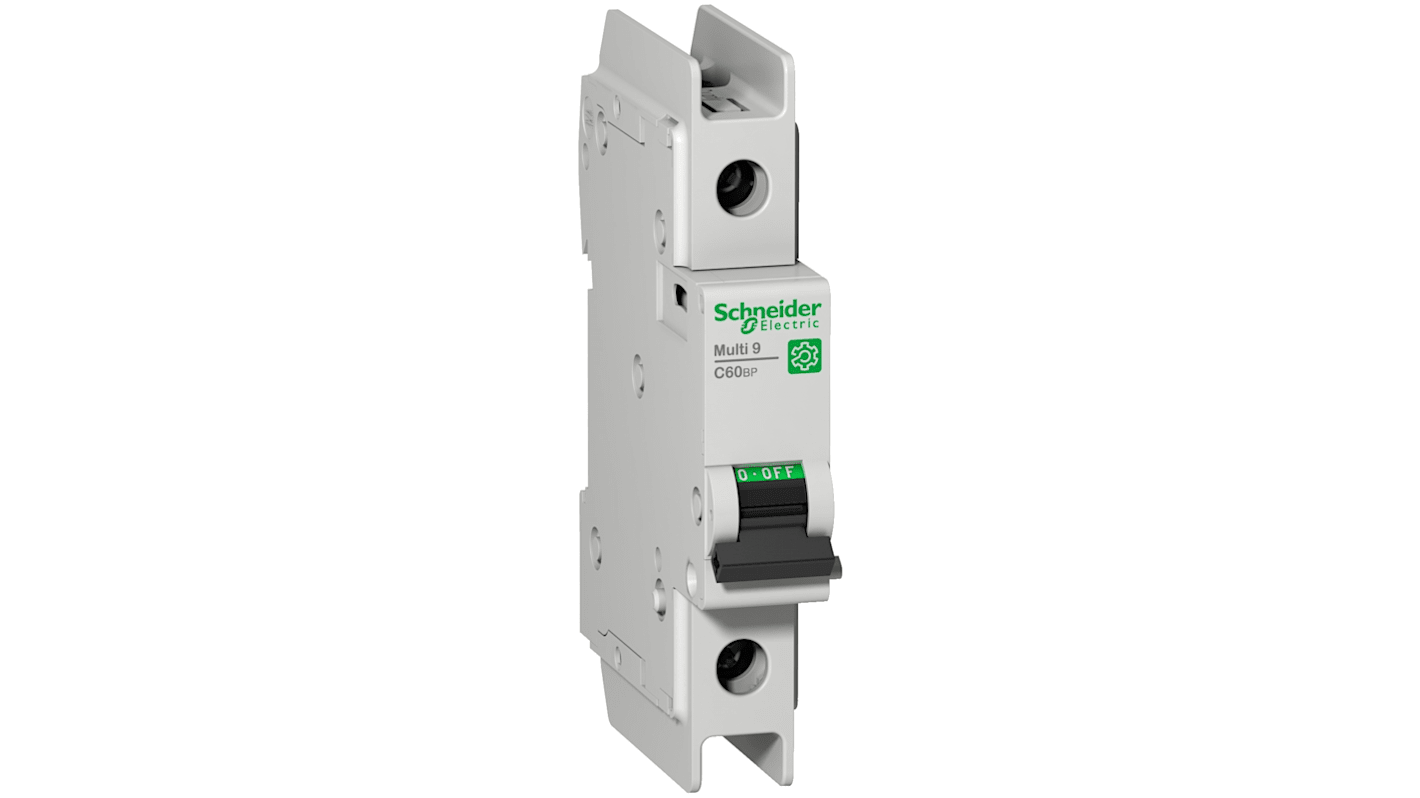

Schneider Electric Multi9 Multi9 Miniature Circuit Breaker, 1-Pole, 15A, Type Z, 240V ac AC, 60 V dc DC, 14 kA Breaking
- RS Stock No.:
- 288-1401
- Mfr. Part No.:
- M9F44115
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£146.35
(exc. VAT)
£175.62
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £146.35 |
*price indicative
- RS Stock No.:
- 288-1401
- Mfr. Part No.:
- M9F44115
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 1 | |
| Current Rating | 15A | |
| Tripping Characteristics | Type Z | |
| Rated AC Voltage | 240V ac | |
| Rated DC Voltage | 60V dc | |
| Breaking Capacity | 14kA | |
| Range | Multi9 | |
| Series | Multi9 | |
| Terminal Type | Tunnel | |
| IP Rating | IP40, IP20 | |
| Width | 18mm | |
| Height | 103mm | |
| Depth | 72mm | |
| Standards/Approvals | UL 489, GB 14048.2, EN/IEC 60947-2, CSA C22.2 No 5 | |
| Tripping Mechanism | Thermal Magnetic | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 1 | ||
Current Rating 15A | ||
Tripping Characteristics Type Z | ||
Rated AC Voltage 240V ac | ||
Rated DC Voltage 60V dc | ||
Breaking Capacity 14kA | ||
Range Multi9 | ||
Series Multi9 | ||
Terminal Type Tunnel | ||
IP Rating IP40, IP20 | ||
Width 18mm | ||
Height 103mm | ||
Depth 72mm | ||
Standards/Approvals UL 489, GB 14048.2, EN/IEC 60947-2, CSA C22.2 No 5 | ||
Tripping Mechanism Thermal Magnetic | ||
- COO (Country of Origin):
- FR
The Schneider Electric miniature circuit breaker is designed for distribution applications. With a compact design and a Z curve thermal magnetic trip unit technology, this MCB offers reliable protection for electrical circuits. It boasts a breaking capacity of up to 14kA (UL489), making it suitable for a wide range of installations.
Compact design for easy installation in distribution panels
Z curve Thermal Magnetic trip unit technology for reliable protection
Toggle control type with ON/OFF indication for easy operation
Clip on mounting mode with DIN rail support for convenient installation
