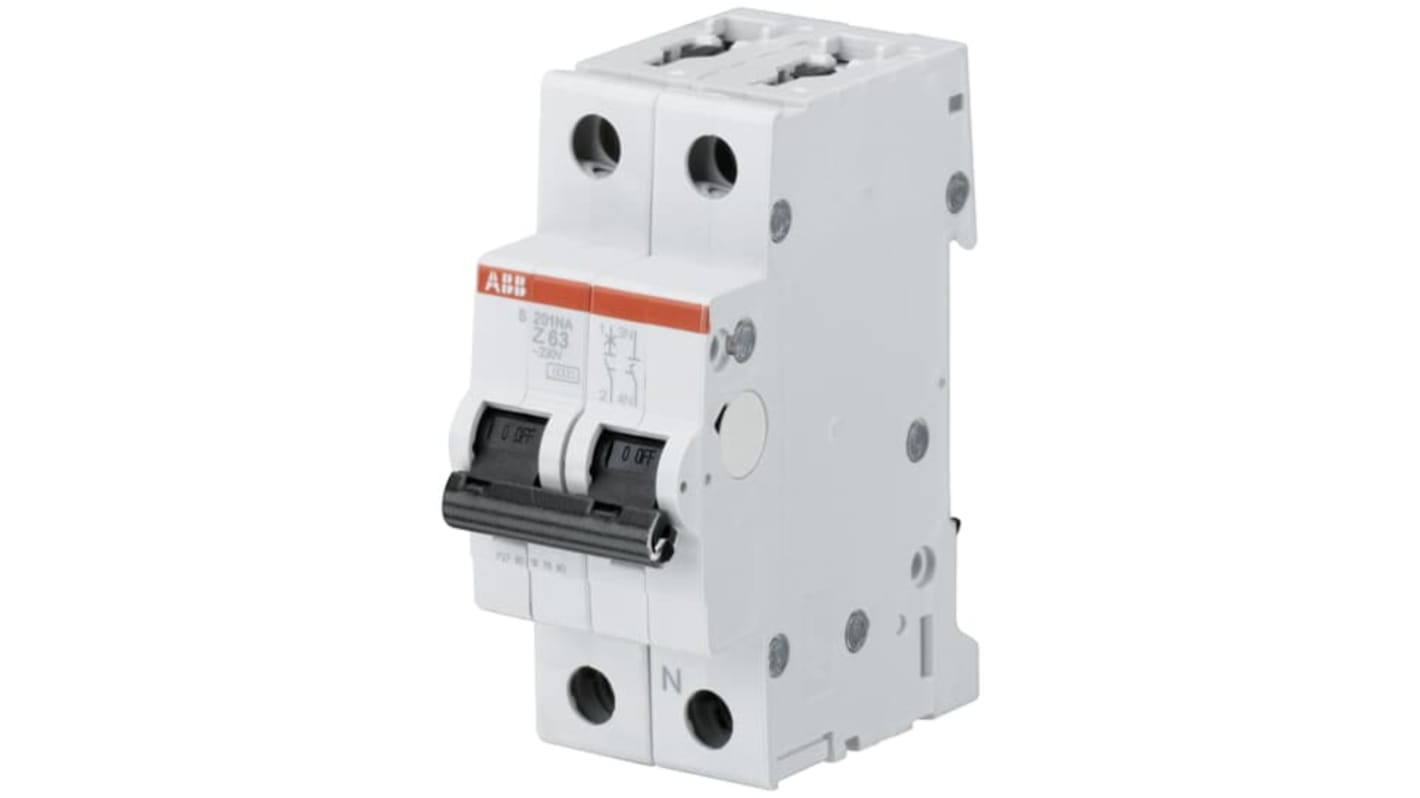

ABB System Pro M Compact S200 Miniature Circuit Breaker, 1-Pole, 500mA, Type Z, 400V ac AC, 6 kA Breaking Capacity
- RS Stock No.:
- 237-3197
- Mfr. Part No.:
- 2CDS251103R0158
- Brand:
- ABB
Subtotal (1 unit)*
£70.94
(exc. VAT)
£85.13
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 15 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £70.94 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 237-3197
- Mfr. Part No.:
- 2CDS251103R0158
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Number of Poles | 1 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 500mA | |
| Tripping Characteristics | Type Z | |
| Rated AC Voltage | 400V ac | |
| Breaking Capacity | 6kA | |
| Mount Type | DIN Rail | |
| Range | System Pro M Compact | |
| Series | S200 | |
| Terminal Type | Cage Terminal | |
| IP Rating | IP20, IP40 | |
| Depth | 69mm | |
| Height | 88mm | |
| Width | 35mm | |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2 | |
| Better World Claim | Designed for Disassembly | |
| Better World Product | Yes | |
| Tripping Mechanism | Thermomagnetic, Electromagnetic | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Number of Poles 1 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 500mA | ||
Tripping Characteristics Type Z | ||
Rated AC Voltage 400V ac | ||
Breaking Capacity 6kA | ||
Mount Type DIN Rail | ||
Range System Pro M Compact | ||
Series S200 | ||
Terminal Type Cage Terminal | ||
IP Rating IP20, IP40 | ||
Depth 69mm | ||
Height 88mm | ||
Width 35mm | ||
Standards/Approvals IEC/EN 60898-1, IEC/EN 60947-2 | ||
Better World Claim Designed for Disassembly | ||
Better World Product Yes | ||
Tripping Mechanism Thermomagnetic, Electromagnetic | ||
- COO (Country of Origin):
- DE
ABB S200 Series MCB, 500mA Current Rating, 10kA Breaking Capacity - 2CDS251103R0158
This MCB is a Compact and efficient miniature circuit breaker designed for commercial and residential applications. It features a 1+N pole configuration and operates at a current rating of 500 mA, ensuring robust protection against overloads and short circuits. With dimensions of 35mm in width and 69mm in length, this DIN rail mount breaker easily integrates into most electrical installations, providing effective circuit management.
Features & Benefits
• Offers Type Z tripping characteristics for precise protection
• Ensures overload protection with thermal tripping technology
• High breaking capacity of up to 10kA for enhanced safety
• Supports both commercial and residential applications with reliability
• Easily mountable on DIN rails for hassle-free installation
• Utilises screw Terminal contact type for secure connections
• Ensures overload protection with thermal tripping technology
• High breaking capacity of up to 10kA for enhanced safety
• Supports both commercial and residential applications with reliability
• Easily mountable on DIN rails for hassle-free installation
• Utilises screw Terminal contact type for secure connections
Applications
• Ideal for use in residential electrical panels
• Suitable for commercial wiring systems for reliable circuit protection
• Employed in automation systems requiring thermal and electromechanical protection
• Used with lighting circuits to prevent overload incidents
• Suitable for commercial wiring systems for reliable circuit protection
• Employed in automation systems requiring thermal and electromechanical protection
• Used with lighting circuits to prevent overload incidents
What are the key benefits of the thermal tripping mechanism?
The thermal tripping mechanism provides reliable overload protection by sensing temperature increases caused by excessive current flow. This ensures that the circuit is interrupted before damage occurs to electrical components, thereby enhancing overall safety.
How does the MCB's breaking capacity support different systems?
With a breaking capacity of 10kA, the MCB can handle high fault currents effectively, making it suitable for both low and high-demand electrical systems. This Ability reduces the risk of fires and damages in environments requiring robust circuit protection.
What type of environments can this product operate in safely?
This product is designed to function in a wide range of environments, with operational temperatures spanning from -25°C to +55°C. It is suitable for both indoor and outdoor applications when correctly housed, maintaining reliability under varying conditions.
How does the DIN rail mounting benefit installation?
The DIN rail mounting style simplifies installation by allowing quick and secure placement within electrical cabinets. This feature contributes to organised wiring while ensuring ease of access for maintenance and inspections.
