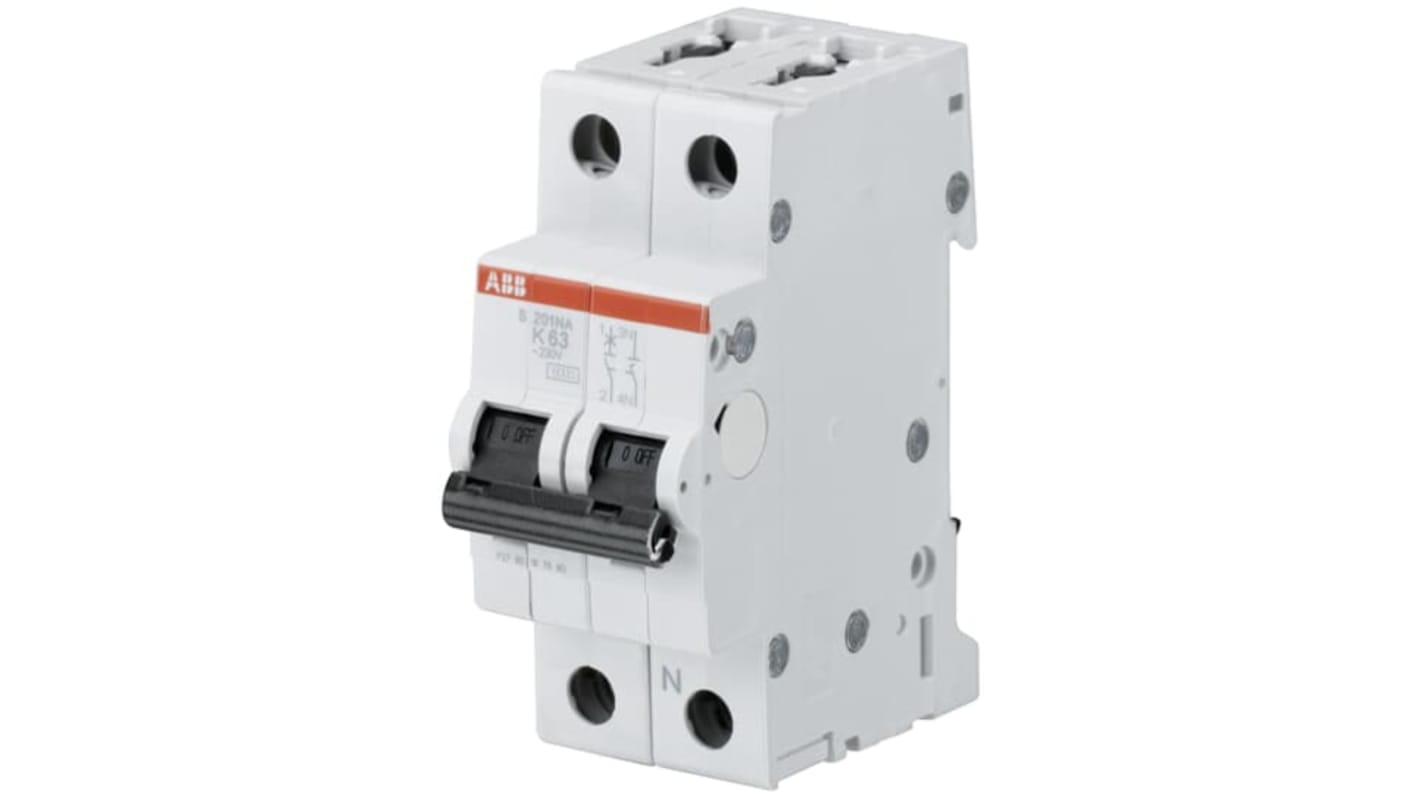

ABB System Pro M Compact S200 Miniature Circuit Breaker, 1-Pole, 500mA, Type K, 400V ac AC, 6 kA Breaking Capacity

View all MCBs

Subtotal (1 unit)*

£68.35

(exc. VAT)

£82.02

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later
Units
Per unit
1 +£68.35

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:
237-3196
Mfr. Part No.:
2CDS251103R0157
Brand:
ABB
Find similar products by selecting one or more attributes.
Select all

Brand

ABB

Number of Poles

1

Product Type

Miniature Circuit Breaker

Current Rating

500mA

Tripping Characteristics

Type K

Rated AC Voltage

400V ac

Mount Type

DIN Rail

Breaking Capacity

6kA

Range

System Pro M Compact

Series

S200

Terminal Type

Cage Terminal

IP Rating

IP20, IP40

Depth

69mm

Height

88mm

Standards/Approvals

IEC/EN 60898-1, IEC/EN 60947-2

Width

35mm

Better World Claim

Designed for Disassembly

Better World Product

Yes

Tripping Mechanism

Electromagnetic, Thermomagnetic

COO (Country of Origin):
DE

ABB S200 Series MCB, 1+N Poles, 500mA Current Rating - 2CDS251103R0157


This miniature circuit breaker (MCB) is designed to offer reliable protection for both commercial and residential applications. With a pole configuration of 1+N, it ensures effective overload and short circuit protection. The unit measures 35mm in width and 69mm in depth, making it Ideal for use in standard DIN rail mounting systems. Its rated current stands at 500 mA, accommodating a wide range of electrical needs.

Features & Benefits


• Current limiting design enhances circuit protection standards
• Features thermal and electromechanical tripping mechanisms
• High breaking capacity of 10kA for maximum safety
• Compact 1+N configuration saves valuable installation space
• Designed for easy installation on standard DIN rails
• Compliance with IEC and BS standards ensures reliability

Applications


• Used for overload protection in domestic electrical systems
• Ideal for short circuit protection in commercial installations
• Suitable for diverse in the automation industry
• Designed for compatibility with various circuit configurations
• Utilised in environments requiring strict adherence to safety standards

What are the tripping characteristics that enhance its performance?


The tripping characteristics include a type K mechanism, enabling tailored response to overloads for efficient protection while maintaining system integrity under various load conditions.

How does the Compact design contribute to usability in installations?


The Compact size minimises space requirements on the DIN rail, allowing for more efficient use of panel space and easier access during installation or maintenance.

What specifications ensure this product's reliability in various applications?


Its rated short-circuit capacity of 10kA and compliance with international standards like IEC/EN 60898-1 ensure it can handle significant fault currents and maintain operational integrity across various load scenarios.
