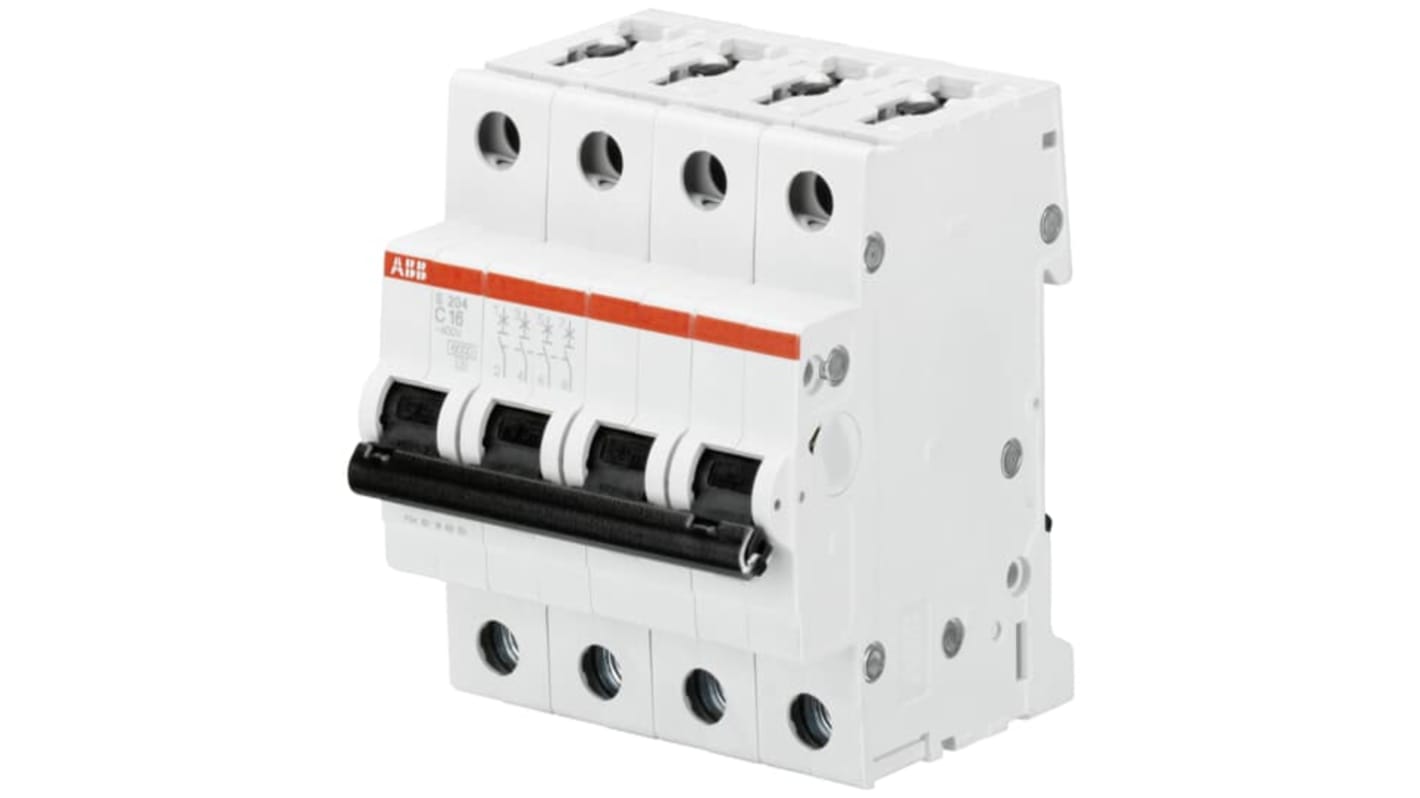

ABB System Pro M Compact S200 Miniature Circuit Breaker, 4-Pole, 500 mA, Type C, 400 V ac AC, 6 kA Breaking Capacity

View all MCBs

Subtotal (1 unit)*

£124.47

(exc. VAT)

£149.36

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 19 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£124.47

*price indicative

RS Stock No.:
237-3334
Mfr. Part No.:
2CDS254001R0984 S204 C 0.5A - 10 KA
Brand:
ABB
Find similar products by selecting one or more attributes.
Select all

Brand

ABB

Product Type

Miniature Circuit Breaker

Number of Poles

4

Current Rating

500 mA

Tripping Characteristics

Type C

Rated AC Voltage

400 V ac

Mount Type

DIN Rail

Breaking Capacity

6kA

Range

System Pro M Compact

Series

S200

Terminal Type

Screw

IP Rating

IP20

Width

70 mm

Height

88mm

Standards/Approvals

IEC/EN 60898-1, UL1077, IEC/EN 60947-2

Depth

69mm

Tripping Mechanism

Electromechanic, Anaerobic Adhesive

COO (Country of Origin):
DE
The ABB system pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electro mechanic tripping mechanism for short circuit protection. They are available in different characteristics Z, configurations 4P, breaking capacities (up to 6 kA at 230/400 V AC) and rated currents 0.5A.

All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077

Degree of Protection IP20

Ambient Air Temperature : Operation -25 ... +55 °C, Storage -40 ... +70 °C
