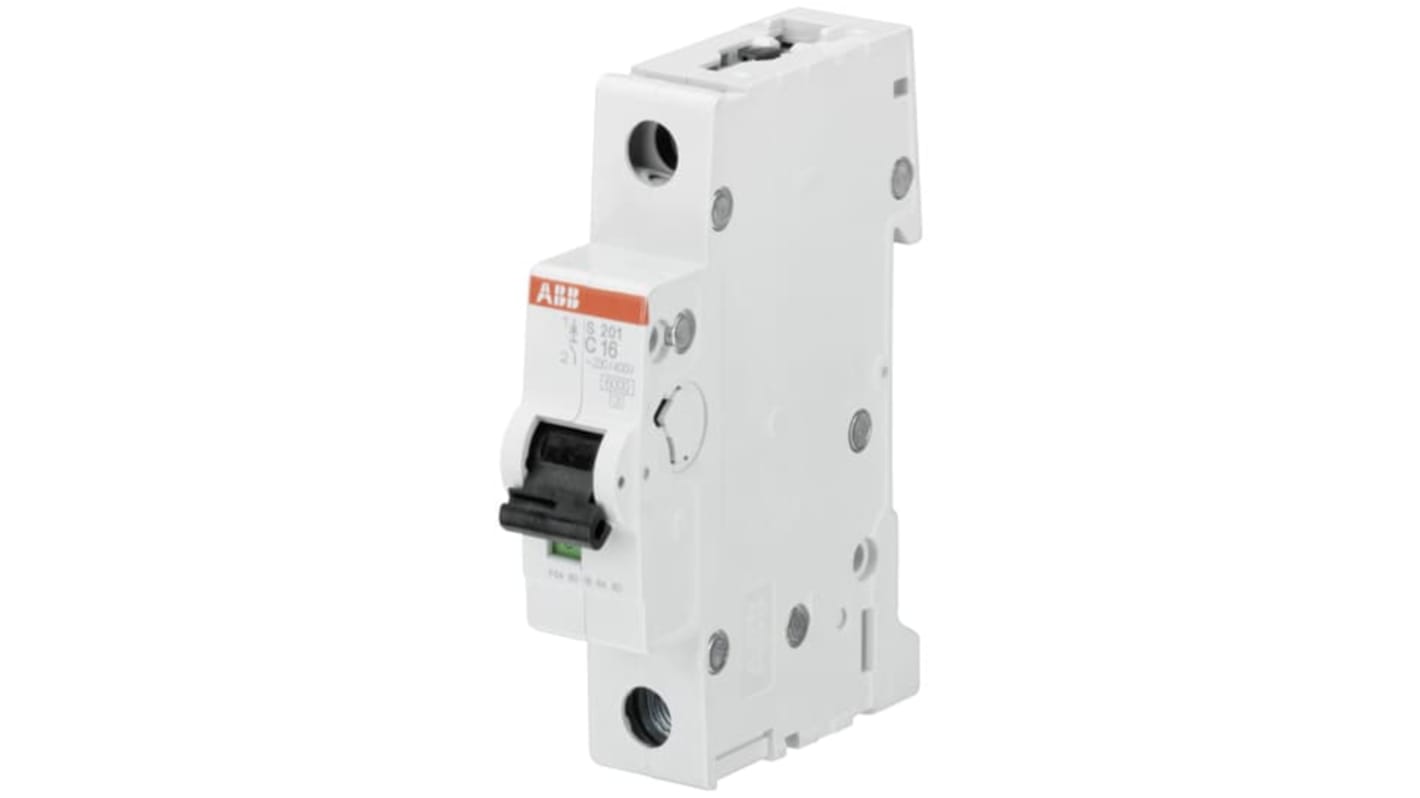

ABB System Pro M Compact S200 Miniature Circuit Breaker, 1-Pole, 500mA, Type C, 253V ac AC, 72 V dc DC, 20 kA Breaking

RS Stock No.:: 231-9670
Mfr. Part No.:: 2CDS251001R0984 S201 C 0.5A - 10 KA
Brand:: ABB

ABB System Pro M Compact S200 Miniature Circuit Breaker, 1-Pole, 500mA, Type C, 253V ac AC, 72 V dc DC, 20 kA Breaking

View all MCBs

Subtotal (1 unit, in boxes of 1)*

£17.26

(exc. VAT)

£20.71

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

31 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Box(es)	Per Box
1 +	£17.26

*price indicative

Our Better World range features products that make it easy for you to make a greener product choice you can trust.

Learn more about RS Better World products

RS Stock No.:: 231-9670
Mfr. Part No.:: 2CDS251001R0984 S201 C 0.5A - 10 KA
Brand:: ABB

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	ABB
	Number of Poles	1
	Product Type	Miniature Circuit Breaker
	Current Rating	500mA
	Tripping Characteristics	Type C
	Rated AC Voltage	253V ac
	Rated DC Voltage	72V dc
	Breaking Capacity	20kA
	Mount Type	DIN Rail
	Range	System Pro M Compact
	Series	S200
	Terminal Type	Screw Clamp
	IP Rating	IP20, IP40
	Width	17.5mm
	Height	69mm
	Depth	69mm
	Standards/Approvals	IEC/EN 60898-1, IEC/EN 60947-2
	Better World Product	Yes
	Better World Claim	Designed for Disassembly
	Tripping Mechanism	Electromagnetic, Thermomagnetic
	Reset Actuator Type	Toggle Switch

	Select all
	Brand ABB
	Number of Poles 1
	Product Type Miniature Circuit Breaker
	Current Rating 500mA
	Tripping Characteristics Type C
	Rated AC Voltage 253V ac
	Rated DC Voltage 72V dc
	Breaking Capacity 20kA
	Mount Type DIN Rail
	Range System Pro M Compact
	Series S200
	Terminal Type Screw Clamp
	IP Rating IP20, IP40
	Width 17.5mm
	Height 69mm
	Depth 69mm
	Standards/Approvals IEC/EN 60898-1, IEC/EN 60947-2
	Better World Product Yes
	Better World Claim Designed for Disassembly
	Tripping Mechanism Electromagnetic, Thermomagnetic
	Reset Actuator Type Toggle Switch

COO (Country of Origin):: DE

ABB S200 Series MCB, 1 Pole, 500mA Current Rating - 2CDS251001R0984 S201 C 0.5A - 10 KA

This miniature circuit breaker (MCB) provides effective overcurrent protection for electrical systems. With a current rating of 500mA and Type C characteristics, it manages inrush currents efficiently while ensuring optimal performance. The ABB S201 C model is a compact solution for various applications, enhancing safety and efficiency in electrical installations.

Features & Benefits

• Designed for disassembly, supporting eco-friendly practices

• Type C circuit breaker suitable for motor protection

• 10kA rated circuit breaker for increased safety

• Facilitates straightforward installation on DIN rail systems

• Part of the System Pro M Compact range, ensuring compatibility

• S200 series breaker offers durability and a long lifespan

Applications

• Suitable for residential, commercial, and industrial installations

• Protects lighting circuits and small motors

• Ideal for integration in automation and control systems

• Applicable in new constructions and renovation projects

How is the MCB mounted?

The device mounts easily on standard DIN rails for simple installation.

What happens if the circuit is overloaded?

The MCB will automatically trip, disconnecting the circuit to prevent damage.

Can this MCB be used in outdoor applications?

It is designed for indoor electrical installations and should not be subjected to outdoor conditions.

Is it compatible with all electrical systems?

Yes, this MCB is compatible with standard electrical systems, provided the specifications match.

How can I reset the MCB after it trips?

Resetting the MCB is straightforward; just move the lever back to the 'ON' position after addressing the cause of the trip.
