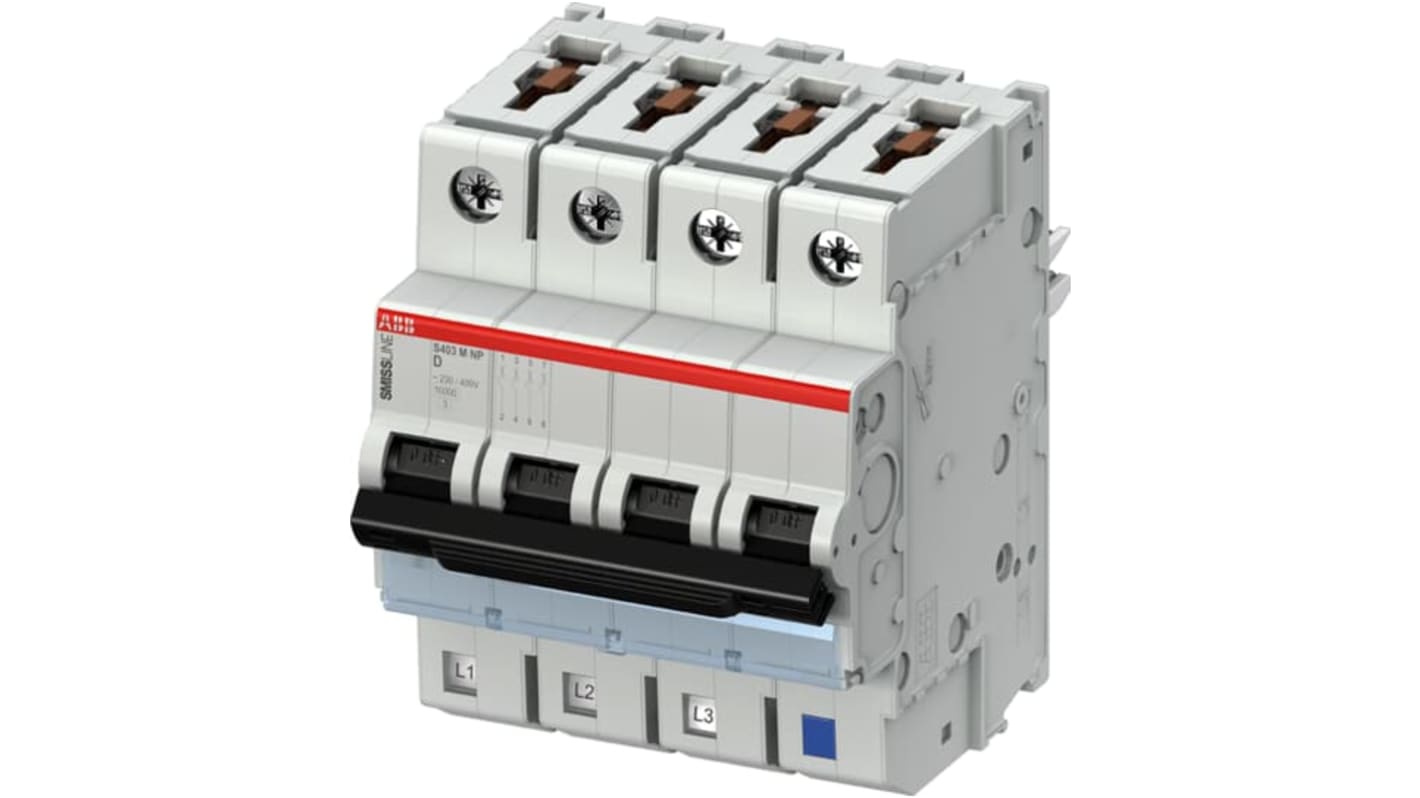

ABB SMISSLINE TP S400M MCB, 4P, 40A Curve D, 12V AC
- RS Stock No.:
- 231-9565
- Mfr. Part No.:
- 2CCS573103R8401 S403M-D40NP
- Brand:
- ABB
Subtotal (1 box of 1 unit)*
£182.40
(exc. VAT)
£218.88
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 10 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box |
---|---|
1 + | £182.40 |
*price indicative
- RS Stock No.:
- 231-9565
- Mfr. Part No.:
- 2CCS573103R8401 S403M-D40NP
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ABB | |
Number of Poles | 4 | |
Current Rating | 40A | |
Tripping Characteristics | Type D | |
Rated AC Voltage | 12V | |
Range | SMISSLINE TP | |
Series | S400M | |
Circuit Breaker Type | MCB | |
Length | 91mm | |
Width | 72mm | |
Mounting Style | DIN Rail Mount | |
Depth | 75mm | |
Model Number | S403M-D40NP | |
Application | Commercial, Industrial | |
Reset Actuator Type | Toggle Switch | |
Terminal Contact Type | Screw | |
Select all | ||
---|---|---|
Brand ABB | ||
Number of Poles 4 | ||
Current Rating 40A | ||
Tripping Characteristics Type D | ||
Rated AC Voltage 12V | ||
Range SMISSLINE TP | ||
Series S400M | ||
Circuit Breaker Type MCB | ||
Length 91mm | ||
Width 72mm | ||
Mounting Style DIN Rail Mount | ||
Depth 75mm | ||
Model Number S403M-D40NP | ||
Application Commercial, Industrial | ||
Reset Actuator Type Toggle Switch | ||
Terminal Contact Type Screw | ||
- COO (Country of Origin):
- CH
ABB S400M Series MCB, 4 Poles, 40A Current Rating - 2CCS573103R8401 S403M-D40NP
This MCB is an essential element in electrical systems, specifically designed for effective circuit protection. Part of the SMISSLINE TP range, it proficiently manages different types of loads while ensuring safe operation. This device is well-suited for contemporary automation and mechanical environments where solid performance is necessary.
Features & Benefits
• Current rating of 40A for significant load management
• 4 poles designed to support intricate circuit configurations
• Type D tripping characteristics to handle high inrush currents
• DIN rail mount style for easy installation
• Part of the S400M series, confirming its suitability for demanding applications
• Meets strict circuit breaker standards for enhanced safety
• 4 poles designed to support intricate circuit configurations
• Type D tripping characteristics to handle high inrush currents
• DIN rail mount style for easy installation
• Part of the S400M series, confirming its suitability for demanding applications
• Meets strict circuit breaker standards for enhanced safety
Applications
• Utilised in industrial automation systems for efficient power management
• Suitable for electrical distribution boards needing dependable circuit interruption
• Commonly found in commercial environments to safeguard essential equipment
• Used in machinery and motor that require handling high inrush currents
• Suitable for electrical distribution boards needing dependable circuit interruption
• Commonly found in commercial environments to safeguard essential equipment
• Used in machinery and motor that require handling high inrush currents
What are the benefits of using this in a circuit?
It enhances safety by disconnecting power swiftly during overloads or short circuits.
How does installation impact its performance?
Proper installation on a DIN rail ensures optimal performance and reliability.
Can it be used with other manufacturers' equipment?
Yes, it is compatible with standardised equipment made to similar specifications.
What maintenance is required for optimal operation?
Regular visual inspections and ensuring tight electrical connections are recommended.
How does it handle high inrush currents?
The Type D characteristics enable it to endure temporary surges without tripping.
