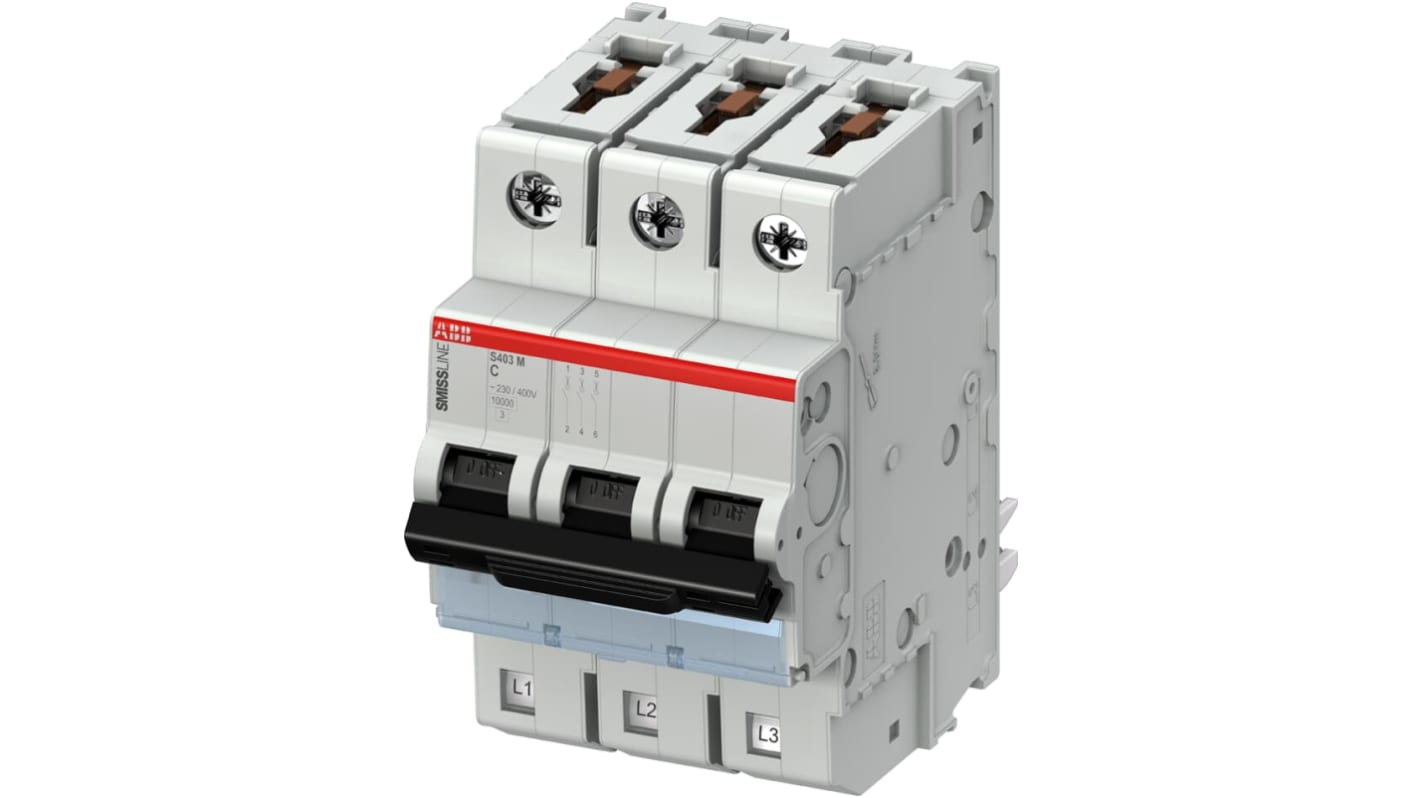

ABB SMISSLINE TP S400M MCB, 3P, 32A Curve C, 230V AC, 10 kA Breaking Capacity
- RS Stock No.:
- 177-046
- Mfr. Part No.:
- 2CCS573001R0324 S403M-C32
- Brand:
- ABB
Subtotal (1 unit)*
£111.51
(exc. VAT)
£133.81
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship from another location
- Plus 999,999,996 unit(s) shipping from 10 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £111.51 |
*price indicative
- RS Stock No.:
- 177-046
- Mfr. Part No.:
- 2CCS573001R0324 S403M-C32
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Number of Poles | 3 | |
| Current Rating | 32A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 230 V, 400V | |
| Breaking Capacity at Maximum Voltage Rating | 10 kA | |
| Range | SMISSLINE TP | |
| Series | S400M | |
| Circuit Breaker Type | MCB | |
| Width | 54mm | |
| Length | 91mm | |
| Mounting Style | DIN Rail Mount | |
| Depth | 82mm | |
| Model Number | S403M-C32 | |
| Special Features | Overload Protection, Thermal Tripping | |
| Reset Actuator Type | Toggle Switch | |
| Application | Commercial, Industrial | |
| Terminal Contact Type | Screw | |
Select all | ||
|---|---|---|
Brand ABB | ||
Number of Poles 3 | ||
Current Rating 32A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 230 V, 400V | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Range SMISSLINE TP | ||
Series S400M | ||
Circuit Breaker Type MCB | ||
Width 54mm | ||
Length 91mm | ||
Mounting Style DIN Rail Mount | ||
Depth 82mm | ||
Model Number S403M-C32 | ||
Special Features Overload Protection, Thermal Tripping | ||
Reset Actuator Type Toggle Switch | ||
Application Commercial, Industrial | ||
Terminal Contact Type Screw | ||
- COO (Country of Origin):
- CH
ABB S400M Series MCB, 3 Poles, 32A Current Rating - S403M-C32
This miniature circuit breaker is designed for reliable and efficient performance in industrial applications. With a robust construction and advanced tripping mechanisms, it ensures a high level of safety for electrical circuits. It provides vital overload and short-circuit protection, making it an essential component in critical power applications. The compact dimensions and versatile mounting options facilitate easy installation and integration into existing systems. As part of the S400M series, it adheres to stringent IEC/EN standards, offering compliance and environmental responsibility.
Features & Benefits
• Type C MCB ensures effective short circuit protection
• 10kA breaking capacity safely manages fault currents
• Features thermal electromechanical tripping for overload safety
• Designed for DIN rail mounting for easy installation
• Integrated screw terminal allows for secure connections
• 10kA breaking capacity safely manages fault currents
• Features thermal electromechanical tripping for overload safety
• Designed for DIN rail mounting for easy installation
• Integrated screw terminal allows for secure connections
Applications
• Ideal for critical power applications
• Used with commercial electrical installations
• Used with commercial electrical installations
Can it support multiple voltage levels?
Yes, it operates effectively at 230V and 400V.
What is the maximum current capacity of this circuit breaker?
It can handle a rated current of up to 32A.
