Select all	Attribute	Value
	Brand	ABB
	Product Type	Miniature Circuit Breaker
	Number of Poles	1
	Current Rating	63A
	Tripping Characteristics	Type C
	Rated AC Voltage	230V
	Rated DC Voltage	125V dc
	Breaking Capacity	36kA
	Mount Type	DIN Rail
	Range	High Performance
	Series	S800N
	Terminal Type	Screw
	IP Rating	IP20
	Height	95mm
	Depth	82.5mm
	Width	27mm
	Standards/Approvals	IEC/EN 60898-1, IEC/EN 60947-2
	Reset Actuator Type	Toggle Switch
	Tripping Mechanism	Electromagnetic, Thermomagnetic

	Select all
	Brand ABB
	Product Type Miniature Circuit Breaker
	Number of Poles 1
	Current Rating 63A
	Tripping Characteristics Type C
	Rated AC Voltage 230V
	Rated DC Voltage 125V dc
	Breaking Capacity 36kA
	Mount Type DIN Rail
	Range High Performance
	Series S800N
	Terminal Type Screw
	IP Rating IP20
	Height 95mm
	Depth 82.5mm
	Width 27mm
	Standards/Approvals IEC/EN 60898-1, IEC/EN 60947-2
	Reset Actuator Type Toggle Switch
	Tripping Mechanism Electromagnetic, Thermomagnetic

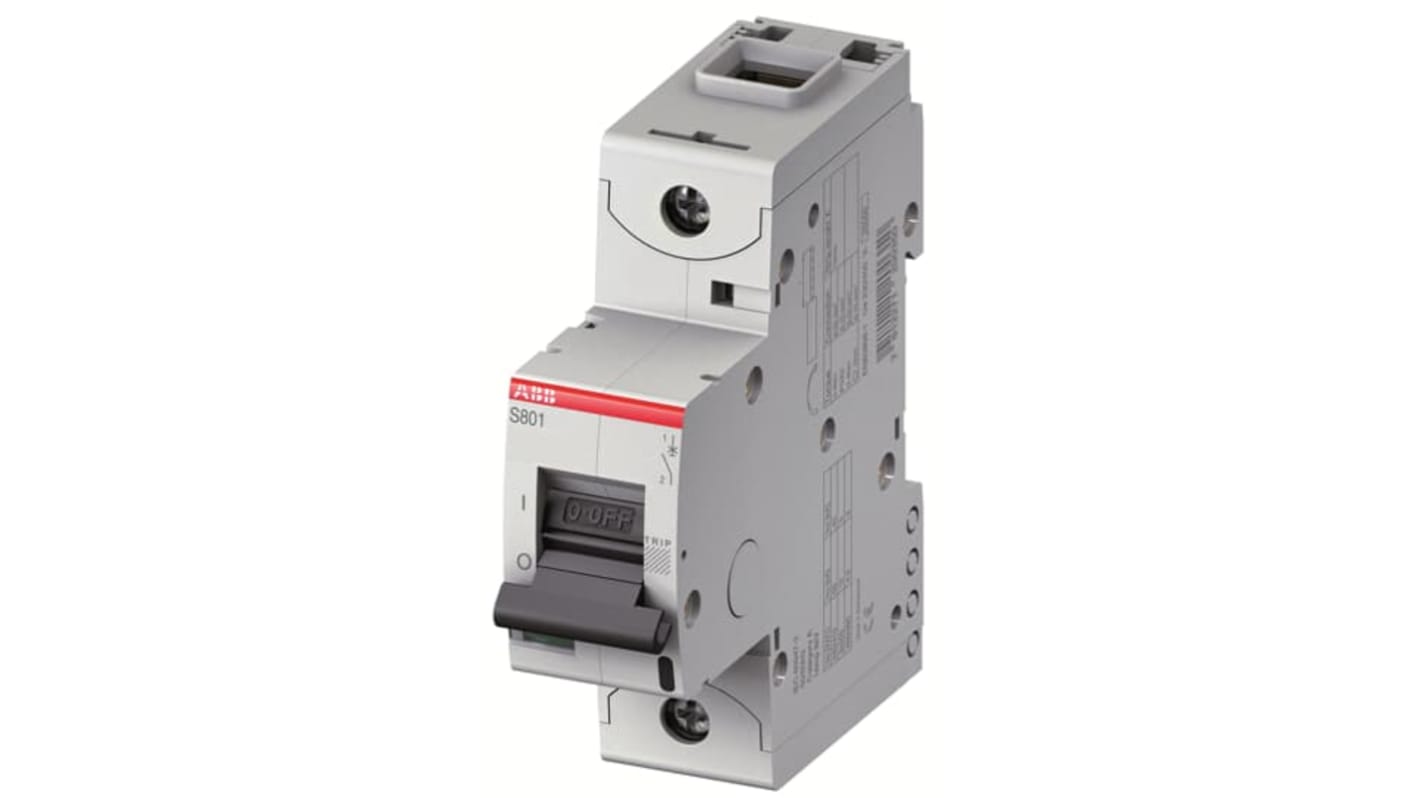

ABB S800N Series MCB, 63A Current Rating , 1 Pole - 2CCS891001R0634 S801N C 63A - 36 KA

This MCB is a high-performance circuit breaker designed for commercial and industrial applications. With its Compact dimensions of 27mm in width and 82.5mm in length, it easily integrates into DIN rail systems. This device is engineered to ensure efficient overload protection and features a tripping characteristic of Type C, making it suitable for demanding conditions.

Features & Benefits

• Offers a current rating of 63 A for reliable performance
• Designed with thermal tripping for added safety
• Capable of breaking capacity up to 36 kA at maximum voltage
• Toggle switch reset actuator allows for easy operation
• Features screw Terminal connections for secure wiring
• Compact design optimises space in electrical panels

Applications

• Used for protecting electrical circuits in commercial buildings
• Suitable for industrial environments requiring robust protection
• Ideal for installations needing Type C characteristics
• Employs overload protection in critical systems

What type of voltage ratings can this device handle?

It operates efficiently at rated AC voltages of 230V and 400V, accommodating various electrical systems.

How does the thermal tripping mechanism enhance safety?

The thermal tripping feature ensures that the circuit breaker disconnects in the event of an overload, protecting connected equipment from damage.

In what scenarios would a Type C characteristic be advantageous?

Type C characteristics are beneficial in applications with high inrush currents, such as motors or transformers, providing reliable circuit protection without nuisance tripping.

ABB High Performance S800N Miniature Circuit Breaker, 1-Pole, 63A, Type C, 230V AC, 125 V dc DC, 36 kA Breaking Capacity
